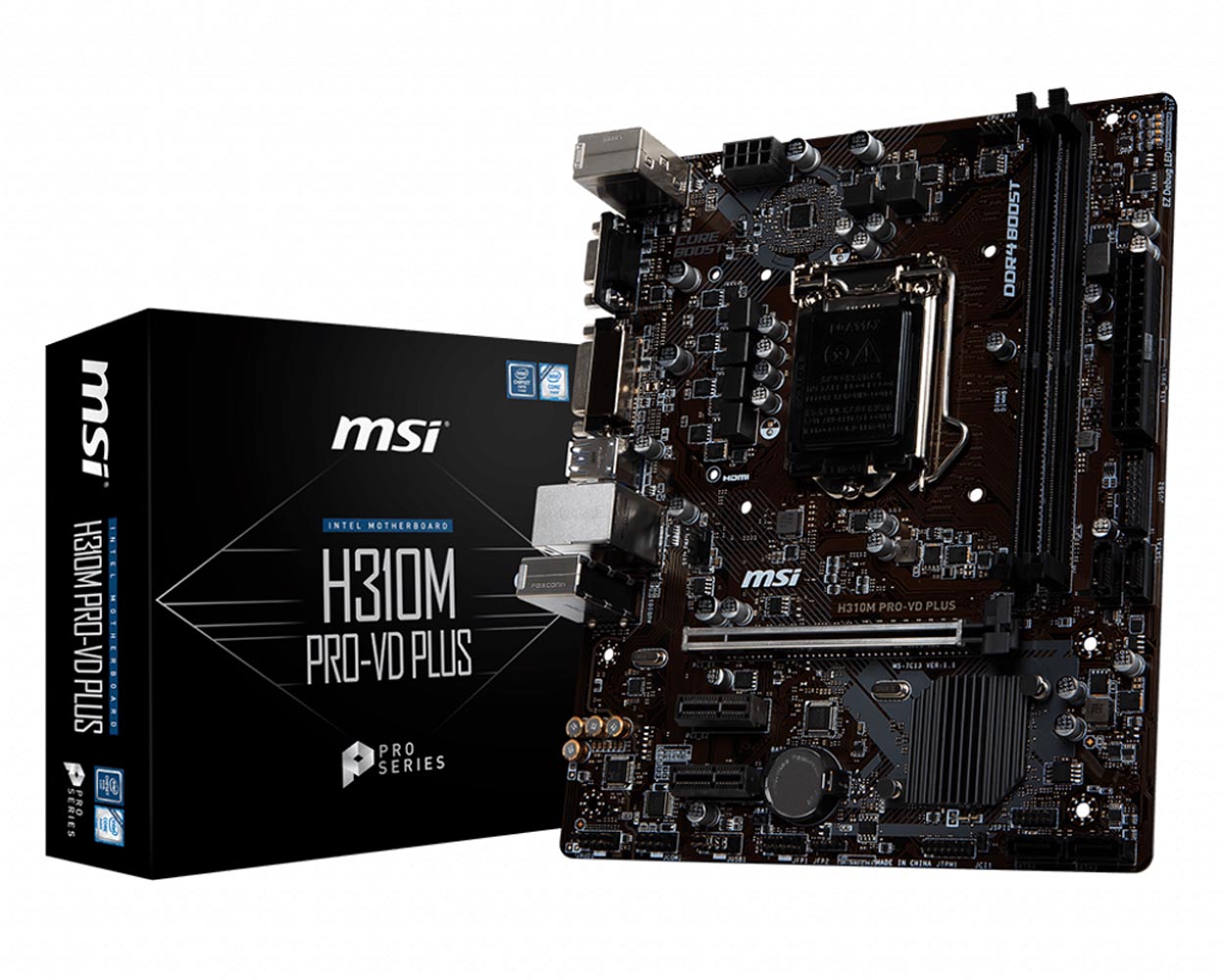

Mainboard MSI H310M PRO-VD Plus
Mua hàng Online tại Hà Nội / Toàn quốc
Mr Dũng: 0922.19.2919 Mr Trung: 097.956.7128

Mainboard MSI H310M PRO-VD Plus

Lưu sản phẩm yêu thích

Đánh giá: rate                  Lượt xem: 5 lượt
Mô tả sản phẩm:
Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
Supports DDR4 Memory, up to 2666MHz
Audio Boost: Reward your ears with studio grade sound quality.
EZ Debug LED: Easiest way to troubleshoot.
PCI-E Steel Armor: Protecting VGA cards against bending and EMI for better performance,stability and strength.
X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

Xem thêm

Bảo hành: 36 Tháng
Kho hàng: Liên hệ
1.729.000

[Giá đã bao gồm VAT]

Đặc điểm nổi bật

CHIPSET

Intel® H310 Chipset

MEMORY

  • 2 x DDR4 memory slots, support up to 32GB
  • Supports DDR4 2666/ 2400/ 2133 MHz
  • Dual channel memory architecture
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)

SLOTS

  • 1 x PCIe 3.0 x16 slot
  • 2 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS

  • 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

STORAGE

Intel® H310 Chipset

  • 4 x SATA 6Gb/s ports

USB

Intel® H310 Chipset

  • 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
  • 6 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)

AUDIO

Realtek® ALC887 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x RTL8111H Gigabit LAN controller

INTERNAL CONNECTORS

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin system fan connector
  • 2 x Front panel connectors
  • 1 x Front panel audio connector
  • 1 x Serial port connector
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
  • 4 x EZ Debug LED

BACK PANEL PORTS

  1. PS/2 Combo Port
  2. VGA Port
  3. DVI-D Port
  4. USB 3.1 Gen1
  5. LAN Port
  6. HD Audio Connectors
  7. USB 2.0 Port
  8. USB 2.0 Port

MSI H310M PRO-VD back panel ports

DIMENSIONS

  • 8.9 in. x 7.3 in. (22.6 cm x 18.5 cm)
  • m-ATX Form Factor

Thông số kỹ thuật

Socket
  • 1151
Số khe cắm RAM
  • 2 khe
Kích thước Mainboard
  • M-ATX
Chipset
  • Intel H310

Hình ảnh

Mainboard MSI H310M PRO-VD Plus
Mainboard MSI H310M PRO-VD Plus
Mainboard MSI H310M PRO-VD Plus
Mainboard MSI H310M PRO-VD Plus
Mainboard MSI H310M PRO-VD Plus
