Radiator EK-CoolStream PE 120 (Single)

Radiator EK-CoolStream PE 120 (Single)

Mã SP: SP000339           rate                  Lượt xem: 60 lượt
Mô tả sản phẩm:

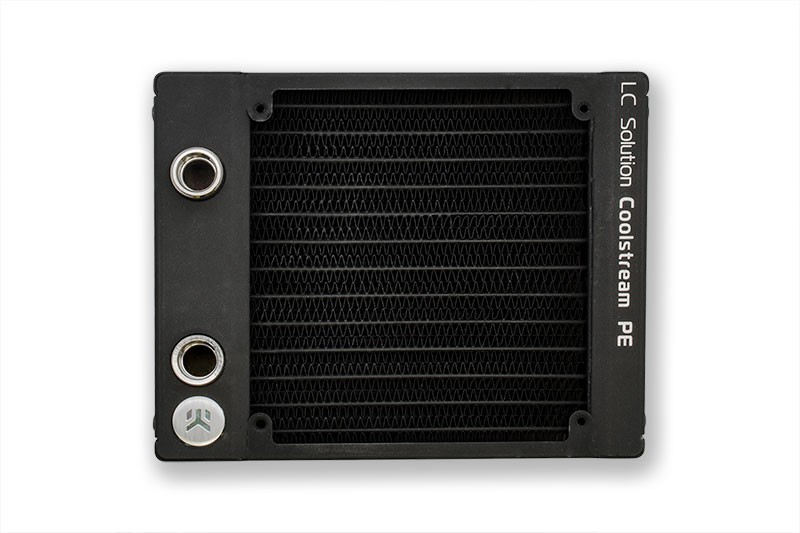

EK-CoolStream PE is a high-performance computer water-cooling radiator which combines EK's unique CSQ design with latest radiator core engine.

Best cooling capacity in the 40mm thick radiator class!

Xem thêm

Bảo hành:
Kho hàng: Liên hệ
1.339.000

[Giá đã bao gồm VAT]

Đặc điểm nổi bật

Details

EK-CoolStream PE is a high-performance computer water-cooling radiator which combines EK's unique CSQ design with latest radiator core engine. Built for Vardar 120mm high static pressure fans, these radiators are optimized for maximum heat dissipation across entire fan operational range thus delivering exceptional performance at both low- and high airflow operation.

EK assured quality level, optimal price-performance ratio and unique minimalistic design make these EK-CoolStream PE series radiators a perfect choice for any computer water cooled system.

This radiator offers best cooling capacity in the 40mm thick radiator class: Double stack copper fins provide massive surface area while the parallel flow cooling chambers reduce hydraulic flow resistance to a minimum. Radiator shrouds are tapped with UNC 6-32 threads on both sides to enable push-pull fan installation to even further increase the cooling performance.

This product features two recessed G1/4 threaded ports with pre-installed extenders to allow any G1/4 threaded fitting to be used.

Technical details:
Material:
- Copper fins
- 90% copper tubing (H90)
- Brass chambers
- Aluminum housing

Dimensions: 160 x 130 x 38mm (L x W x H)
Weight: 0.53kg
Liquid Capacity: ~130mL
FPI: 19 (split fin)
Port threads: 2x G1/4
Fan compatibility: any standard size 120x120x25mm fan; UNC 6-32 thread tapping
Pressure tested: 1bar(g)

Enclosed:
- EK-CoolStream PE series radiator /w pre-installed G1/4 extenders
- flat-head UNC 6-32 screws (l=30mm)

Thông số kỹ thuật

Kích Thước Rad
  • 120mm
