Mainboard ASUS PRIME B360M-K
Mua hàng Online tại Hà Nội / Toàn quốc
Mr Dũng: 0922.19.2919 Mr Trung: 097.956.7128

Mainboard ASUS PRIME B360M-K

Lưu sản phẩm yêu thích

Đánh giá: rate                  Lượt xem: 114 lượt
Mô tả sản phẩm:
Hỗ trợ chip Intel thế hệ 8 mới nhất hiện nay
Công nghệ ASUS OptiMem đảm bảo tín hiệu giúp bộ nhớ ổn định hoạt động bền lâu
Quạt thông minh Fan Xpert giảm tiếng ồn, tiết kiệm điện, làm mát hiệu quả
Linh kiện đạt chuẩn 5X Protection III vững chắc
Hỗ trợ kết nối M.2 cực nhanh hiện nay

Xem thêm

Bảo hành: 36 Tháng
Kho hàng: Liên hệ
2.005.000

[Giá chưa bao gồm VAT]

Đặc điểm nổi bật

CPU LGA1151 socket for 8th Generation Intel® Core™ i7/ i5/ i3, Pentium®,and Celeron® processors
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0*
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
** Refer to www.asus.com for Intel® CPU support list.
Chipset Intel® B360 Chipset
Memory 2 x DIMMs, maximum 32 GB, DDR4 2666/ 2400/ 2133MHz, non-ECC, un-buffered memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* The maximum memory frequency supported varies by processor
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
*** Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
Expansion Slots 1 x PCI Express 3.0/2.0 x16 slot (@ x16 mode)
2 x PCI Express 3.0/2.0 x1 slots
VGA Integrated Graphics Processor – Intel® HD Graphics support
Multi-VGA output support: DVI-D/D-Sub ports
– Supports DVI-D with max. resolution of 1920 x 1200 @60Hz
– Supports D-Sub with max. resolution of 1920 x 1200 @60Hz
Supports Intel® InTru™ 3D/Quick Sync Video/Clear Video HD Technology/Insider™
Maximum shared memory of 1024 MB (for iGPU exclusively)
Storage Intel® B360 Chipset
– 1 x M.2 Socket 3 with M Key, type 2242 /2260 /2280 storage devices support (SATA mode & x 4 PCIE mode)*
– 6 x SATA 6.0Gb/s ports (gray)
* When a device in SATA mode is installed on the M.2 socket, SATA_2 port cannot be used.
LAN Realtek® 8111H Gigabit LAN support LANGuard
Audio Realtek® ALC887 8-channel* high definition audio CODEC
– LED-illuminated design: Brighten up your build with the gorgeous illuminated audio trace path.
– Audio Shielding: Ensures precision analog/digital separation and greatly reduces multi-lateral interference
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
– Supports jack-detection and front panel jack-retasking
* Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
USB Intel® B360 Chipset
– 2 x USB 3.1 Gen 2 (up to 10Gbps) ports (@back panel, teal blue,Type A)
– 4 x USB 3.1 Gen 1 (up to 5Gbps) ports (2 ports @mid-board; 2 ports @back panel, blue,Type A)
– 6 x USB 2.0/1.1 ports (4 ports @mid-board; 2 ports @back panel)
ASUS Special Features ASUS 5X PROTECTION III
– ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
– ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges
– ASUS Overvoltage Protection: World-class circuit-protecting power design
– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability
– ASUS DIGI+ VRM: 5 Phase digital power design
Superb Performance
ASUS OptiMem
– Improved DDR4 stability
M.2 onboard
– The latest transfer technologies with up to 32Gb/s data transfer speeds
ASUS EPU
– EPU
UEFI BIOS
– Most advanced options with fast response time
Gaming Scenario
Audio Features
– Audio that roars on the battlefield
ASUS Exclusive Features
– ASUS AI Charger
– ASUS AI Suite 3
– ASUS File Transfer
– ASUS PC Cleaner
EZ DIY
UEFI BIOS EZ Mode
– featuring friendly graphics user interface
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
Q-Design
– ASUS Q-DIMM
ASUS Quiet Thermal Solution Quiet Thermal Design:
– ASUS Fan Xpert
– Stylish Fanless Design: PCH heatsink solution
Back Panel I/O Ports 1 x PS/2 keyboard port (purple)
1 x PS/2 mouse port (green)
1 x DVI-D port
1 x D-Sub port
1 x LAN (RJ45) ports
2 x USB 3.1 Gen 2 (up to 10Gbps) Type A (teal blue)
2 x USB 3.1 Gen 1 (up to 5Gbps) Type A (blue)
2 x USB 2.0/1.1 ports
3-Jack 8-Channel Audio I/O ports
Internal I/O Connectors 1 x USB 3.1 Gen 1 (up to 5Gbps) connectors support additional 2 USB ports (19-pin)
2 x USB 2.0/1/1 connectors support additional 4 USB ports
6 x SATA 6.0 Gb/s connectors (gray)
1 x M.2 Socket 3 (for M Key)
1 x 4-pin CPU Fan connector for 4-pin (PWM mode) coolers control
1 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control
1 x Front Panel Audio connector (AAFP)
1 x System panel connector
1 x S/PDIF out header
1 x Speaker header
1 x 24-pin EATX Power connector
1 x 8-pin EATX 12V Power connector
1 x Clear CMOS header
1 x COM header
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WOL by PME, PXE
Accessories 2 x Serial ATA 6.0Gb/s cables
1 x I/O Shield
1 x M.2 Anchor
1 x Support DVD
1 x User’s manual
Support DVD Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
Operating System Support Windows® 10 (64-bit)
Form Factor mATX form factor: 8.9 in x 7.3 in (22.6cm x 18.5cm)

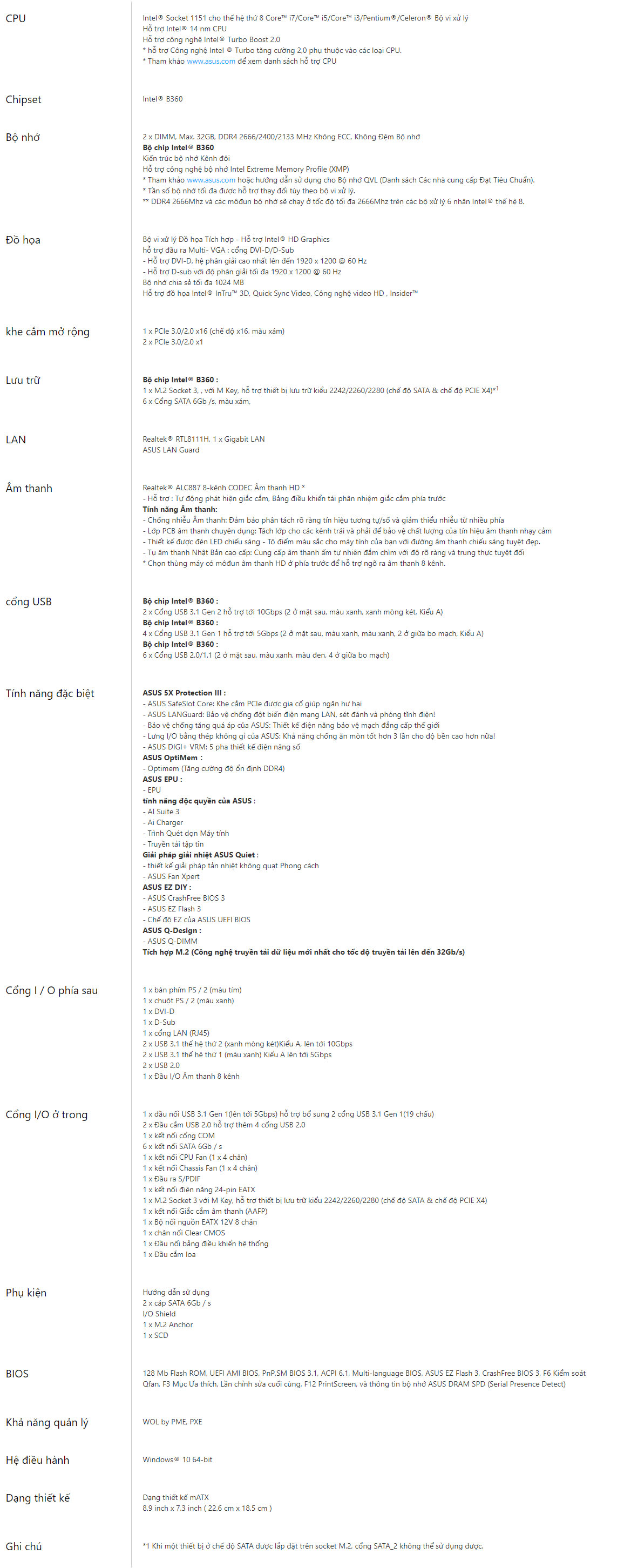

Thông số kỹ thuật

Socket
  • 1151
Số khe cắm RAM
  • 2 khe
Kích thước Mainboard
  • M-ATX
Chipset
  • Intel B360

Hình ảnh

Mainboard ASUS PRIME B360M-K
Mainboard ASUS PRIME B360M-K
Mainboard ASUS PRIME B360M-K
Mainboard ASUS PRIME B360M-K
Mainboard ASUS PRIME B360M-K
Mainboard ASUS PRIME B360M-K

Video

Tư vấn bán hàng qua Facebook

Đánh giá

  • Đánh giá sản phẩm:

Hiện tại chưa có ý kiến đánh giá nào về sản phẩm. Hãy là người đầu tiên chia sẻ cảm nhận của bạn.
