Mainboard MSI B360M PRO-VDH

Mã SP:

Lưu sản phẩm yêu thích

Đánh giá: rate                  Lượt xem: 146 lượt
Mô tả sản phẩm:
CPU Support Supports 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors
CPU Socket LGA 1151
Chipset Intel® B360 Chipset
Graphics Interface 1 x PCI-E 3.0 x16 slot
Display Interface HDMI, DVI-D, VGA - Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR4 up to 2666MHz
Expansion Slots 2 x PCI-E x1 slots
Storage 1 x Turbo M.2 slot, supports Intel® OptaneTM Technology 6 x SATA 6Gb/s
USB ports 6 x USB 3.1(Gen1) + 6 x USB 2.0
LAN Realtek® 8111H Gigabit LAN
Audio 8-Channel(7.1) HD Audio with Audio Boost
Bảo hành: 36 Tháng
Kho hàng: Còn hàng
2.210.000

[Giá chưa bao gồm VAT]

Đặc điểm nổi bật

PROCESSOR

Supports 8th Gen Intel® Core™, Pentium® Gold and Celeron® processors for Socket LGA1151

CHIPSET

Intel® B360 Chipset

MEMORY

  • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 2666/ 2400/ 2133 MHz Memory
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)

SLOTS

  • 1x PCIe 3.0 x16 slot
  • 2x PCIe 3.0 x1 slots

ONBOARD GRAPHICS

  • 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
  • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz

STORAGE

Intel® B360 Chipset

  • 6 x SATA 6Gb/s ports1
  • 1 x M.2 slot (Key M)
    • Support up to PCIe 3.0 x4 and SATA 6Gb/s
    • Supports 2242/ 2260 /2280/ 22110 storage devices
    • M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
    • Intel® Optane™ Memory Ready2
  • Supports Intel® Smart Response Technology for Intel Core™ processors
  • The SATA1 connector will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1 slot.
  • Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel® Z370 Chipset

  • 6x USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the back panel, 2 ports available through the internal USB connector)
  • 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AUDIO

Realtek® ALC887 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x RTL8111H Gigabit LAN controller

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 1x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 2x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 1x Parallel port connector
  • 1x Serial port connector
  • 2x Front panel connectors
  • 1x TPM module connector
  • 1x Chassis Intrusion connector
  • 1x Thunderbolt add-on card connector
  • 1x Clear CMOS jumper

BACK PANEL PORTS

  1. 1x PS/2 keyboard port
  2. 1x PS/2 mouse port
  3. 1x VGA port
  4. 1x DVI-D port
  5. 1x HDMI™ port
  6. 1x LAN (RJ45) port
  7. 2x USB 2.0 Type-A ports
  8. 3x USB 3.1 Gen1 Type-A ports
  9. 1x USB 3.1 Gen1 Type-C port
  10. 3x Audio jacks
MSI Z370 SLI PLUS back panel ports

DIMENSIONS

  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
  • m-ATX Form Factor


Thông số kỹ thuật

Socket
  • 1151
Số khe cắm RAM
  • 4 khe
Kích thước Mainboard
  • M-ATX
Chipset
  • Intel B360

Hình ảnh

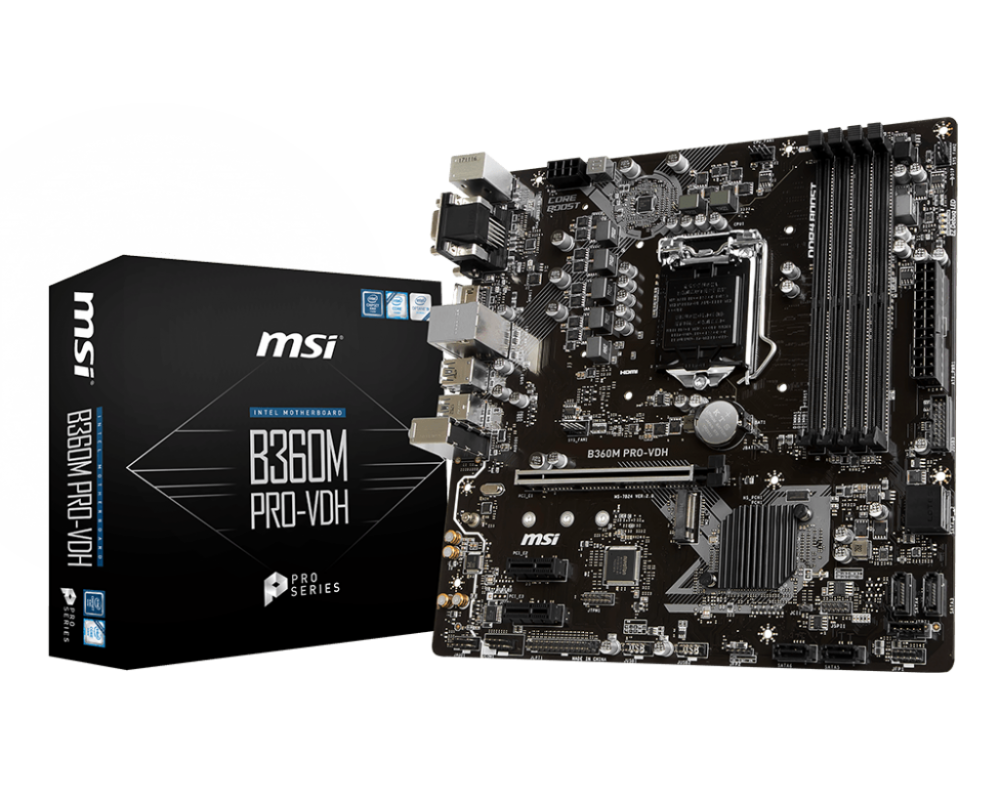

Mainboard MSI B360M PRO-VDH
Mainboard MSI B360M PRO-VDH
Mainboard MSI B360M PRO-VDH
