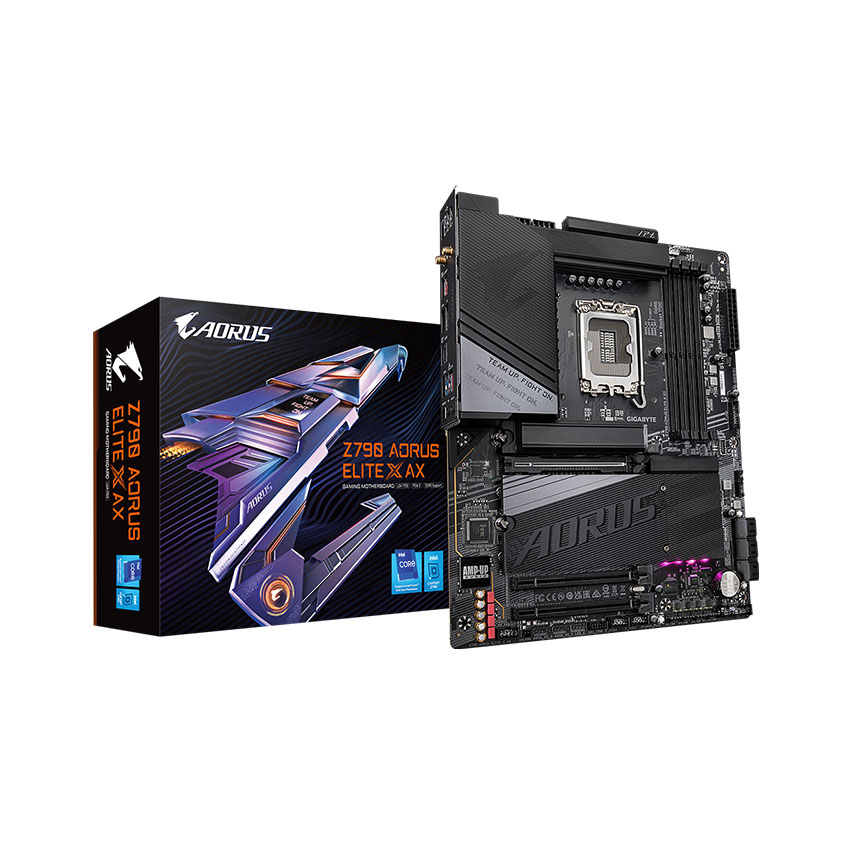

Mainboard Gigabyte Z790 AORUS ELITE X AX DDR5 (Wifi+Bluetootth)

Đánh giá & Nhận xét về Mainboard Gigabyte Z790 AORUS ELITE X AX DDR5 (Wifi+Bluetootth)

0/5

đánh giá & nhận xét

5 sao
4 sao
3 sao
2 sao
1 sao

Bạn đã dùng sản phẩm này?

Gửi nhận xét của bạn


Đánh giá:
Tên bạn
Email
Số điện thoại
	Gửi đánh giá Hủy

Thương hiệu	Gigabyte
Bảo hành	36 tháng
Chipset	Z790
Socket	Intel LGA 1700
Hỗ trợ CPU	14th, 13th, 12th Intel Core, Pentium Gold và Celeron
Khe RAM tối đa	4 khe
Bus RAM hỗ trợ	4800, 4000, 5200(O.C.), 5400(O.C.), 5600(O.C.), 5800(O.C.), 6000(O.C.), 6200(O.C.), 6400(O.C.), 6600(O.C.), 6800(O.C.), 7000(O.C.), 7200(O.C.), 7400(O.C.), 7600(O.C.), 7800(O.C), 7900(O.C), 7950(O.C), 8000(O.C), 8200(O.C), 8266(O.C)
Hỗ trợ bộ nhớ tối đa	192GB
Cổng xuất hình	1 x HDMI port 1 x DisplayPort
Cổng trên Main	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper
Cổng phía sau	1 x USB Type-C® port, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) jk 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Âm thanh	Realtek® ALC1220-VB CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Lưu trữ	CPU: – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) – 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) – 6 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Khe cắm mở rộng	CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: – 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
LAN	Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Kích cỡ Mainboard	ATX
Kích thước	30.5cm x 24.4cm

Thương hiệu

Gigabyte

Bảo hành

36 tháng

Chipset

Z790

Socket

Intel LGA 1700

Hỗ trợ CPU

14th, 13th, 12th Intel Core, Pentium Gold và Celeron

Khe RAM tối đa

4 khe

Bus RAM hỗ trợ

4800, 4000, 5200(O.C.), 5400(O.C.), 5600(O.C.), 5800(O.C.), 6000(O.C.), 6200(O.C.), 6400(O.C.), 6600(O.C.), 6800(O.C.), 7000(O.C.), 7200(O.C.), 7400(O.C.), 7600(O.C.), 7800(O.C), 7900(O.C), 7950(O.C), 8000(O.C), 8200(O.C), 8266(O.C)

Hỗ trợ bộ nhớ tối đa

192GB

Cổng xuất hình

1 x HDMI port
1 x DisplayPort

Cổng trên Main

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x reset button
1 x Q-Flash Plus button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper

Cổng phía sau

1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R) jk
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

Âm thanh

Realtek® ALC1220-VB CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Lưu trữ

CPU:
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
– 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
– 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
– 6 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Khe cắm mở rộng

CPU:
– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
Chipset:
– 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

LAN

Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Kích cỡ Mainboard

ATX

Kích thước

30.5cm x 24.4cm
