Mainboard GIGABYTE Z690 AORUS TACHYON (rev. 1.0)

(0 lượt đánh giá)     Mã hàng: 0      Lượt xem: 13      Tình trạng hàng: Liên hệ

Gland Computer cam kết:
Hàng chính hãng
Thanh toán linh hoạt
Bảo hành tại nơi sử dụng
Giao hàng toàn quốc
Tư vấn - đặt hàng
Mrs Trang: 098.499.1534
Mr Kiệt: 079.752.2228
Mr Dũng: 092.219.2919
Đặc điểm nổi bật:
Intel® Z690 AORUS Motherboard with 15+1+2 Phases Digital VRM Design, Overclocking Kit, DDR5 XTREME MEMORY Design, 4x PCIe 4.0 M.2 with Thermal Guards, Intel® 2.5GbE LAN, Intel® WIFI 6E 802.11ax , 120dB Hi-Res Audio with WIMA, Dual USB 3.2 Gen2x2 TYPE-C®, RGB FUSION 2.0, Q-Flash Plus Support 12th Gen Intel® Series Processors Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs 15+1+2 Phases Direct VRM Design with 105A Power Stage* and Tantalum Polymer Capacitor DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing Exclusive onboard Overclocking Kit for extreme overclocking Intel® WIFI 6E 802.11ax 2T2R & BT 5 with AORUS Antenna Amp-Up Audio with ALC1220 and WIMA Audio Capacitors Blazing Fast Intel® 2.5GbE LAN with cFosSpeed 4 x Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards Dual SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Bảo hành: 36 Tháng
Giá khuyến mãi: Liên hệ [Giá đã có VAT]


Đánh giá & Nhận xét về Mainboard GIGABYTE Z690 AORUS TACHYON (rev. 1.0)

0/5

đánh giá & nhận xét
  • 5 sao
  • 4 sao
  • 3 sao
  • 2 sao
  • 1 sao

Bạn đã dùng sản phẩm này?

Gửi đánh giá của bạn

Gửi nhận xét của bạn

Gửi đánh giá Hủy

Hỏi và đáp (0 bình luận)

Thông số kỹ thuật
  • CPU
    1. LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
    2. L3 cache varies with CPU
    (Please refer to "CPU Support List" for more information.)
  • Chipset
    1. Intel® Z690 Express Chipset
  • Memory
    1. Support for DDR5 7000(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
    2. 2 x DDR5 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version and HDCP 2.3.
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek® ALC1220-VB CODEC
      * The back panel line out jack supports DSD audio.
    2. Support for DTS:X® Ultra
    3. High Definition Audio
    4. 2/4/5.1/7.1-channel
    5. Support for S/PDIF Out
  • LAN
    1. Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    Intel® Wi-Fi 6E AX210
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.2
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
      * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
      (The PCIEX16 and PCIEX8 slots conform to PCI Express 5.0 standard.)
    3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      (The PCIEX4 slot conforms to PCI Express 3.0 standard.)
  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage Interface
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
    2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    3. 6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    Intel® Optane™ Memory Ready
    * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
  • USB
    Chipset:
    1. 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
    2. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    ASMedia® USB 3.2 Gen 2 controller:
    1. 1 x USB 3.2 Gen 2 Type-A port (red) onboard
    Chipset+USB 3.2 Gen 1 Hub:
    1. 4 x USB 3.2 Gen 1 ports on the back panel
    Chipset+USB 2.0 Hub:
    1. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 2 x 8-pin ATX 12V power connectors
    3. 1 x 6-pin OC_PEG power connector
    4. 1 x CPU fan header
    5. 1 x water cooling CPU fan header
    6. 4 x system fan headers
    7. 2 x system fan/water cooling pump headers
    8. 2 x addressable LED strip headers
    9. 2 x RGB LED strip headers
    10. 4 x M.2 Socket 3 connectors
    11. 6 x SATA 6Gb/s connectors
    12. 1 x front panel header
    13. 1 x front panel audio header
    14. 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    15. 1 x USB 3.2 Gen 2 Type-A port (red)
    16. 1 x USB 3.2 Gen 1 header
    17. 2 x USB 2.0/1.1 headers
    18. 1 x noise detection header
    19. 2 x Thunderbolt™ add-in card connectors
    20. 2 x temperature sensor headers
    21. Voltage Measurement Points
    22. 1 x Clear CMOS jumper
    23. 1 x power button (PW_SW)
    24. 1 x reset button (RST_SW)
    25. 1 x Clear CMOS button (CMOS_SW)
    26. 1 x Cold Reset button (RTY_SW)
    27. 1 x Protection Mode button (LIMP_MODE)
    28. 2 x BIOS switches (BIOS_SW/SB)
    29. 1 x CPU Ratio up button (RATIO_UP)
    30. 1 x CPU Ratio down button (RATIO_DW)
    31. 1 x OC Trigger switch (TGR)
    32. 1 x Reserved switch (RSV_SW)

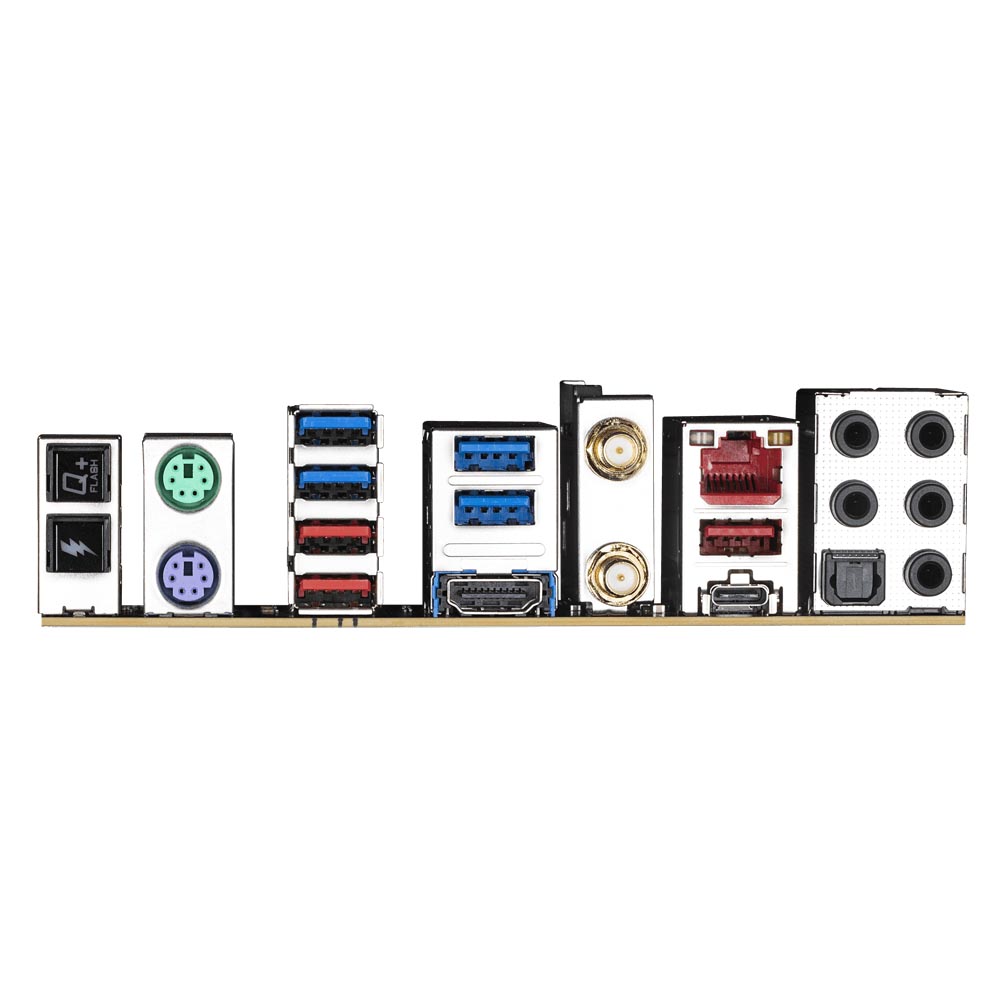

  • Back Panel Connectors
    1. 1 x Q-Flash Plus button
    2. 1 x OC Ignition button
    3. 1 x PS/2 keyboard port
    4. 1 x PS/2 mouse port
    5. 2 x SMA antenna connectors (2T2R)
    6. 1 x HDMI port
    7. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
    8. 3 x USB 3.2 Gen 2 Type-A ports (red)
    9. 4 x USB 3.2 Gen 1 ports
    10. 1 x RJ-45 port
    11. 1 x optical S/PDIF Out connector
    12. 5 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
    7. Noise detection
  • BIOS
    1. 2 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. E-ATX Form Factor; 30.5cm x 27.0cm
Xem thêm
