Mainboard GIGABYTE Z590 AORUS XTREME WATERFORCE

(0 lượt đánh giá)     Mã hàng: SP004779      Lượt xem: 422      Tình trạng hàng: Liên hệ

Gland Computer cam kết:
Hàng chính hãng
Thanh toán linh hoạt
Bảo hành tại nơi sử dụng
Giao hàng toàn quốc
Tư vấn - đặt hàng
Mrs Trang: 098.499.1534
Mr Kiệt: 079.752.2228
Mr Dũng: 092.219.2919
Đặc điểm nổi bật:

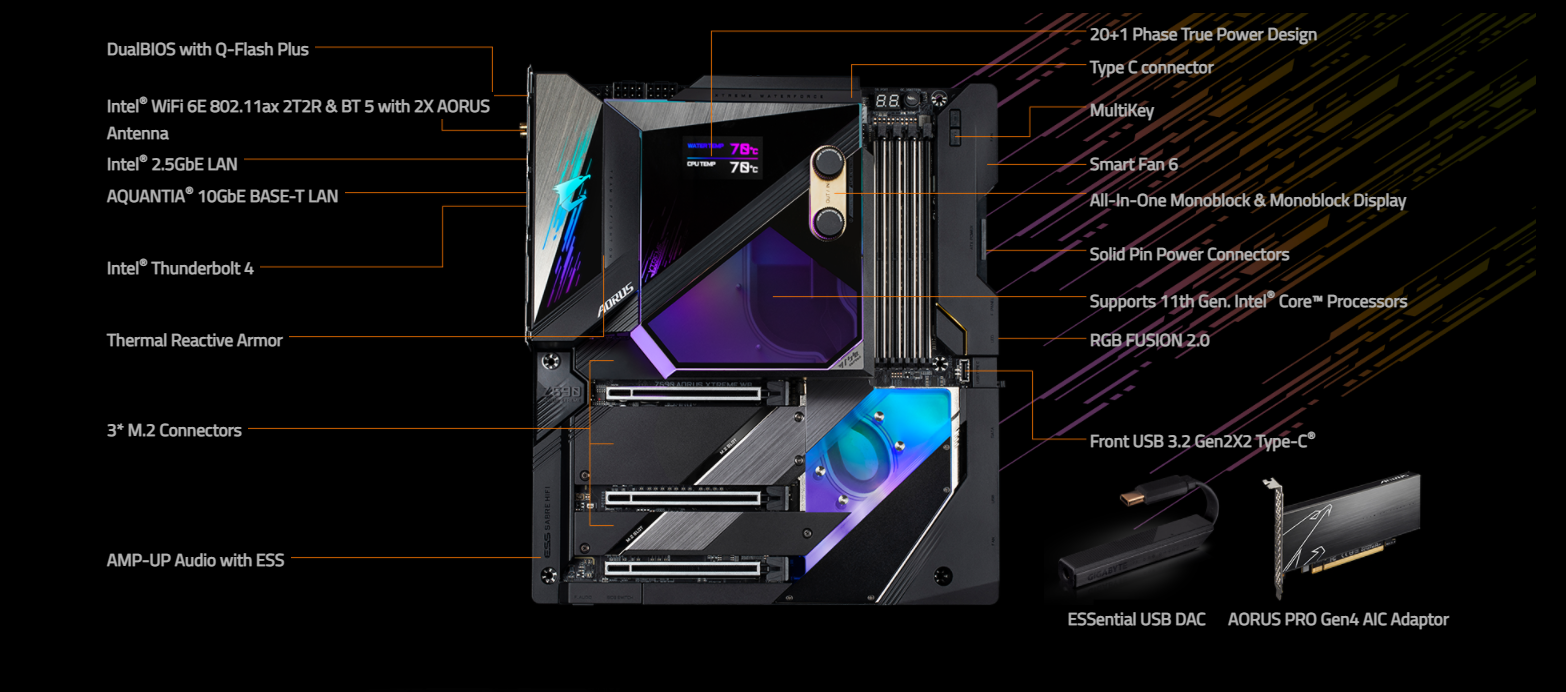

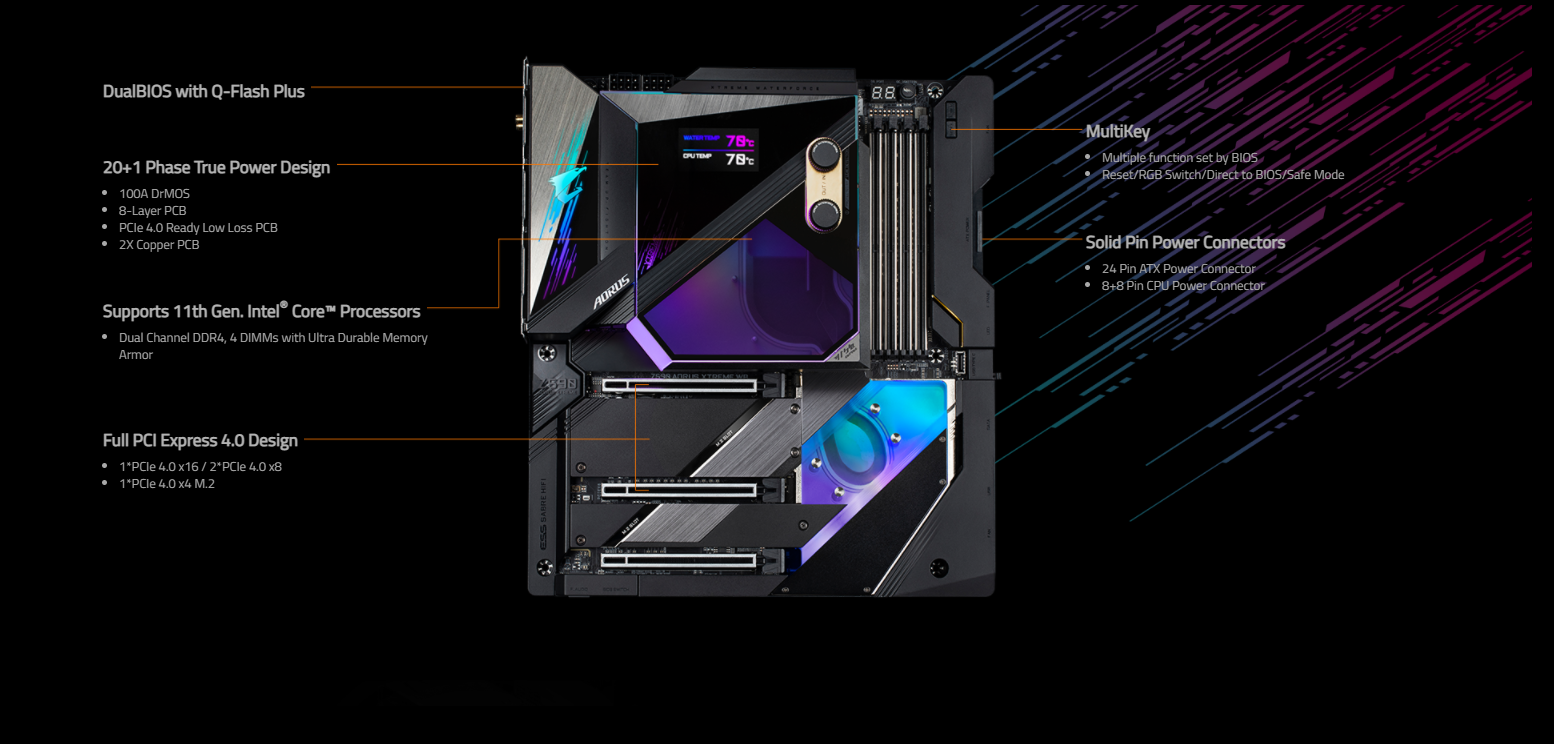

ntel® Z590 AORUS Motherboard with 20+1 Phases Digital VRM, NanoCarbon Baseplate, Intel® Thunderbolt 4, ESSential USB DAC, AORUS PRO Gen4 AIC Adaptor, Intel® WiFi 6E 802.11ax, AQUANTIA® 10GbE LAN Supports 11th and 10th Gen Intel® Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs 20+1 Phases Digital VRM Solution with 100A Smart Power Stage and Tantalum Polymer Capacitors Array XTREME MEMORY with SMT DIMM and Shielded Memory Routing Thermal Reactive Armor with All in One Monoblock and NanoCarbon Baseplate Intel® Thunderbolt™ 4 Onboard Onboard Intel® WiFi 6E 802.11ax 2T2R & BT 5 with 2X AORUS Antenna Exclusively bundled ESSential USB DAC 127dB SNR AMP-UP Audio with High-End ESS SABRE 9018K2M DAC, LME 49720, OPA1622 and WIMA Audio Capacitors AQUANTIA® 10GbE BASE-T LAN and Intel® 2.5GbE LAN with cFosSpeed Exclusively bundled AORUS PRO Gen4 AIC Adaptor Triple Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guards II RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card * Actual support may vary by CPU.

Bảo hành: 36 tháng
Giá thị trường : 46.199.000đ
Giá khuyến mãi: 45.999.000 đ   (Tiết kiệm: 200.000 đ) [Giá đã có VAT]


Đánh giá & Nhận xét về Mainboard GIGABYTE Z590 AORUS XTREME WATERFORCE

0/5

đánh giá & nhận xét
  • 5 sao
  • 4 sao
  • 3 sao
  • 2 sao
  • 1 sao

Bạn đã dùng sản phẩm này?

Gửi đánh giá của bạn

Gửi nhận xét của bạn

Gửi đánh giá Hủy

Hỏi và đáp (0 bình luận)

Thông số kỹ thuật
  • CPU
    LGA1200 package:
    1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
    2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
      * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
    3. L3 cache varies with CPU
    (Please refer to "CPU Support List" for more information.)
  • Chipset
    1. Intel® Z590 Express Chipset
  • Memory
    1. 11th Generation Intel® Core™ i9/i7/i5 processors:
      Support for DDR4 5400 (O.C) / DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
    2. 10th Generation Intel® Core™ i9/i7 processors
      Support for DDR4 2933/2666/2400/2133 MHz memory modules
    3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz memory modules
    4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor+Intel® Thunderbolt™ 4 Controller:
    1. 2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp (via single display output)
      * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
      * Support for DisplayPort 1.4 version, HDCP 2.3
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.3.
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek® ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier
      * The front panel line out jack supports DSD audio.
    2. Support for DTS:X® Ultra
    3. High Definition Audio
    4. 2/4/5.1/7.1-channel
    5. Support for S/PDIF Out
  • LAN
    1. 1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1)
    2. 1 x Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)
  • Wireless Communication module
    Intel® Wi-Fi 6E AX210
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.2
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
    * Wi-Fi 6E and its 6GHz carrier frequency support may vary by country.
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
      * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
      (The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)*
      * Supported by 11th Generation processors only.
    3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      (The PCI Express x4 slot conforms to PCI Express 3.0 standard.)
  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
  • Storage Interface
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
      * Supported by 11th Generation processors only.
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
    2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M_SB)
    3. 6 x SATA 6Gb/s connectors
      * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    Intel® Optane™ Memory Ready
  • USB
    Chipset+Intel® Thunderbolt™ 4 Controller:
    1. 2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support
    Chipset:
    1. 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
    2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    Chipset+2 USB 3.2 Gen 2 Hubs:
    1. 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    2. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    Chipset+USB 2.0 Hubs:
    1. 4 x USB 2.0/1.1 ports available through the internal USB headers (with the included front USB header extension cable)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 2 x 8-pin ATX 12V power connectors
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 1 x water cooling kit CPU LED header (LED_CPU)
    6. 1 x water cooling kit Chipset LED header (LED_PCH)
    7. 6 x system fan headers
    8. 2 x system fan/water cooling pump headers
    9. 1 x noise detection header
    10. 2 x integrated extension cable headers for addressable and RGB LED strips
    11. 6 x SATA 6Gb/s connectors
    12. 3 x M.2 Socket 3 connectors
    13. 1 x front panel header
    14. 1 x front panel audio header
    15. 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    16. 1 x USB 3.2 Gen 1 header
    17. 1 x USB 2.0/1.1 headers
    18. 2 x temperature sensor headers
    19. 1 x power button
    20. 1 x reset button
    21. 1 x OC Ignition button
    22. 2 x BIOS switches
    23. Voltage Measurement Points
    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
  • Back Panel Connectors
    1. 1 x Q-Flash Plus button
    2. 1 x Clear CMOS button
    3. 2 x SMA antenna connectors (2T2R)
    4. 2 x Thunderbolt™ 4 connectors (USB Type-C® port, with USB 3.2 Gen 2 support)
    5. 8 x USB 3.2 Gen 2 Type-A ports (red)
    6. 1 x HDMI port
    7. 2 x RJ-45 port
    8. 1 x optical S/PDIF Out connector
    9. 5 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
    7. Noise detection
  • BIOS
    1. 2 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. E-ATX Form Factor; 30.5cm x 27cm
