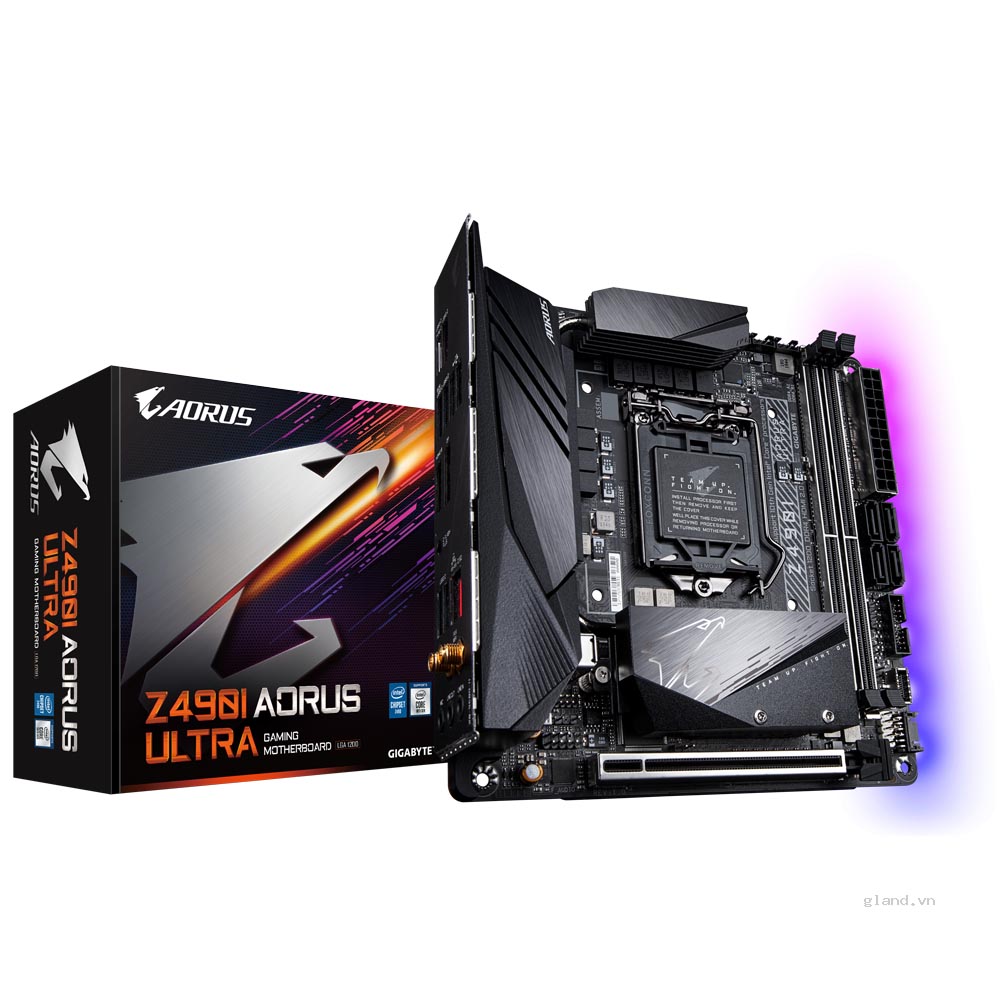

Mainboard Gigabyte Z490i Aorus Ultra

(0 lượt đánh giá)     Mã hàng: 0      Lượt xem: 111      Tình trạng hàng: Liên hệ

Gland Computer cam kết:
Hàng chính hãng
Thanh toán linh hoạt
Bảo hành tại nơi sử dụng
Giao hàng toàn quốc
Điện thoại tư vấn - đặt hàng
Mr Dũng: 0922.19.2919
Mr Sơn: 090.618.0120
Mr Tùng: 0389470449
Đặc điểm nổi bật:
Intel® Z490 Mini-ITX AORUS Motherboard with Direct 8 Phase Digital VRM Design, Advanced Thermal Solution, Intel® WiFi 6 802.11ax, Intel® 2.5GbE LAN, HDMI 2.0, RGB FUSION 2.0 Supports 10th Gen Intel® Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 2DIMMs Intel® Optane™ Memory Ready Direct 8 Phase Digital VRM Solution with 90A Smart Power Stage Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink with Heatpipes Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5 with AORUS Antenna Blazing Fast Intel® 2.5GbE LAN with cFosSpeed AMP-UP Audio with ALC1220-VB for Rear 120dB SNR HDMI 2.0 supports Premium 4K Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guard RGB FUSION 2.0 with Addressable LED & RGB LED Strips Smart Fan 5 Features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Bảo hành: 36 Tháng
Giá thị trường : 6.990.000đ
Giá khuyến mãi: 6.690.000 đ   (Tiết kiệm: 300.000 đ) [Giá đã có VAT]


Đánh giá & Nhận xét về Mainboard Gigabyte Z490i Aorus Ultra

0/5

đánh giá & nhận xét
  • 5 sao
  • 4 sao
  • 3 sao
  • 2 sao
  • 1 sao

Bạn đã dùng sản phẩm này?

Gửi đánh giá của bạn

Gửi nhận xét của bạn

Gửi đánh giá Hủy

Hỏi và đáp (0 bình luận)

Thông số kỹ thuật
  • CPU
    1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® Z490 Express Chipset
  • Memory
    1. Intel® Core™ i9/i7 processors:
      Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
    2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz memory modules
    3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor+PARADE PS175 chip:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version, HDCP 2.3, and HDR.
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
    Maximum shared memory of 512 MB
  • Audio
    1. Realtek® ALC1220-VB codec
      * The back panel line out jack supports DSD audio.
    2. Support for DTS:X® Ultra
    3. High Definition Audio
    4. 2/4/5.1/7.1-channel
      * To configure7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • LAN
    1. Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
  • Wireless Communication module
    Intel® Wi-Fi 6 AX201
    1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5.1
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
      (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
  • Storage Interface
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_CPU)
    2. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2M_SB)
    3. 4 x SATA 6Gb/s connectors
    4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    5. Intel® Optane™ Memory Ready
  • USB
    Chipset:
    1. 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
    2. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
    3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    4. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    5. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB header)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 3 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 4 x SATA 6Gb/s connectors
    8. 2 x M.2 Socket 3 connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x speaker header
    12. 1 x USB Type-C™ header, with USB 3.2 Gen 1 support
    13. 1 x USB 3.2 Gen 1 header
    14. 1 x USB 2.0/1.1 header
    15. 1 x Clear CMOS jumper
    16. 1 x chassis intrusion header

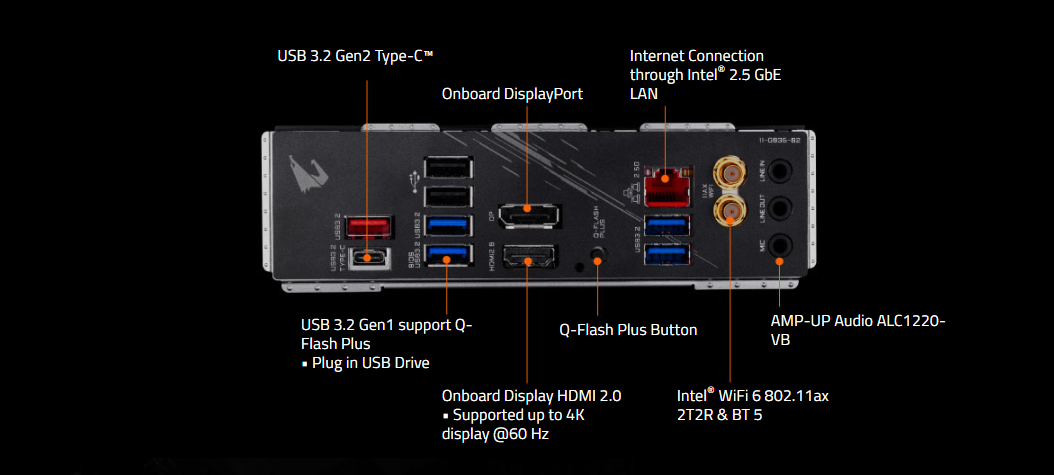

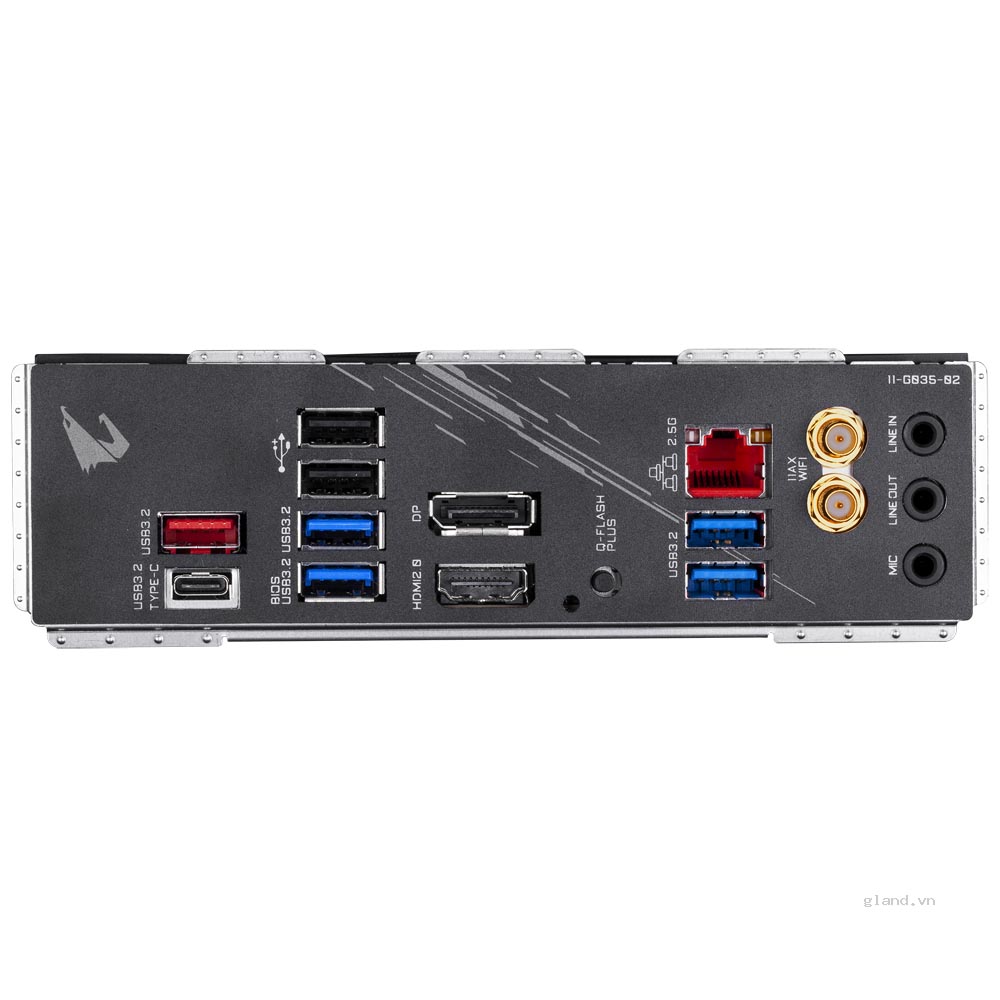

  • Back Panel Connectors
    1. 1 x DisplayPort
    2. 1 x HDMI port
    3. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    4. 1 x USB 3.2 Gen 2 Type-A port (red)
    5. 4 x USB 3.2 Gen 1 ports
    6. 2 x USB 2.0/1.1 ports
    7. 1 x Q-Flash Plus button
    8. 1 x RJ-45 port
    9. 2 x SMA antenna connectors (2T2R)
    10. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. cFosSpeed
    3. XSplit Gamecaster + Broadcaster (12 months license)
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. Mini-ITX Form Factor; 17.0cm x 17.0cm
