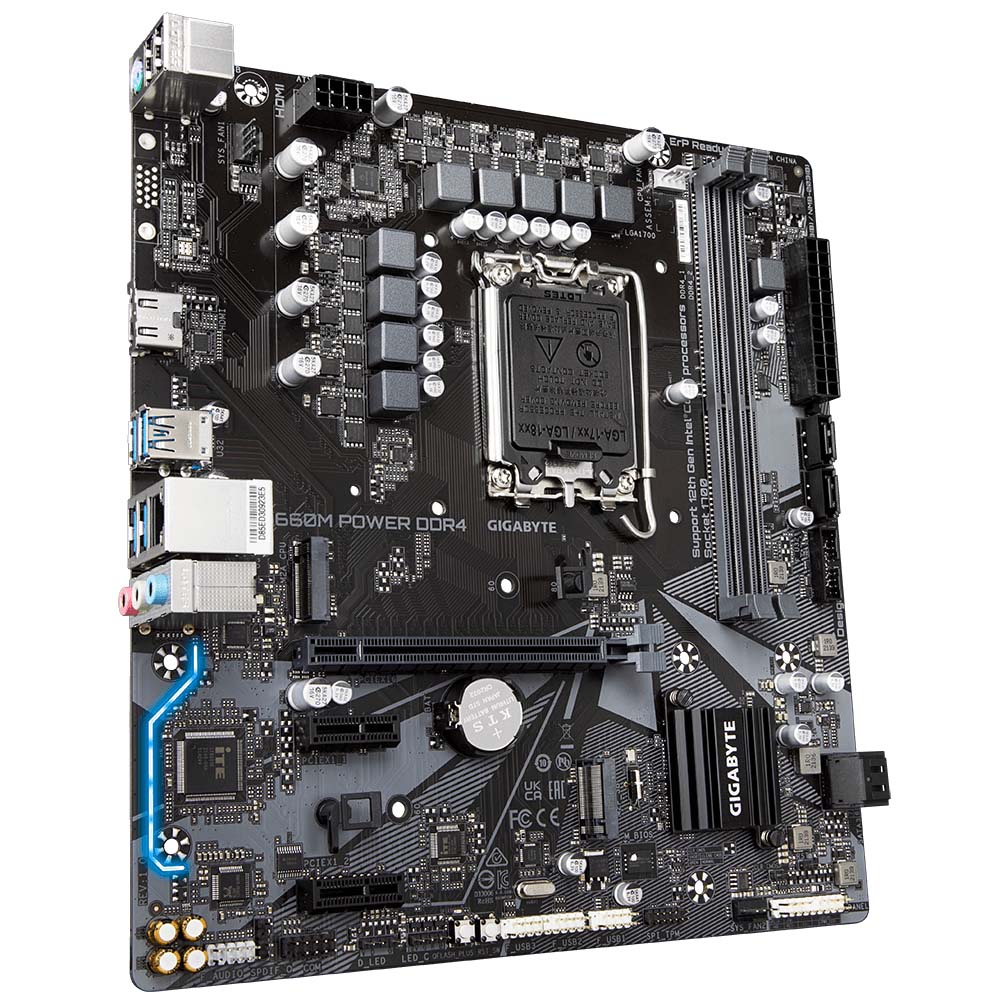

Mainboard GIGABYTE B660M POWER DDR4

(0 lượt đánh giá)     Mã hàng: 0      Lượt xem: 24      Tình trạng hàng: Liên hệ

Gland Computer cam kết:
Hàng chính hãng
Thanh toán linh hoạt
Bảo hành tại nơi sử dụng
Giao hàng toàn quốc
Tư vấn - đặt hàng
Mr Sơn: 090.618.0120
Mr Kiệt: 079.752.2228
Mr Duy Anh: 034.363.3694
Đặc điểm nổi bật:
Intel® B660 Motherboard with 6+2+1 Phases Hybrid Digital, 2 x PCIe 4.0 M.2, GbE LAN, RGB FUSION 2.0, Q-Flash Plus​​​​ Supports 12th Gen Intel® Core™ Series Processors​​ Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs 6+2+1 Phases Hybrid Digital VRM​ Intel® GbE LAN with cFosSpeed Internet Accelerator Software​ Ultra-Fast NVMe PCIe 4.0 x4 M.2​ High Quality Audio Capacitors and Audio Noise Guard​ RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​ Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​​ Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

Bảo hành: 36 Tháng
Giá khuyến mãi: Liên hệ [Giá đã có VAT]


Đánh giá & Nhận xét về Mainboard GIGABYTE B660M POWER DDR4

0/5

đánh giá & nhận xét
  • 5 sao
  • 4 sao
  • 3 sao
  • 2 sao
  • 1 sao

Bạn đã dùng sản phẩm này?

Gửi đánh giá của bạn

Gửi nhận xét của bạn

Gửi đánh giá Hủy

Hỏi và đáp (0 bình luận)

Thông số kỹ thuật
  • CPU
    1. LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
    2. L3 cache varies with CPU
    (Please refer to "CPU Support List" for more information.)
  • Chipset
    1. Intel® B660 Express Chipset
  • Memory
    1. Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
    2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  • LAN
    1. Intel® GbE LAN chip (1 Gbps/100 Mbps)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
    2. 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2)
      (The PCIEX1 slots conform to PCI Express 3.0 standard.)
  • Storage Interface
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    2. 4 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10

    Intel® Optane™ Memory Ready
    * System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connector supported by the Chipset.
  • USB
    Chipset:
    1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    2. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+2 USB 2.0 Hubs:
    1. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 2 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 2 x M.2 Socket 3 connectors
    8. 4 x SATA 6Gb/s connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x S/PDIF Out header
    12. 1 x USB 3.2 Gen 1 header
    13. 3 x USB 2.0/1.1 headers
    14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    15. 1 x serial port header
    16. 1 x Q-Flash Plus button
    17. 1 x reset button
    18. 1 x reset jumper
    19. 1 x Clear CMOS jumper
    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x HDMI 2.0 port
    3. 4 x USB 3.2 Gen 1 ports
    4. 2 x USB 2.0/1.1 ports
    5. 1 x RJ-45 port
    6. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Fan fail warning
    5. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 22.5cm
