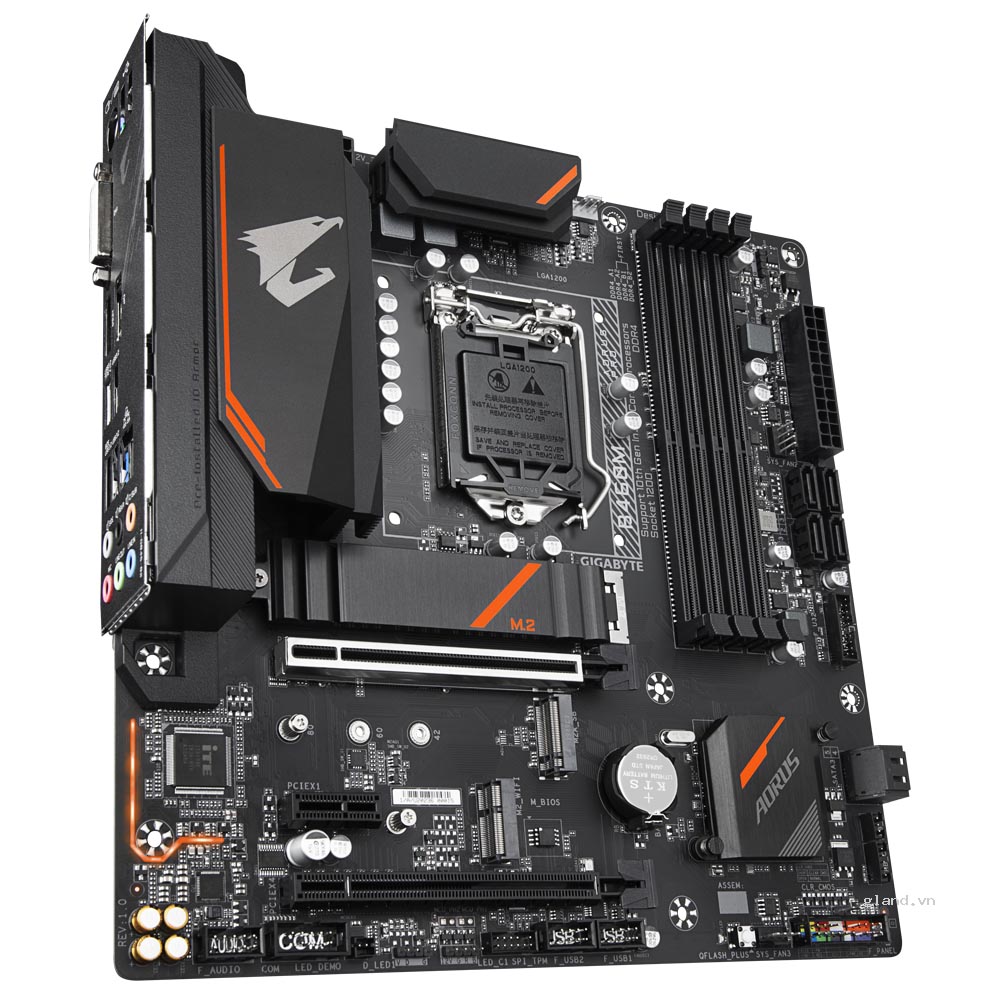

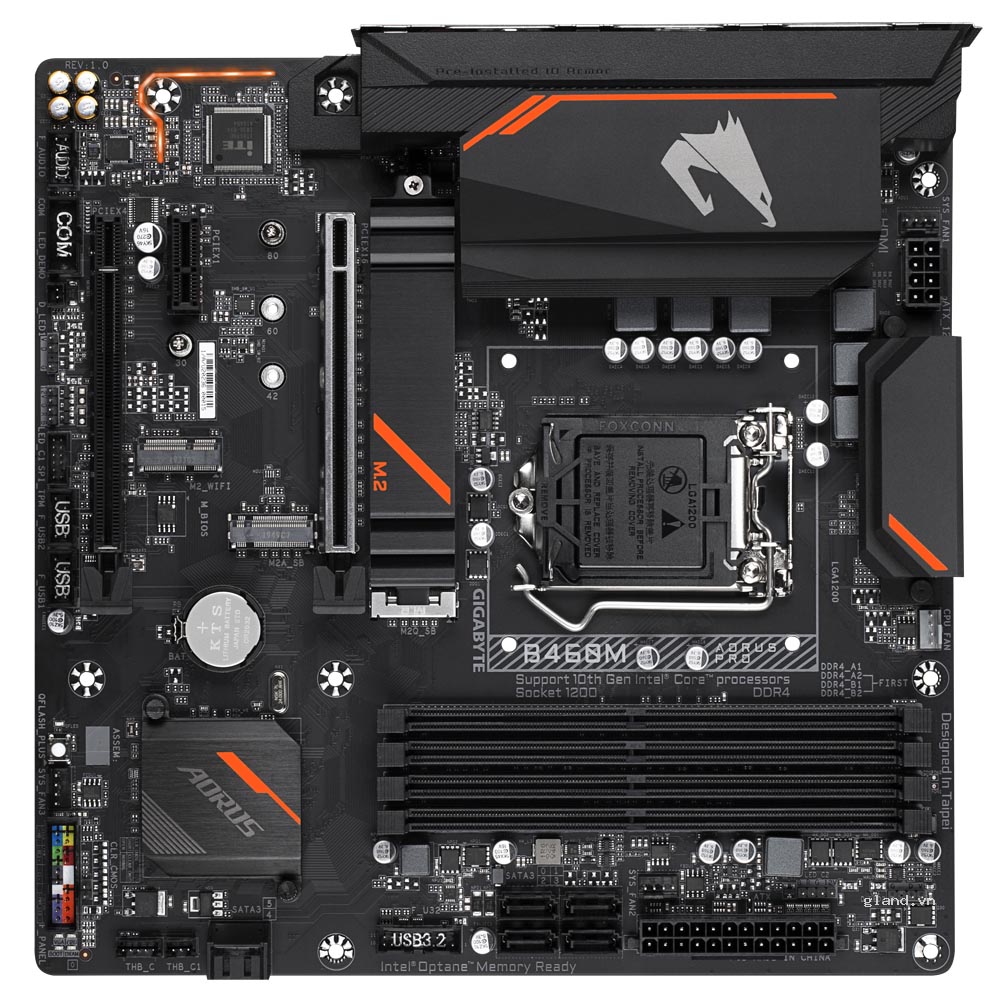

Mainboard Gigabyte B460M AORUS PRO

(0 lượt đánh giá)     Mã hàng: SP003724      Lượt xem: 81      Tình trạng hàng: Liên hệ

Gland Computer cam kết:
Hàng chính hãng
Thanh toán linh hoạt
Bảo hành tại nơi sử dụng
Giao hàng toàn quốc
Điện thoại tư vấn - đặt hàng
Mr Dũng: 0922.19.2919
Mr Sơn: 090.618.0120
Mr Tùng: 0389470449
Đặc điểm nổi bật:
Intel® B460 AORUS Motherboard with RGB Fusion 2.0 with Digital LEDs, Intel® GbE LAN with cFosSpeed, Advanced Thermal Design with Enlarged Heatsink, USB 3.2 Gen1 Type-C , Dual M.2 Slots, M.2 E-key Slot for PCIe WIFI Module Upgradable Supports 10th Gen Intel® Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs Advanced Thermal Design with Enlarged Heatsink Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guard Blazing Fast Intel® GbE LAN with cFosSpeed Intel® USB 3.2 Gen1 Type-C™ Support M.2 E-key Slot for PCIe WIFI Module Upgradable AMP-UP Audio with ALC1200 with Nichicon MW Audio Capacitors RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips Pre-installed IO Shield for Easy and Quick Installation Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card Intel® Optane™ Memory Ready

Bảo hành: 36 Tháng
Giá khuyến mãi: 2.649.000 đ   [Giá đã có VAT]


Đánh giá & Nhận xét về Mainboard Gigabyte B460M AORUS PRO

0/5

đánh giá & nhận xét
  • 5 sao
  • 4 sao
  • 3 sao
  • 2 sao
  • 1 sao

Bạn đã dùng sản phẩm này?

Gửi đánh giá của bạn

Gửi nhận xét của bạn

Gửi đánh giá Hủy

Hỏi và đáp (0 bình luận)

Thông số kỹ thuật
        • CPU
          1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
          2. L3 cache varies with CPU
          (Please refer to "CPU Support List" for more information.)
        • Chipset
          1. Intel® B460 Express Chipset
        • Memory
          1. Intel® Core™ i9/i7 processors:
            Support for DDR4 2933/2666/2400/2133 MHz memory modules
          2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
            Support for DDR4 2666/2400/2133 MHz memory modules
          3. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
          4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
          5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
          6. Support for Extreme Memory Profile (XMP) memory modules
          (Please refer to "Memory Support List" for more information.)
        • Onboard Graphics
          Integrated Graphics Processor-Intel® HD Graphics support:
          1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
            * The DVI-D port does not support D-Sub connection by adapter.
          2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
            * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
          3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
            * Support for HDMI 1.4 version and HDCP 2.3.
          Support for up to 3 displays at the same time
          Maximum shared memory of 512 MB
        • Audio
          1. Realtek® ALC1200 codec
          2. High Definition Audio
          3. 2/4/5.1/7.1-channel
        • LAN
          1. Intel® GbE LAN chip (1000 Mbit/100 Mbit)
        • Expansion Slots
          1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
            * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
          2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
          3. 1 x PCI Express x1 slot
            (All of the PCI Express slots conform to PCI Express 3.0 standard.)
          4. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
        • Storage Interface
            1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_SB)
            2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB)
            3. 6 x SATA 6Gb/s connectors
            4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
              * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
            5. Intel® Optane™ Memory Ready
            6. * System Acceleration with Intel
          ®
             Optane™ Memory enabled on the M2Q_SB connector only.
        • USB
          Chipset:
          1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 1 support
          2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
          3. 2 x USB 2.0/1.1 ports on the back panel
          Chipset+USB 2.0 Hub:
          1. 4 x USB 2.0/1.1 ports available through the internal USB headers
        • Internal I/O Connectors
          Chipset:
          1. 1 x 24-pin ATX main power connector
          2. 1 x 8-pin ATX 12V power connector
          3. 1 x CPU fan header
          4. 3 x system fan headers
          5. 2 x addressable LED strip headers
          6. 2 x RGB LED strip headers
          7. 6 x SATA 6Gb/s connectors
          8. 2 x M.2 Socket 3 connectors
          9. 1 x front panel header
          10. 1 x front panel audio header
          11. 1 x USB 3.2 Gen 1 header
          12. 2 x USB 2.0/1.1 headers
          13. 2 x Thunderbolt™ add-in card connectors
          14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
          15. 1 x serial port header
          16. 1 x Clear CMOS jumper
          17. 1 x Q-Flash Plus button
        • Back Panel Connectors
          Chipset:
          1. 1 x PS/2 keyboard/mouse port
          2. 1 x DVI-D port
          3. 1 x DisplayPort
          4. 1 x HDMI port
          5. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
          6. 3 x USB 3.2 Gen 1 ports
          7. 2 x USB 2.0/1.1 ports
          8. 1 x RJ-45 port
          9. 6 x audio jacks
        • I/O Controller
          1. iTE® I/O Controller Chip
        • H/W Monitoring
          1. Voltage detection
          2. Temperature detection
          3. Fan speed detection
          4. Overheating warning
          5. Fan fail warning
          6. Fan speed control
            * Whether the fan speed control function is supported will depend on the cooler you install.
        • BIOS
          1. 1 x 128 Mbit flash
          2. Use of licensed AMI UEFI BIOS
          3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
        • Unique Features
          1. Support for APP Center
            * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
            @BIOS
            EasyTune
            Fast Boot
            Game Boost
            ON/OFF Charge
            RGB Fusion
            Smart Backup
            System Information Viewer
          2. Support for Q-Flash Plus
          3. Support for Q-Flash
          4. Support for Xpress Install
        • Bundled Software
          1. Norton® Internet Security (OEM version)
          2. cFosSpeed
        • Operating System
          1. Support for Windows 10 64-bit
        • Form Factor
          1. Micro ATX Form Factor; 24.4cm x 24.4cm
