| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to ASUS Support for CPU support list. |
| Chipset | AMD B850 Chipset |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. Refer to ASUS Support for more details. |
| Graphics | 1 x DisplayPort (Supports max. 8K@30Hz as specified in DisplayPort 1.4) 1 x HDMI™ port (Supports 4K@60Hz as specified in HDMI 2.1) * Graphics specifications may vary between CPU types. Refer to AMD CPU specifications. |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot with Q-Release Slim AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports PCIe 4.0 x8/x4 mode) AMD B850 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)* * Specifications vary by CPU types. Refer to ASUS Support. |
| Storage | Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 7000 & 9000 Series Desktop Processors: M.2_1: PCIe 5.0 x4 M.2_2: PCIe 5.0 x4 AMD Ryzen™ 8000 Series Desktop Processors: M.2_1: PCIe 4.0 x4 M.2_2: PCIe 4.0 x4/x2 AMD B850 Chipset: M.2_3: PCIe 4.0 x4 M.2_4: PCIe 4.0 x4 * AMD RAIDXpert2 Technology supports PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 is only supported by AMD Ryzen™ 9000 series CPU. |
| Ethernet | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth® | Wi-Fi 7 (802.11be), 2x2 Supports 2.4/5/6GHz frequency bands Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4 * Wi-Fi features vary by OS version. Refer to product specifications for details. |

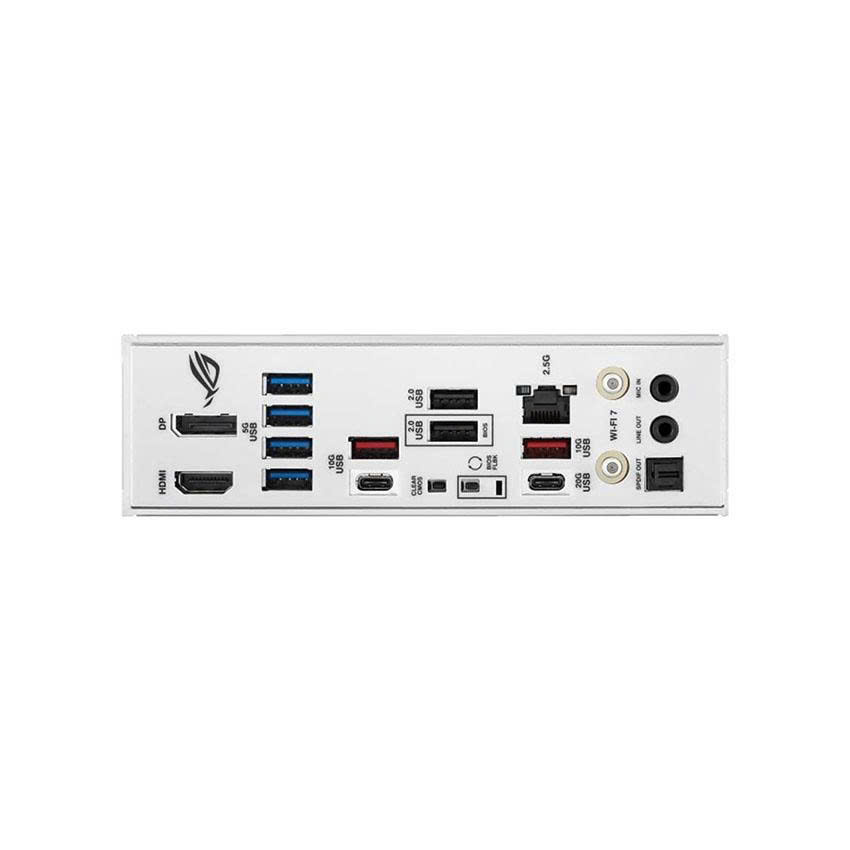

| USB | Rear USB: 1 x USB 20Gbps (USB Type-C®) 3 x USB 10Gbps (2 x Type-A + 1 x Type-C®) 4 x USB 5Gbps (4 x Type-A) 4 x USB 2.0 (4 x Type-A) Front USB: 1 x USB 10Gbps (Type-C®) 1 x USB 5Gbps header (supports 2 USB 5Gbps ports) 2 x USB 2.0 headers (supports 4 USB 2.0 ports) |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Impedance sense, supports up to 32-Bit/384 kHz playback on front panel Dolby Atmos and premium audio features included. |
| Special Features | ASUS Q-Design (M.2 Q-Latch, Q-Release, Q-Antenna) Aura Sync with Addressable Gen 2 headers BIOS FlashBack™ and Clear CMOS button Pre-mounted I/O shield ASUS EZ DIY features included. |
| Accessories | 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x USB drive with utilities and drivers ROG stickers, key chain, and more. |
| Form Factor | ATX Form Factor (12 x 9.6 inches) |
