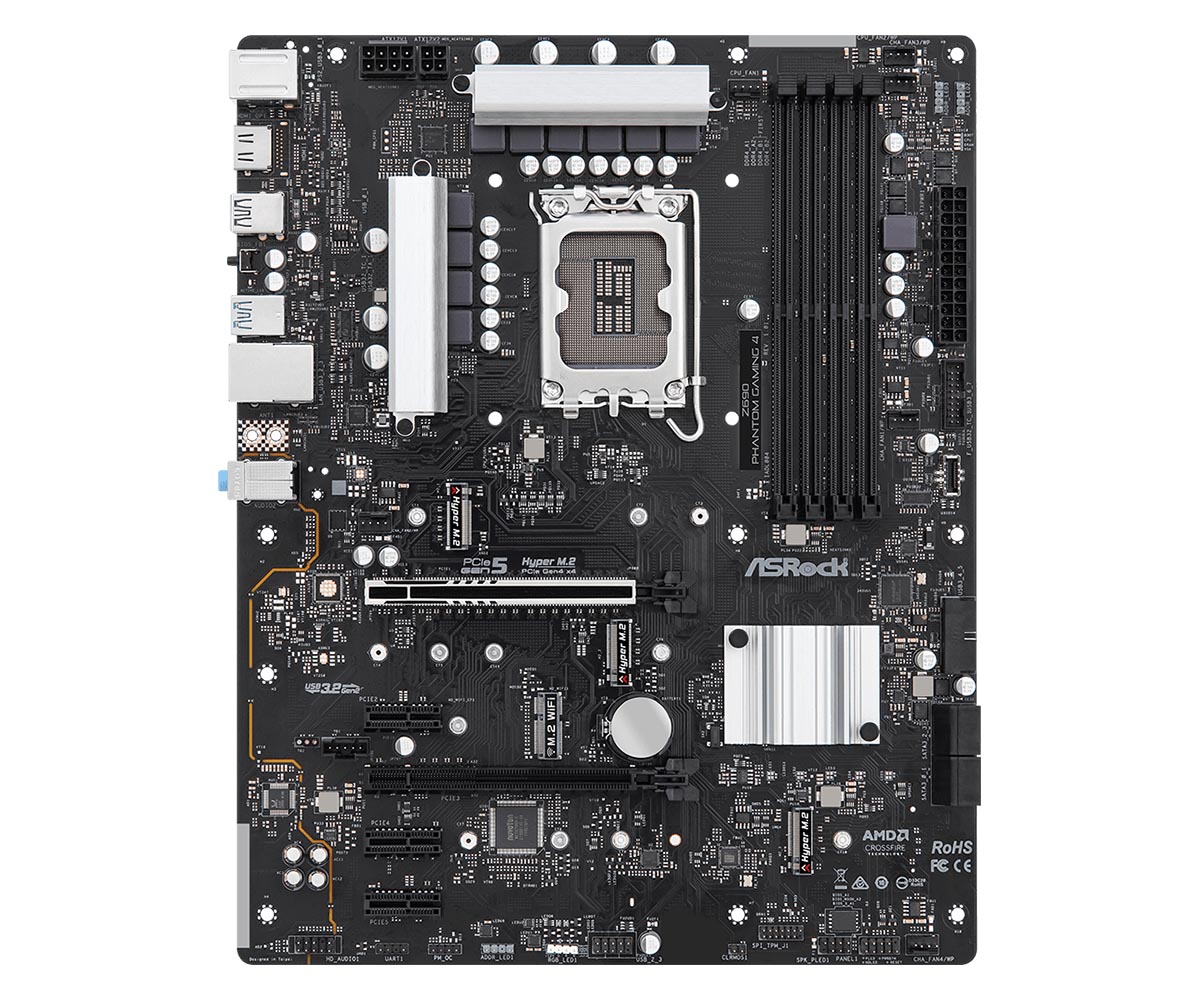

Mainboard ASROCK Z690 Phantom Gaming 4

(0 lượt đánh giá)     Mã hàng: 0      Lượt xem: 4      Tình trạng hàng: Liên hệ

Gland Computer cam kết:
Hàng chính hãng
Thanh toán linh hoạt
Bảo hành tại nơi sử dụng
Giao hàng toàn quốc
Tư vấn - đặt hàng
Mrs Trang: 098.499.1534
Mr Kiệt: 079.752.2228
Mr Dũng: 092.219.2919
Đặc điểm nổi bật:
Supports 12th Gen Intel® Core™ Processors (LGA1700) 9 Phase Dr.MOS Power Design Supports DDR4 5000MHz (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1 1 M.2 Key-E for WiFi Graphics Output Options: HDMI Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3 2 Hyper M.2 (PCIe Gen4 x4) 1 Hyper M.2 (PCIe Gen4 x4 & SATA3) 1 USB 3.2 Gen2x2 Front Type-C 2 USB 3.2 Gen2 (Rear Type A+C) 8 USB 3.2 Gen1 (4 Rear, 4 Front) Intel® Gigabit LAN

Bảo hành: 36 Tháng
Giá khuyến mãi: Liên hệ [Giá đã có VAT]


Đánh giá & Nhận xét về Mainboard ASROCK Z690 Phantom Gaming 4

0/5

đánh giá & nhận xét
  • 5 sao
  • 4 sao
  • 3 sao
  • 2 sao
  • 1 sao

Bạn đã dùng sản phẩm này?

Gửi đánh giá của bạn

Gửi nhận xét của bạn

Gửi đánh giá Hủy

Hỏi và đáp (0 bình luận)

Thông số kỹ thuật
  • Unique Feature
    ASRock USB 3.2 Gen2
    - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
    - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
    - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
    ASRock Super Alloy
    - Premium 50A Power Choke
    - 50A Dr.MOS
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    ASRock Steel Slot
    ASRock Hyper M.2 (PCIe Gen4x4)
    ASRock POST Status Checker (PSC)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    - Supports 12th Gen Intel® Core™ Processors (LGA1700)
    - 9 Power Phase design
    - Supports Intel® Hybrid Technology
    - Supports Intel® Turbo Boost Max 3.0 Technology
  • Chipset
    - Intel® Z690
  • Memory
    - Dual Channel DDR4 Memory Technology
    - 4 x DDR4 DIMM Slots
    - Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)*
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 128GB
    - Supports Intel® Extreme Memory Profile (XMP) 2.0

    *Supports DDR4 3200 natively.
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 6.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
  • Graphics
    - Intel® Xe Graphics Architecture (Gen 12)
    - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    - Supports Surge Protection
    - Nahimic Audio
  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    - Giga PHY Intel® I219V
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports UEFI PXE
  • Slots
    - 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE3))*
    - 3 x PCIe Gen3x1 Slots
    - Supports AMD Quad CrossFireX™ and CrossFireX™
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)

    *Supports NVMe SSD as boot disks
  • Storage
    - 4 x SATA3 6.0 Gb/s Connectors
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*

    *
    Supports Intel® Optane™ Technology
    Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • RAID
    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
  • Connector
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header*
    - 3 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
    - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

    *Supports in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

    *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    - 3 x Antenna Mounting Points
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x HDMI Port
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
    - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    - 2 x USB 2.0 Ports (Supports ESD Protection)
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - 1 x BIOS Flashback Button
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (Phantom Gaming Tuning)
    - ASRock Polychrome SYNC
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash
    - ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
    - 4 x Screws for M.2 Sockets
  • Hardware Monitor
    - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Voltage monitoring: CPU Vcore, PCH, DRAM, VCCIN AUX, VCCSA, +1.05V PROC, +1.8V PROC, +0.82V PCH, +12V, +5V, +3.3V
  • Form Factor
    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    - Solid Capacitor design
  • OS
    - Microsoft® Windows® 10 64-bit / 11 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
