Mainboard Asrock Z390 Phantom Gaming 7

Mainboard Asrock Z390 Phantom Gaming 7

Mã SP: SP002965           rate                  Lượt xem: 54 lượt
Mô tả sản phẩm:
Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
Phantom Gaming 2.5 Gigabit LAN, Intel® Gigabit LAN
Digital PWM, 10 Power Phase
Supports DDR4 4300+(OC) MHz
3 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 (Key E) For WiFi
NVIDIA® NVLink™ & Quad SLI™, AMD 3-Way CrossFireX™
Graphics Output Options : HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
Supports Creative Sound Blaster Cinema 5
8 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
2 USB 3.2 Gen2 10Gb/s (1 Type-A + 1 Type-C)
9 USB 3.2 Gen1 (1 Front Type-C, 4 Front Type-A, 4 Rear)
ASRock Polychrome SYNC

Xem thêm

Bảo hành: 36 Tháng
Kho hàng: Liên hệ
5.699.000

[Giá đã bao gồm VAT]

Đặc điểm nổi bật

Thông số kỹ thuật

  • Gaming Armor
    Power
    - Hi-Density Power Connectors (24 pin, 8 pin and 4 pin)
    Memory
    - 15μ Gold Contact in DIMM Slots
    VGA Card
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
    Internet
    - Phantom Gaming 2.5G LAN
    Cooling
    - XXL Aluminum Alloy Heatsink
    - Heat Pipe Design
    Audio
    - Creative Sound Blaster™ Cinema 5
  • Unique Feature
    ASRock USB 3.2 Gen2
    - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
    - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
    ASRock Super Alloy
    - XXL Aluminum Alloy Heatsink
    - Premium 60A Power Choke
    - 50A Dr.MOS
    - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
    - Combo Caps (Nichicon 12K Black Caps)
    - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
    - I/O Armor
    - Matte Black PCB
    - High Density Glass Fabric PCB
    ASRock Phantom Gaming 2.5G LAN
    ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
    ASRock Steel Slots
    ASRock Full Coverage M.2 Heatsink
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Ultra USB Power
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    - Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
    - Digi Power design
    - 10 Power Phase design
    - Supports Intel® Turbo Boost 2.0 Technology
    - Supports Intel® K-Series unlocked CPUs
    - Supports ASRock BCLK Full-range Overclocking
    - Supports ASRock Hyper BCLK Engine II
  • Chipset
    - Intel® Z390
  • Memory
    - Dual Channel DDR4 Memory Technology
    - 4 x DDR4 DIMM Slots
    - Supports DDR4 4300+(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 128GB*
    - Supports Intel® Extreme Memory Profile (XMP) 2.0
    - 15μ Gold Contact in DIMM Slots

    *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    - 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
    - Supports Secure Backup UEFI Technology
    - ACPI 6.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - CPU Core/Cache, GT, DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VCCPLL, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment
  • Graphics
    - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
    - DirectX 12
    - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
    - Dual graphics output: Support HDMI and DisplayPort 1.2 ports by independent display controllers
    - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
    - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
    - Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2 Ports
    - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
    - Premium Blu-ray Audio support
    - Supports Surge Protection
    - Nichicon Fine Gold Series Audio Caps
    - 120dB SNR DAC with Differential Amplifier
    - NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
    - Pure Power-In
    - Direct Drive Technology
    - PCB Isolate Shielding
    - Impedance Sensing on Rear Out port
    - Individual PCB Layers for R/L Audio Channel
    - Gold Audio Jacks
    - 15μ Gold Audio Connector
    - Supports Creative Sound Blaster™ Cinema 5
  • LAN
    1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125AG)
    - Supports Phantom Gaming LAN Software
    - Smart Auto Adjust Bandwidth Control
    - Visual User Friendly UI
    - Visual Network Usage Statistics
    - Optimized Default Setting for Game, Browser, and Streaming Modes
    - User Customized Priority Control
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
    1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
  • Slots
    - 3 x PCI Express 3.0 x16 Slots (PCIE1/PCIE4/PCIE6: single at x16 (PCIE1); dual at x8 (PCIE1) / x8 (PCIE4); triple at x8 (PCIE1) / x8 (PCIE4) / x4 (PCIE6))*
    - 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
    - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
    - Supports NVIDIA® Quad SLI™ and SLI™
    - Supports NVIDIA® NVLink™ with dual NVIDIA® GeForce RTX series graphics cards**
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    *Supports NVMe SSD as boot disks

    **NVIDIA® NVLink™ Bridge does not come with the package. Please purchase it from NVIDIA® if necessary.
  • Storage
    - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 16), NCQ, AHCI and Hot Plug*
    - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
    - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
    - 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    *M2_1, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled.
    M2_2, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will be disabled.

    **Supports Intel® Optane™ Technology
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • Connector
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 2 x RGB LED Headers*
    - 1 x Addressable LED Header**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
    - 1 x Thunderbolt™ AIC Connector (5-pin)
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel® Z390) (Supports ESD Protection)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
    - 1 x Front Panel Type C USB 3.2 Gen1 Header (Intel® Z390) (Supports ESD Protection)
    - 1 x Performance Mode / Easy OC Header
    - 1 x Dr. Debug with LED
    - 1 x Power Button with LED
    - 1 x Reset Button with LED

    *Support in total up to 12V/3A, 36W LED Strip

    **Supports in total up to 5V/3A, 15W LED Strip

    ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

    *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    - 2 x Antenna Ports (on I/O Panel Shield)
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x HDMI Port
    - 1 x DisplayPort 1.2
    - 1 x Optical SPDIF Out Port
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
    - 4 x USB 3.2 Gen1 Ports (Intel® Z390) (Supports ESD Protection)*
    - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

    *Ultra USB Power is supported on USB3_34 ports.
    ACPI wake-up function is not supported on USB3_34 ports.
  • Software and UEFI
    Software
    - ASRock Phantom Gaming Tuning
    - ASRock Phantom Gaming LAN
    - ASRock Polychrome SYNC
    - ASRock Key Master*
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash
    - ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    - Quick Installation Guide, Support CD
    - 4 x SATA Data Cables
    - 1 x ASRock SLI_HB_Bridge_2S Card
    - 3 x Screws for M.2 Sockets
    - 2 x Standoffs for M.2 Sockets
  • Hardware Monitor
    - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST, VCCIO
  • Form Factor
    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
  • OS
    - Microsoft® Windows® 10 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
Kích thước Mainboard
  • ATX
Số khe cắm RAM
  • 4 khe
Chipset
  • Intel Z390
Socket
  • 1151

Hình ảnh

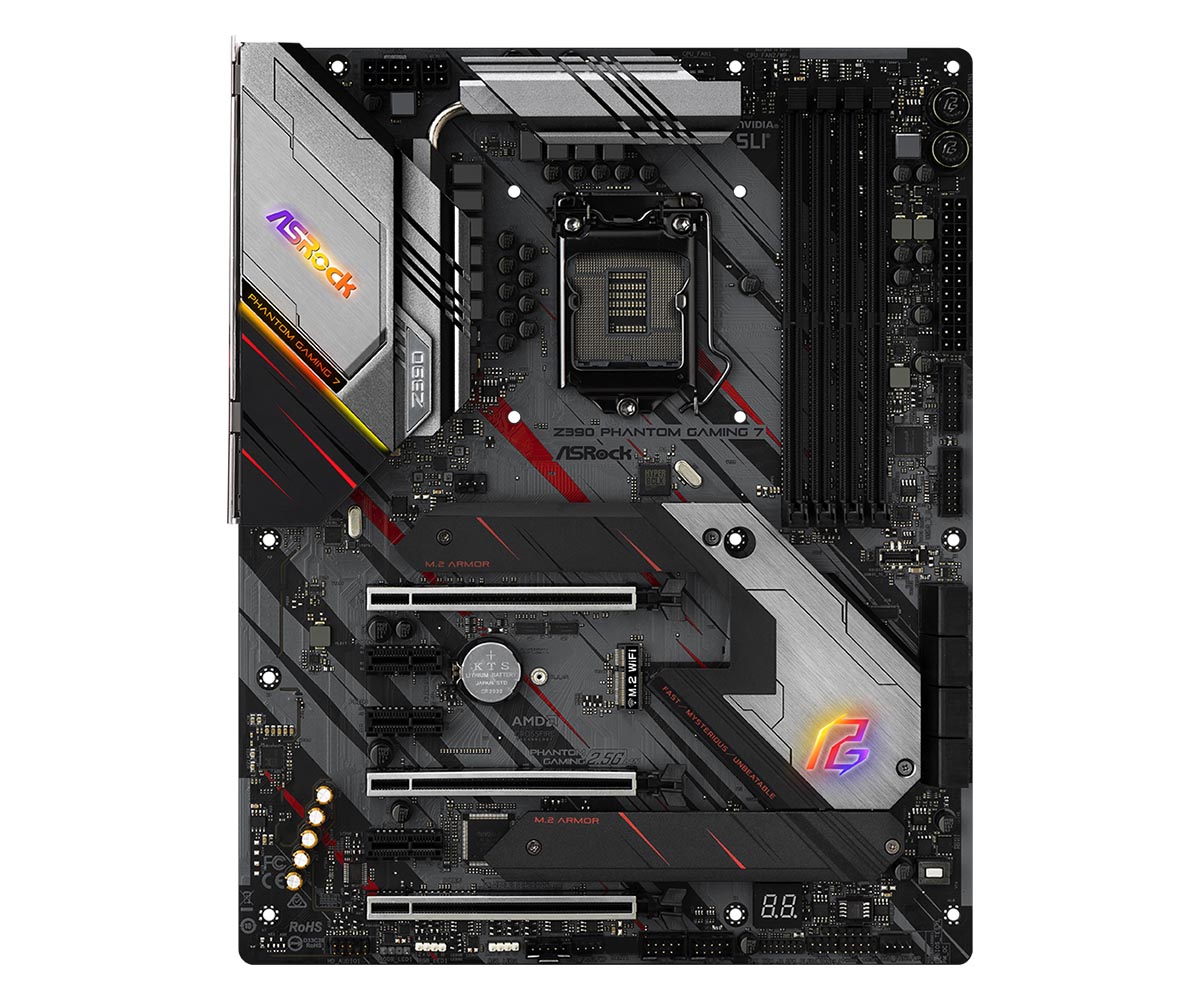

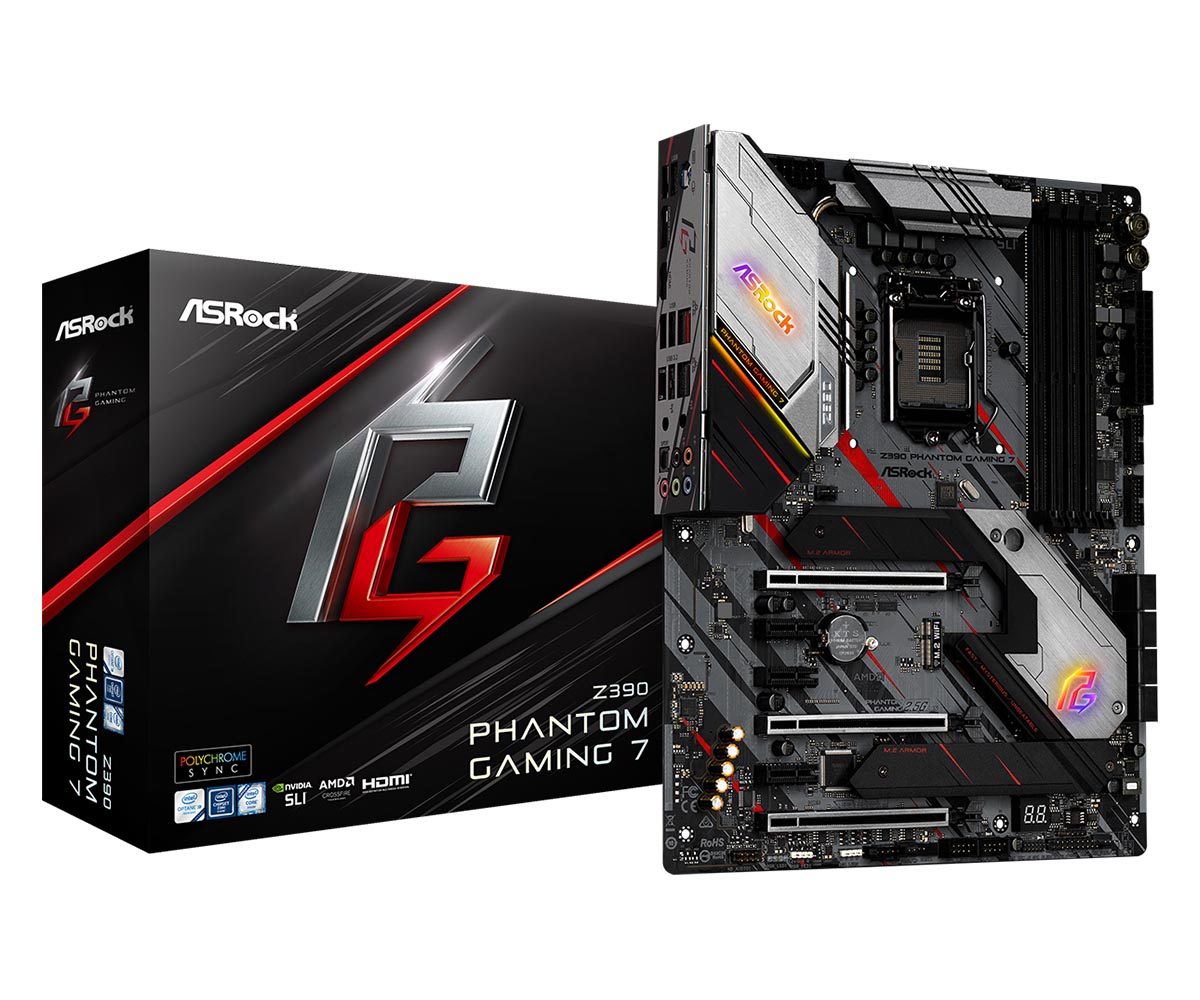

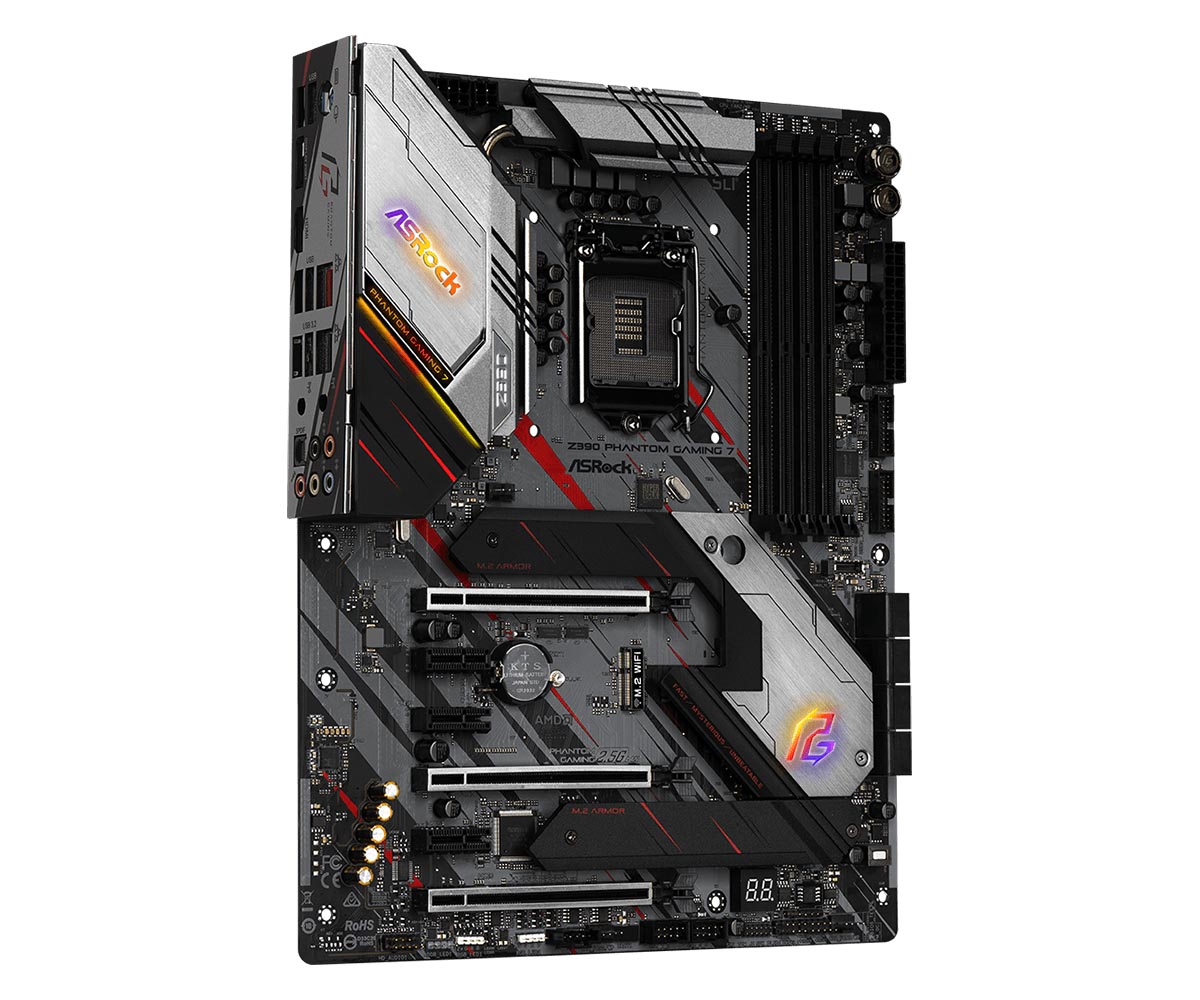

Mainboard Asrock Z390 Phantom Gaming 7
Mainboard Asrock Z390 Phantom Gaming 7
Mainboard Asrock Z390 Phantom Gaming 7
Mainboard Asrock Z390 Phantom Gaming 7
Mainboard Asrock Z390 Phantom Gaming 7

Video

Đánh giá

avatar
x
Đánh giá:

Sản phẩm liên quan

  • Mainboard Asus ROG STRIX Z390-I GAMING
    Giá bán: 5.590.000 [Đã bao gồm VAT]
    Bảo hành:36 Tháng
    Kho hàng: Liên hệ
    Mô tả tóm tắt:
    Intel Z390 LGA 1151 mini-ITX gaming motherboard with integrated I/O shield & VRM heatsink, Intel Wi-Fi, DDR4 4600+ , M.2, SATA 6Gbps, HDMI 2.0, and USB 3.1 Gen 2
    LGA1151 socket for 9th/ 8th Gen Intel® Core™ desktop processors
    Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
    Comprehensive cooling: Integrated I/O shield and VRM heatsink, Double decker M.2 heatsink
    5-Way Optimization: Automated system-wide tuning, providing AI overclocking and cooling profiles tailor-made for your rig
  • Mainboard Asrock X570 Phantom Gaming-ITX/TB3
    Giá bán: 6.599.000 [Đã bao gồm VAT]
    Bảo hành:36 Tháng
    Kho hàng: Liên hệ
    Mô tả tóm tắt:
    X570 Phantom Gaming-ITX/TB3
    Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
    Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0
    Intel® Gigabit LAN
    Supports DDR4 4533+ (OC)
  • Mainboard Asrock Z390M-ITX/ac
    Giá bán: 3.999.000 [Đã bao gồm VAT]
    Bảo hành:36 Tháng
    Kho hàng: Liên hệ
    Mô tả tóm tắt:
    Z390M-ITX/ac
    Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
    Supports DDR4 4000MHz+ (OC)
    1 PCIe 3.0 x16
    Graphics Output Options: 2 x HDMI, DisplayPort
  • Mainboard MSI A320M PRO M2 V2
    Giá bán: 1.399.000 [Đã bao gồm VAT]
    Bảo hành:36 Tháng
    Kho hàng: Liên hệ
    Mô tả tóm tắt:
    Hỗ trợ bộ vi xử lý AMD® Ryzen thế hệ 1 và 2 / Ryzen™ Athlon™ với nhân đồ họa Radeon™ Vega / Các bộ vi xử lý A-series và Athlon™ X4 cho Socket AM4
    Hỗ trợ bộ nhớ RAM DDR4 , bus lên tới 3200+ (OC) MHz
    Khe cắm Turbo M.2: Chạy ở làn PCI-E Gen3 x4 tối đa hóa hiệu suất cho SSD NVMe
    DDR4 Boost: Công nghệ tiên tiến cung cấp khả năng truyền dữ liệu nhanh và ổn định nhất.
    Công nghệ âm thanh Audio Boost: Trải nghiệm âm thanh với chất lượng phòng thu
  • Mainboard MSI H310M PRO-VH Plus
    Giá bán: 1.499.000 [Đã bao gồm VAT]
    Bảo hành:36 Tháng
    Kho hàng: Liên hệ
    Mô tả tóm tắt:
    Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
    Supports DDR4 Memory, up to 2666MHz
    Audio Boost: Reward your ears with studio grade sound quality.
    EZ Debug LED: Easiest way to troubleshoot.
    PCI-E Steel Armor: Protecting VGA cards against bending and EMI for better performance,stability and strength.
  • Mainboard MSI H310M PRO-VD Plus
    Giá bán: 1.399.000 [Đã bao gồm VAT]
    Bảo hành:36 Tháng
    Kho hàng: Liên hệ
    Mô tả tóm tắt:
    Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
    Supports DDR4 Memory, up to 2666MHz
    Audio Boost: Reward your ears with studio grade sound quality.
    EZ Debug LED: Easiest way to troubleshoot.
    PCI-E Steel Armor: Protecting VGA cards against bending and EMI for better performance,stability and strength.
  • Mainboard MSI H110M PRO-D
    Giá bán: 1.299.000 [Đã bao gồm VAT]
    Bảo hành:36 Tháng
    Kho hàng: Liên hệ
    Mô tả tóm tắt:
    Hỗ trợ vi xử lý 6th Gen Intel® Core™ / Pentium® / Celeron® với socket LGA 1151
    Hỗ trợ Ram DDR4-2133.
    DDR4 Boost: Tăng cao hiệu năng cho Ram DDR4
    USB 3.1 Gen1 + SATA 6Gb/s
    VGA Armor: Khe cắm được gia cố bằng thép
  • Mainboard MSI Z390-A PRO
    2.999.000
    3.199.000 VND
    -6%
    Mainboard MSI Z390-A PRO
    Giỏ hàng
    Mainboard MSI Z390-A PRO
    Giá bán: 2.999.000 [Đã bao gồm VAT]
    Bảo hành:36 Tháng
    Kho hàng: Liên hệ
    Mô tả tóm tắt:
    Inspired from architectural design with the extended heatsink for having better thermal solution; also Intel CNVi ready, Core Boost, DDR4 Boost, Core Boost, Turbo M.2 and USB 3.1 Gen2 connector
    Supports 9th / 8th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1151 socket
    Supports DDR4 Memory, up to 4400(OC) MHz
    Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
    Set Core Power Free: Core Boost, 8+4 pin CPU power connector, Core Boost, DDR4 Boost
GIÁ TƯƠNG ĐƯƠNG
GLAND Channel
Tổng đài trợ giúp

Nhanh chóng - tiện lợi - hài lòng

Bán hàng Online

Góp ý, thắc mắc, khiếu nại

cskh@gland.vn 092.219.2919 - 024.3537.4653

Giỏ hàng của bạn
0 sản phẩm
