Mainboard ASROCK B660M-HDVP/D5

(0 lượt đánh giá)     Mã hàng: 0      Lượt xem: 7      Tình trạng hàng: Liên hệ

Gland Computer cam kết:
Hàng chính hãng
Thanh toán linh hoạt
Bảo hành tại nơi sử dụng
Giao hàng toàn quốc
Tư vấn - đặt hàng
Mrs Trang: 098.499.1534
Mr Kiệt: 079.752.2228
Mr Dũng: 092.219.2919
Đặc điểm nổi bật:
Supports 12th Gen Intel® Core™ Processors (LGA1700) 5 Phase Power Design Supports DDR5 Memory Technology 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 PCI Graphics Output Options: HDMI, DisplayPort, D-Sub, DVI Realtek ALC897 7.1 CH HD Audio Codec 4 SATA3 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) 6 USB 3.2 Gen1 (2 Front, 4 Rear) 6 USB 2.0 (4 Front, 2 Rear) Realtek Gigabit LAN

Bảo hành: 36 Tháng
Giá khuyến mãi: Liên hệ [Giá đã có VAT]


Đánh giá & Nhận xét về Mainboard ASROCK B660M-HDVP/D5

0/5

đánh giá & nhận xét
  • 5 sao
  • 4 sao
  • 3 sao
  • 2 sao
  • 1 sao

Bạn đã dùng sản phẩm này?

Gửi đánh giá của bạn

Gửi nhận xét của bạn

Gửi đánh giá Hủy

Hỏi và đáp (0 bình luận)

Thông số kỹ thuật
  • Unique Feature
    ASRock Super Alloy
    - Premium Power Choke
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    - Supports 12th Gen Intel® Core™ Processors (LGA1700)
    - 5 Power Phase design
    - Supports Intel® Hybrid Technology
    - Supports Intel® Turbo Boost Max 3.0 Technology
  • Chipset
    - Intel® B660
  • Memory
    - Dual Channel DDR5 Memory Technology
    - 2 x DDR5 DIMM Slots
    - Supports DDR5 non-ECC, un-buffered memory*
    - Max. capacity of system memory: 64GB
    - Supports Intel® Extreme Memory Profile (XMP) 3.0

    *Supports DDR5 4800 (1DPC) natively.
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 6.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - CPU Core/Cache, CPU GT, VDD_CPU, VDD_IMC, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
  • Graphics
    - Intel® Xe Graphics Architecture (Gen 12)
    - Four graphics output options: D-Sub, DVI-D, HDMI and DisplayPort 1.4
    - Supports Quad Monitor
    - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
    - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    - Supports Surge Protection
  • LAN
    - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    - Realtek RTL8111H
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
  • Slots
    - 1 x PCIe Gen4x16 Slot*
    - 2 x PCIe Gen3x1 Slots
    - 1 x PCI Slot

    *Supports NVMe SSD as boot disks
  • Storage
    - 4 x SATA3 6.0 Gb/s Connectors*
    - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3 x4 (32 Gb/s) mode**

    *If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

    **Supports Intel® Optane™ Technology
    Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • RAID
    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Connector
    - 1 x Print Port Header
    - 1 x COM Port Header
    - 1 x SPI TPM Header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x CPU Fan Connector (4-pin)*
    - 1 x Chassis Fan Connector (4-pin)**
    - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

    *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    **The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power.

    ***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

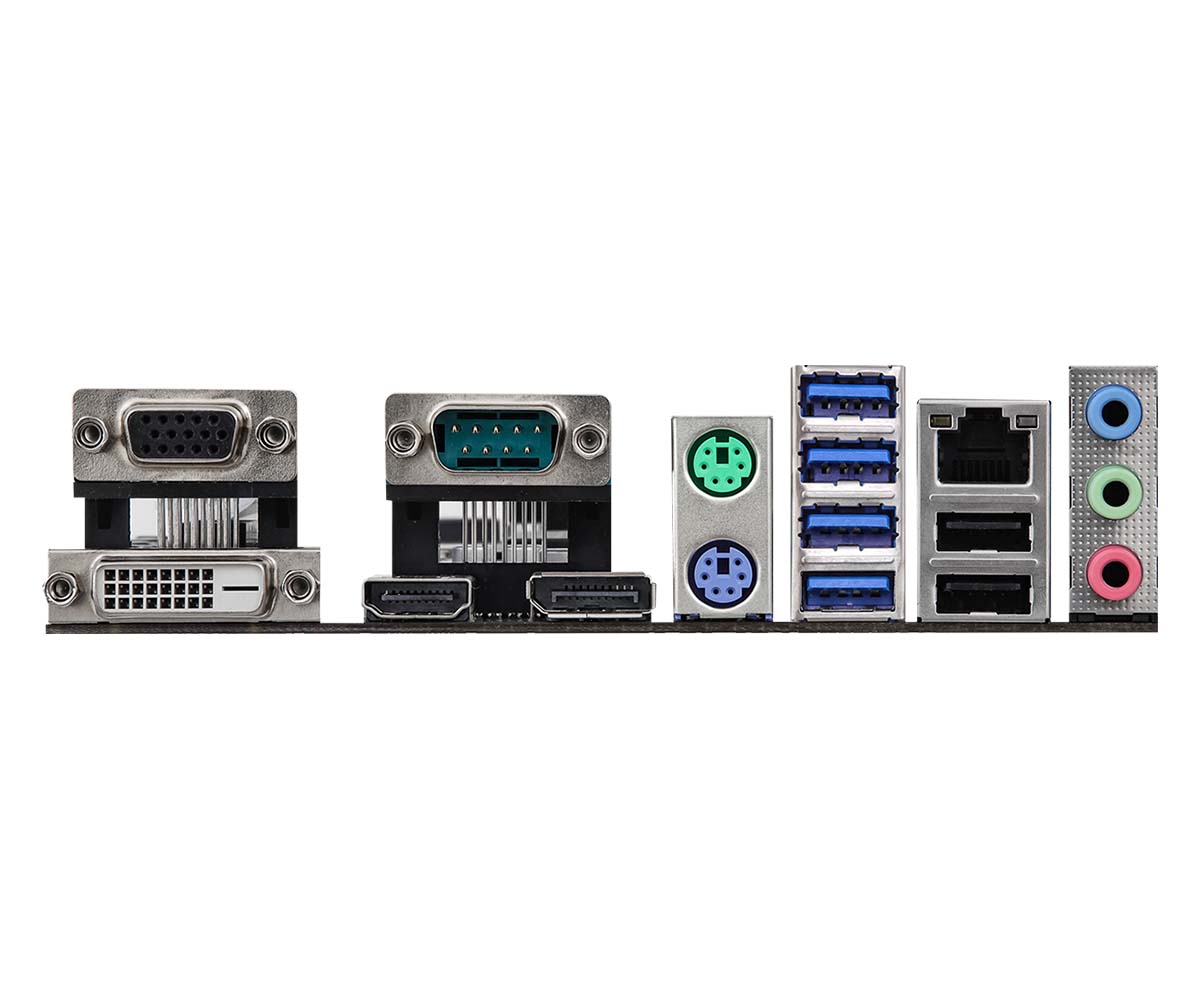

  • Rear Panel I/O
    - 1 x PS/2 Keyboard Port
    - 1 x PS/2 Mouse Port
    - 1 x Serial Port: COM1
    - 1 x D-Sub Port
    - 1 x DVI-D Port
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    - 2 x USB 2.0 Ports (Supports ESD Protection)
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash
    - ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version)
  • Accessories
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
    - 1 x Screw for M.2 Socket
  • Hardware Monitor
    - Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
    - Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
    - CASE OPEN detection
    - Voltage monitoring: CPU Vcore, +1.05V_PCH, VDD_CPU, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V, VCCSA
  • Form Factor
    - Micro ATX Form Factor: 9.6-in x 7.8-in, 24.3 cm x 19.8 cm
    - Solid Capacitor design
  • OS
    - Microsoft® Windows® 10 64-bit / 11 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
