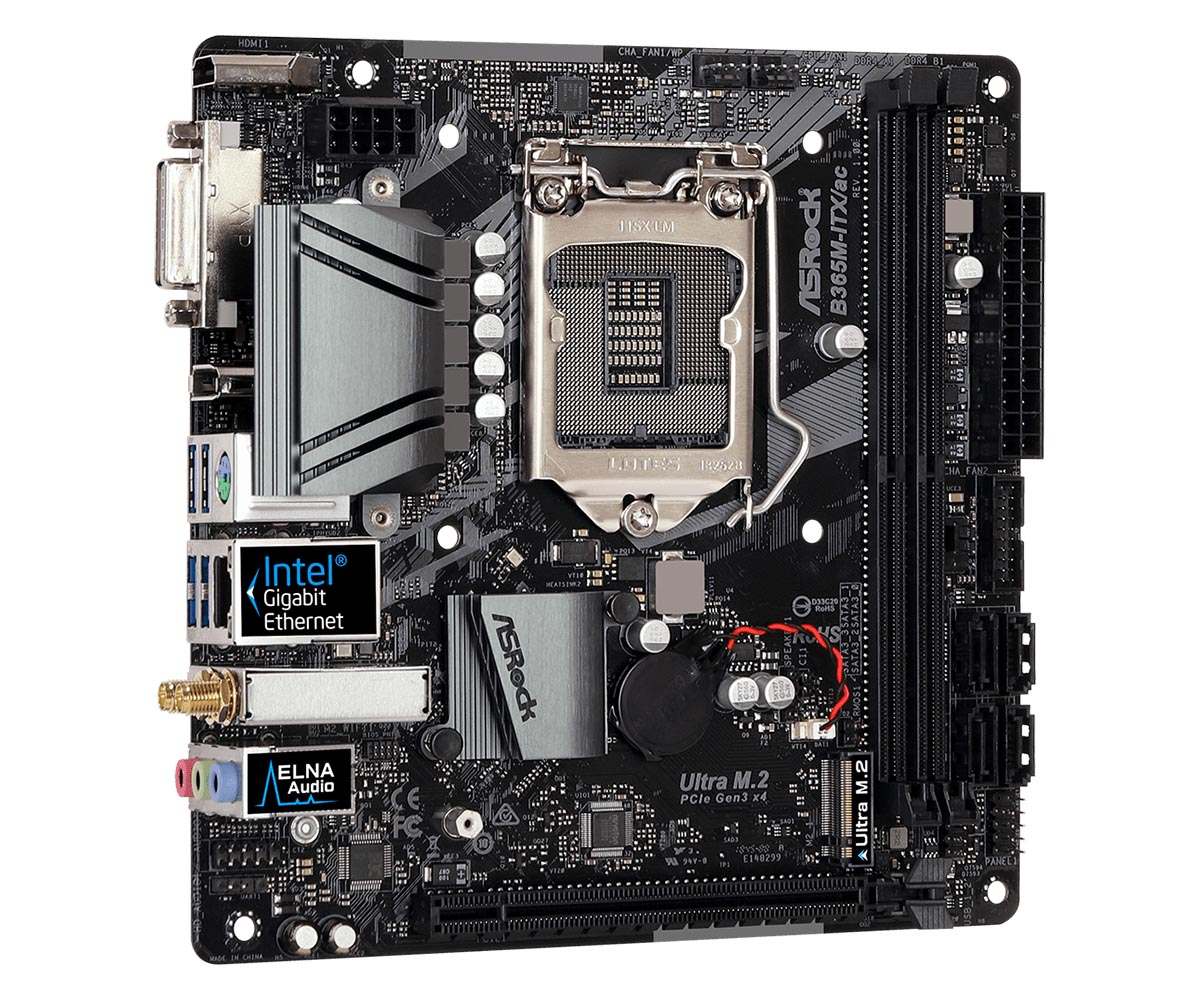

Mainboard Asrock B365M-ITX/ac

Mainboard Asrock B365M-ITX/ac

Mã SP: SP002159           rate                  Lượt xem: 1914 lượt
Mô tả sản phẩm:
Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
Supports DDR4 2666
1 PCIe 3.0 x16
Graphics Output Options: HDMI, DVI-I, DisplayPort
7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
6 USB 3.1 Gen1 (2 Front, 4 Rear)
Intel® Gigabit LAN
Intel® 802.11ac WiFi + BT 4.2

Xem thêm

Bảo hành: 36 Tháng
Kho hàng: Còn hàng tại 38 Thái Hà
2.799.000

Giá chính hãng: 2.990.000 đ -6%

Tiết kiệm: 191.000 đ

[Giá đã bao gồm VAT]
QUÀ TẶNG / KHUYẾN MẠI
Tặng bàn di chuột ASRock

Đặc điểm nổi bật

Thông số kỹ thuật

  • Unique Feature
    ASRock Super Alloy
    - Premium 60A Power Choke
    - Dual-Stack MOSFET (DSM)
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    Intel® 802.11ac WiFi
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection (for USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    - Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
    - Supports CPU up to 95W
    - Digi Power design
    - 5 Power Phase design
    - Supports Intel® Turbo Boost 2.0 Technology
  • Chipset
    - Intel® B365
  • Memory
    - Dual Channel DDR4 Memory Technology
    - 2 x DDR4 DIMM Slots
    - Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 64GB*
    - Supports Intel® Extreme Memory Profile (XMP) 2.0
    - 15μ Gold Contact in DIMM Slots

    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 6.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - CPU, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment
  • Graphics
    - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
    - DirectX 12
    - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
    - Three graphics output options: DVI-I, HDMI and DisplayPort 1.2
    - Supports Triple Monitor
    - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
    - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
    - Supports DVI-I with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
    - Supports HDCP 2.2 with DVI-I, HDMI 1.4 and DisplayPort 1.2 Ports
    - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
    - Supports Surge Protection
    - ELNA Audio Caps

    *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    - Giga PHY Intel® I219V
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
  • Wireless LAN
    - Intel® 802.11ac WiFi Module
    - Supports IEEE 802.11a/b/g/n/ac
    - Supports Dual-Band (2.4/5 GHz)
    - Supports high speed wireless connections up to 433Mbps
    - Supports Bluetooth 4.2 / 3.0 + High speed class II
  • Slots
    - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
    - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)

    *Supports NVMe SSD as boot disks
  • Storage
    - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
    - 1 x Ultra M.2 Socket, supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

    *Supports Intel® Optane™ Technology
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • Connector
    - 1 x Chassis Intrusion Header
    - 1 x CPU Fan Connector (4-pin)*
    - 1 x Chassis Fan Connector (4-pin)**
    - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
    - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

    *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    **The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

    ***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    - 2 x Antenna Ports
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x DVI-I Port
    - 1 x HDMI Port
    - 1 x DisplayPort 1.2
    - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock A-Tuning
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
    - 2 x ASRock WiFi 2.4/5 GHz Antennas
    - 1 x Screw for M.2 Socket
  • Hardware Monitor
    - Temperature Sensing: CPU, Chassis, Chassis/Water Pump Fans
    - Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
    - Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
    - CASE OPEN detection
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
  • Form Factor
    - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
    - Solid Capacitor design
  • OS
    - Microsoft® Windows® 10 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
Socket
  • 1151
Số khe cắm RAM
  • 2 khe
Kích thước Mainboard
  • ITX
Chipset
  • Intel B365

Hình ảnh

Mainboard Asrock B365M-ITX/ac
Mainboard Asrock B365M-ITX/ac
Mainboard Asrock B365M-ITX/ac
Mainboard Asrock B365M-ITX/ac
Mainboard Asrock B365M-ITX/ac
