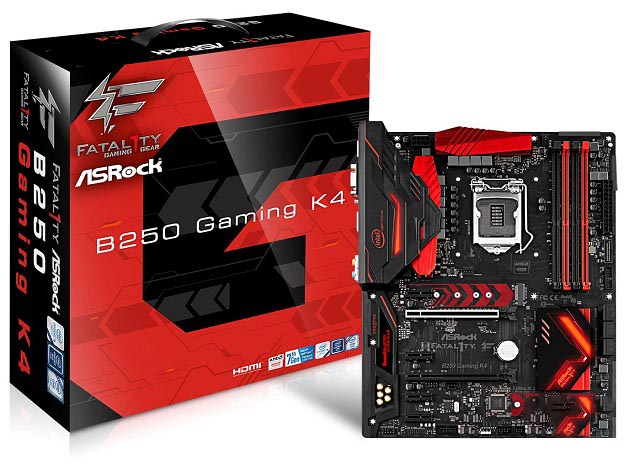

Mainboard Asrock B250 Gaming K4

Mô tả chi tiết

Hãng sản xuất

Asrock

Chủng loại

Asrock B250 Gaming K4

CPU hỗ trợ

- Supports 7^th and 6^th Generation Intel^® Core™ i7/i5/i3/Pentium^®/Celeron^® Processors (Socket 1151)
- Digi Power design
- 8 Power Phase design
- Supports Intel^® Turbo Boost 2.0 Technology

Chipset

- Intel^® B250

Bộ nhớ trong

- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 2400/2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB**
- Supports Intel^® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots

VGA onboard

- Supports Intel^® HD Graphics Built-in Visuals : Intel^® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel^® InTru™ 3D, Intel^® Clear Video HD Technology, Intel^® Insider™, Intel^® HD Graphics
- Gen9 LP, DX11.3, DX12
- HWAEncode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7^th Gen Intel^® CPU)
- HWA Encode/Decode: VP8, HEVC 8b; GPU/SWEncode/Decode: VP9, HEVC 10b (For 6^th Gen Intel^® CPU)
- Max. shared memory 1024MB**
- Three graphics output options: D-Sub, DVI-D and HDMI

Âm thanh

- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC with Differential Amplifier

Khe mở rộng

- 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)*
- 4 x PCI Express 3.0 x1 Slots (Flexible PCIe)*
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module**
- 15μ Gold Contact in VGA PCIe Slot (PCIE2)

Chuẩn lưu trữ

- 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*
- 1 x Ultra M.2 Socket (M2_1), supports type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
- 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**

Cổng giao tiếp trước và sau

- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
- 3 x USB 3.0 Type-A Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Type-C Port (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

Công nghệ tích hợp

Software
- ASRock AURA RGB LED
- ASRock Key Master
- ASRock APP Charger
- ASRock XFast LAN*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock UEFI Tech Service

Kích thước

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

Phụ kiện đi kèm

Hộp / Sách hướng dẫn sử dụng / Đĩa Driver / Cable tín hiệu Sata / Chặn main
