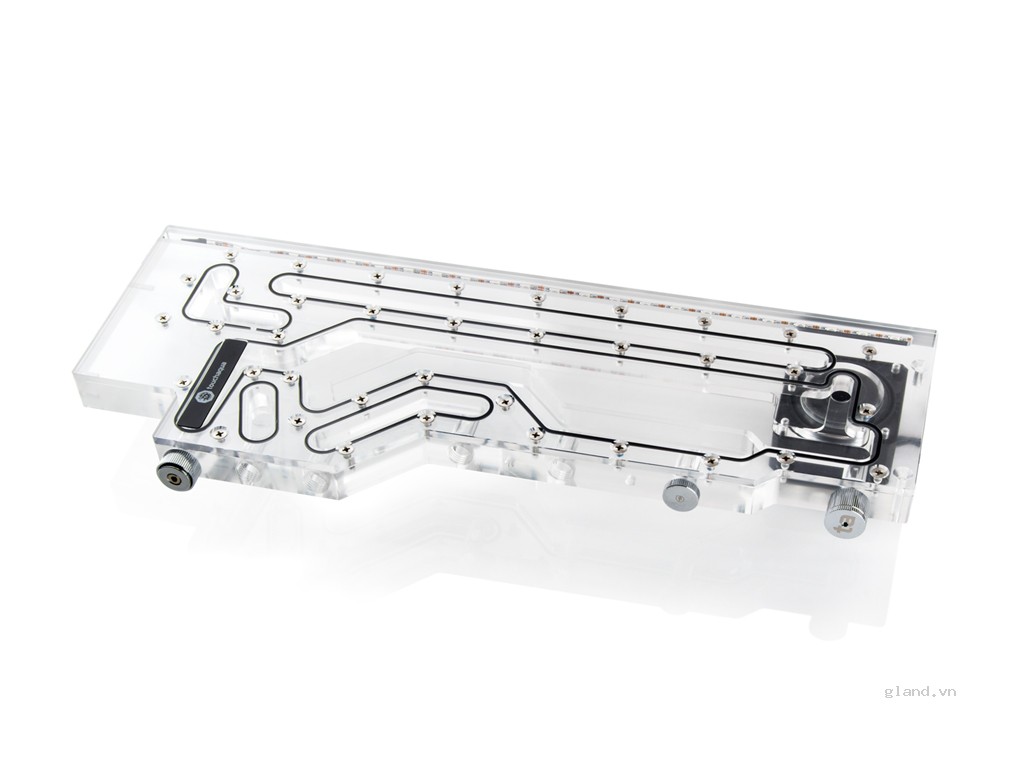

Bitspower Touchaqua Sedna 570X for Corsair Crystal 570X RGB Case
Owners of Corsair Crystal 570X RGB cases, Bitspower has you covered for your water reservoir and pump needs with the Bitspower Touchaqua Sedna 570X. While being a perfect fit within this mid-size chassis, the reservoir’s PWM enabled S1 pump is dissimulated at the back in order to provide an unaltered look to your PC.
With novice modders in mind, Bitspower designed a reservoir that is easy to install while providing a professional look. Equipped with multiple water inlets and outlets to route the water from the radiator to the VGA than the CPU, this reservoirs also gives you more playroom for the graphics card location with a dual inlet/outlet designed to prevent having to bend more tubes and create a cleaner look to your loop.
The Bitspower Touchaqua Sedna 570X, equipped with Bitspower Digital RGB, is sure to become the center of attention of your case with bright LEDs that are certified by ASUS AURA Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome.
Dimension ( LxWxH ) : 430 x165 x53 mm
LED Color : Digital RGB
LED Strip Management By Bitspower Digital RGB And Certified By ASUS AURA Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, ASRock Polychrome and Razer Chroma
Corsair Crystal 570X RGB
1set of BPTA-COR570X-PWM
2pcs of BPTA-F06-GS
1pcs of BPTA-EFW-GS
1pcs of BPTA-EXAIR-GS
1pcs of Bracket
1set of Mounting Screws
S1 Pump Spec.
Rated voltage：12V DC
Maximum system temperature：60℃
Electric Connector：Molex 4 Pin
If there aren’t enough DRGB headers on the motherboard, you can use the "Bitspower Touchaqua Digital RGB Multi Function Controller", which is available for purchase via the link below:
I wanna show off, but what's the support I'd need?
The end of Power supply is 4PIN.The sequence is +/G/R/B (some motherboards are shown +12V/G/R/B). Please plug in the corresponding direction of motherboard, controller or the wire integrator for one to many. If choosing the motherboard as the power supply, the light effect can be synchronize with MB.
The end of power supply is 3PIN. The sequence is +/D/↓ (some motherboards are shown +5V/D/↓, and the plug is like 4PIN but the 3rd PIN is empty). Please plug in the corresponding direction of motherboard, controller or the wire integrator for one to many. If choosing the motherboard as the power supply, the light effect can be synchronize with MB.
