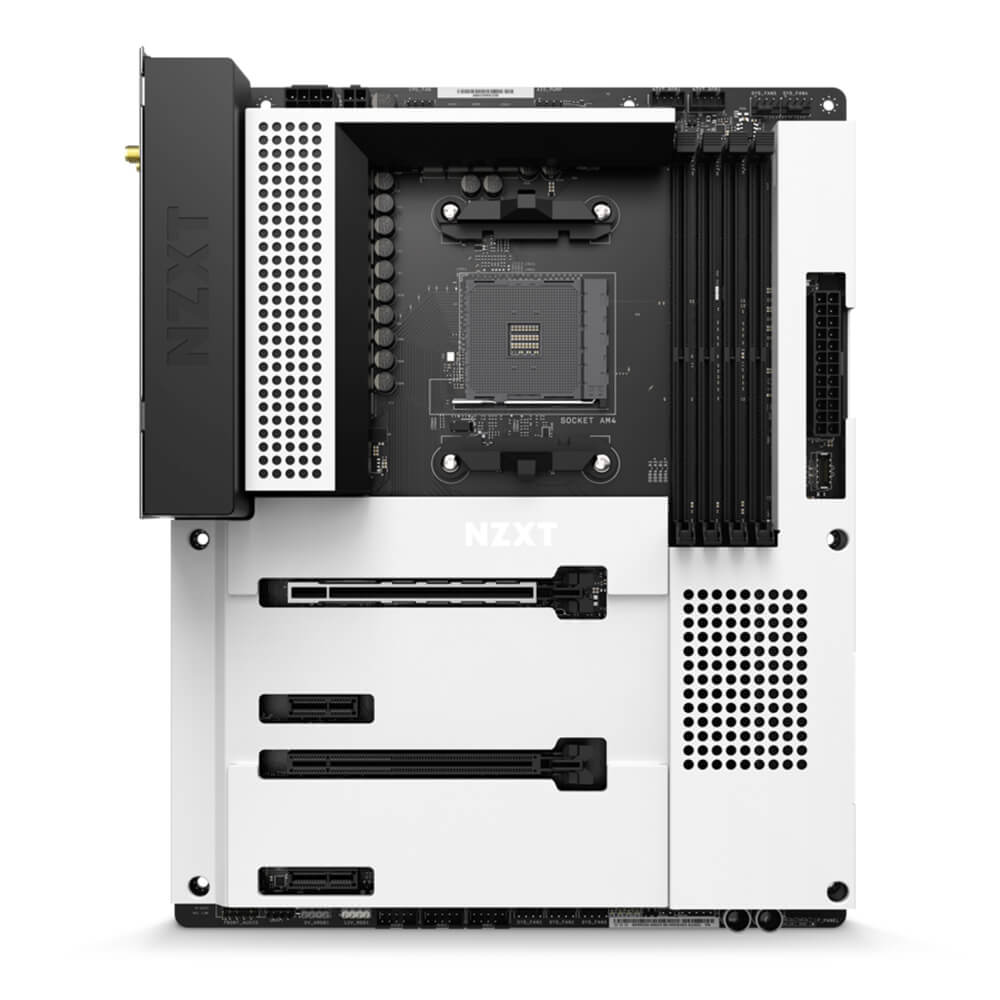

Mainboard NZXT N7 B550 MATTE WHITE

CPU

• AMD Socket AM4 Ryzen™ Processors (3000, 4000, and 5000 Series Processors)

  Supported

• AMD Ryzen™ 5 3400G and Ryzen™ 3200G

  Not Supported

Chipset

• AMD®

  B550

Memory

• DIMM Slots

  4

• Max Memory Support

  128GB

• Memory Architecture

  Dual-Channel

• OC Frequency (Vermeer CPUs)

  4666+ MHz

• OC Frequency (Matisse CPUs)

  4666+ MHz

• OC Frequency (Renoir APUs)

  4733+ MHz

• Base Frequency

  3200/ 2933/ 2667/ 2400/ 2133

• Type

  ECC & non-ECC, un-buffered memory

• XMP Support

  Supported

Integrated Graphics

• AMD Radeon™ Vega Series Graphics in Ryzen Series APU

  HDMI

• HDMI Max Resolution

  4096x2160@60Hz

• Max Shared Memory

  16GB with 32GB installed

• Microsoft PlayReady®

  Supported

Multi-GPU Support

• AMD 2-Way CrossFireX™ Technology

  Supported

Expansion Slots

• PCIe x16 (x16 mode)

  1 (Vermeer & Matisse - PCIe 4.0, Renoir - PCIe 3.0)

• PCIe x16 (x4 mode)

  1

• PCIe 3.0 x1

  2

Storage (Chipset)

• M.2 Type 2242/2260/2280 (x4 mode)

  1 (Vermeer & Matisse - PCIe 4.0, Renoir - PCIe 3.0)

• M.2 Type 2242/2260/2280 (PCIe 3.0 x2 & SATA mode)

  1

• SATA 6Gb/s

  6* (M2_2 and SATA3_5_6 share lanes)

• RAID 0/1/5/10 Support

  Supported

LAN

• Realtek®

  RTL8125BG 2.5G

Wireless

• Intel® Dual-Band Wireless

  AX210 Wi-Fi 6E

• Protocol

  802.11 a/b/g/n/ac/ax

• Frequency Bands

  2.4 / 5 / 6GHz

• MU-MIMO Support

  Supported

• Bluetooth

  V5.2

Audio

• Realtek®

  ALC1220 Codec

• Channels

  8-Channel High Definition Audio

• Playback

  32-bit / 192kHz DAC

• Capacitors

  Nichicon Fine Gold Series

Rear I/O

• USB 3.2 Gen 2 (Type-C)

  1

• USB 3.2 Gen 2 (Type-A)

  3

• USB 3.2 Gen 1 (Type-A)

  4

• USB 2.0

  2

• HDMI™ 2.1

  1

• Wireless Antenna

  2 (2T2R)

• LAN (RJ45) Port

  1

• 5.1-Channel Audio Jacks

  1

• Optical S/PDIF

  1

• BIOS Flashback Button

  1

• Clear CMOS Button

  1

Internal I/O

• M.2 (M Key), Type 2242/2260/2280

  1 (PCIe 4.0/3.0 x4 mode), 1 (PCIe 3.0 x2 & SATA mode)

• M.2 (E Key) (For wireless cards)

  1

• SATA 6Gbps Ports

  6

• USB 3.2 Gen 2 Header (Type-C)

  1

• USB 3.2 Gen 1 Header

  1 (Up to 2 ports)

• USB 2.0 Header

  3 (Up to 6 ports)

• Front Panel Audio

  1

• CPU_FAN Connector

  1 (Up to 24W)

• AIO_PUMP Connector

  1 (Up to 24W)

• SYS_FAN Connector

  5 (Up to 24W)

• NZXT RGB LED Header

  2

• 5V ARGB Header

  1

• 12V RGB Header

  1

• 24-pin EATX Power

  1

• 8-pin ATX 12V Power

  1

• 4-pin ATX 12V Power

  1

• Power Button

  1

• Reset Button

  1

• POST LEDs

  4

General

• Operating System

  Windows® 10 64-bit

• Form Factor

  ATX

• Warranty

  3 years

• Model Number

  N7-B55XT-W1

• UPC

  815671015235

• EAN

  5060301696680
