| Tên gọi |

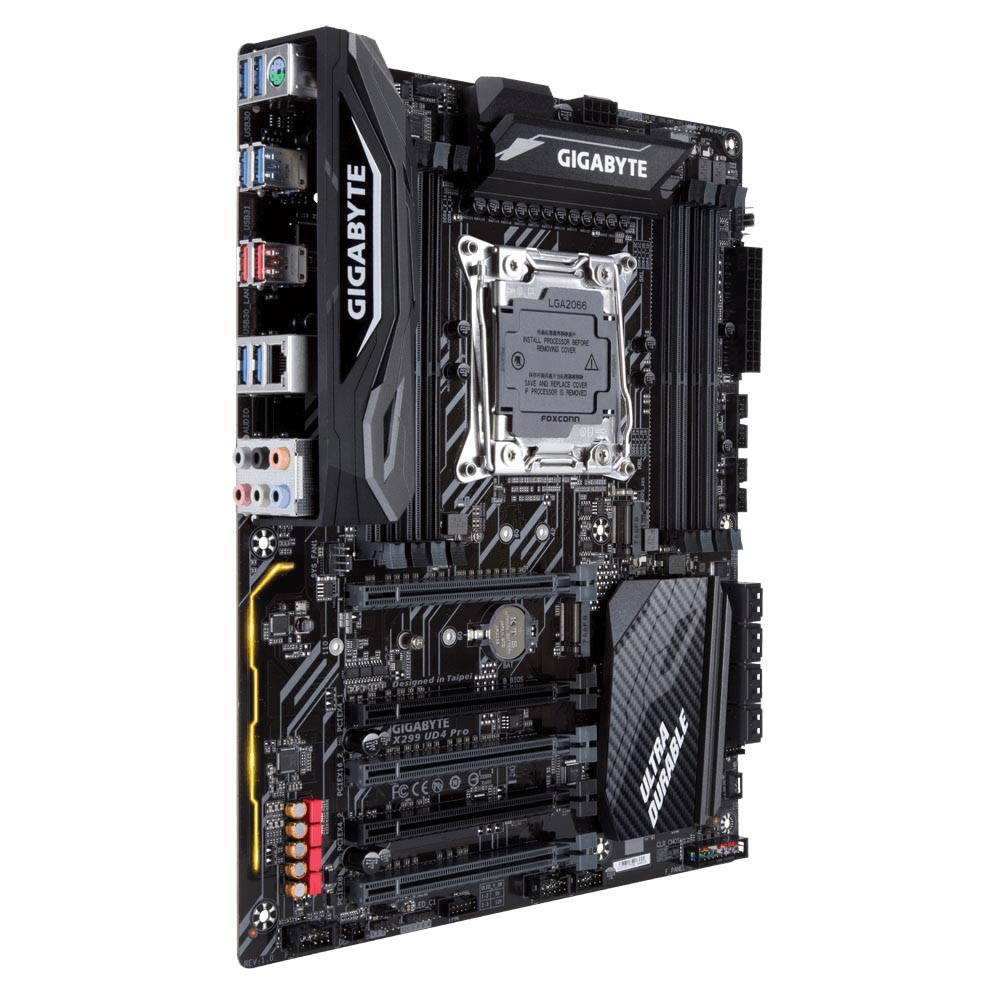

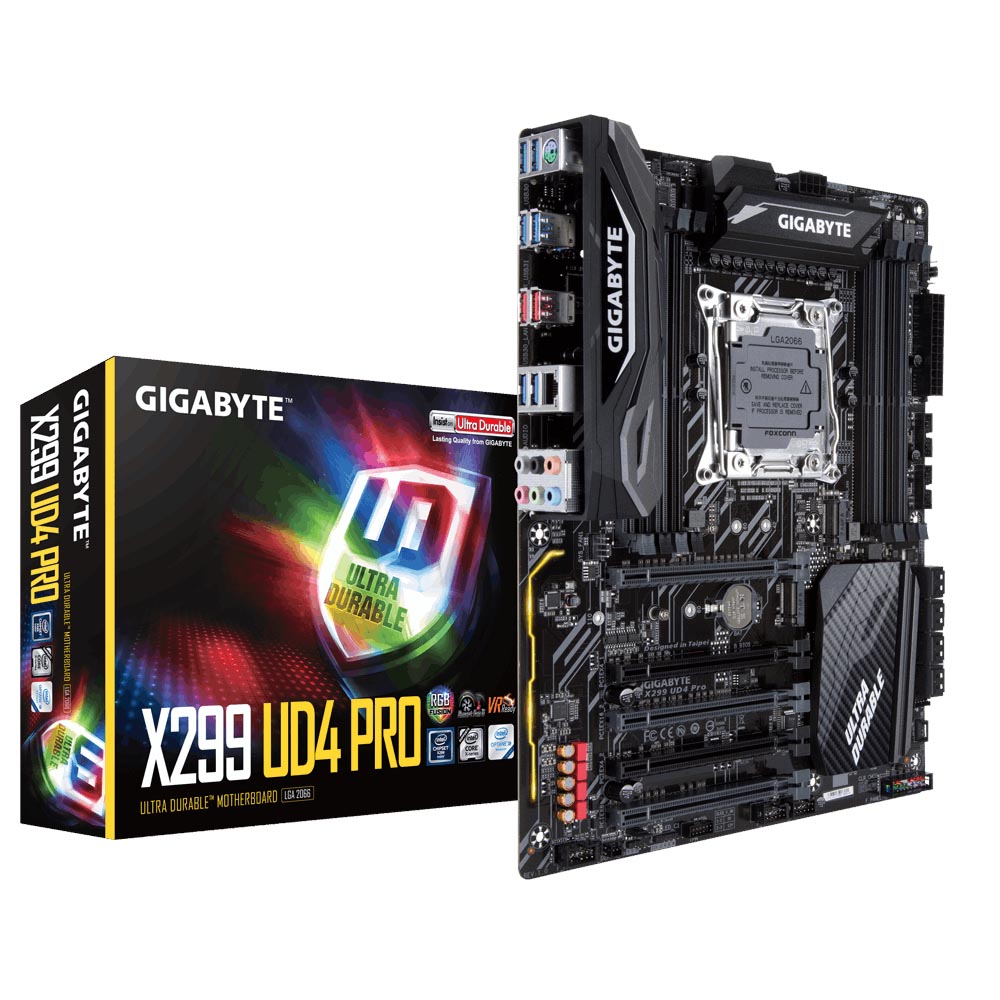

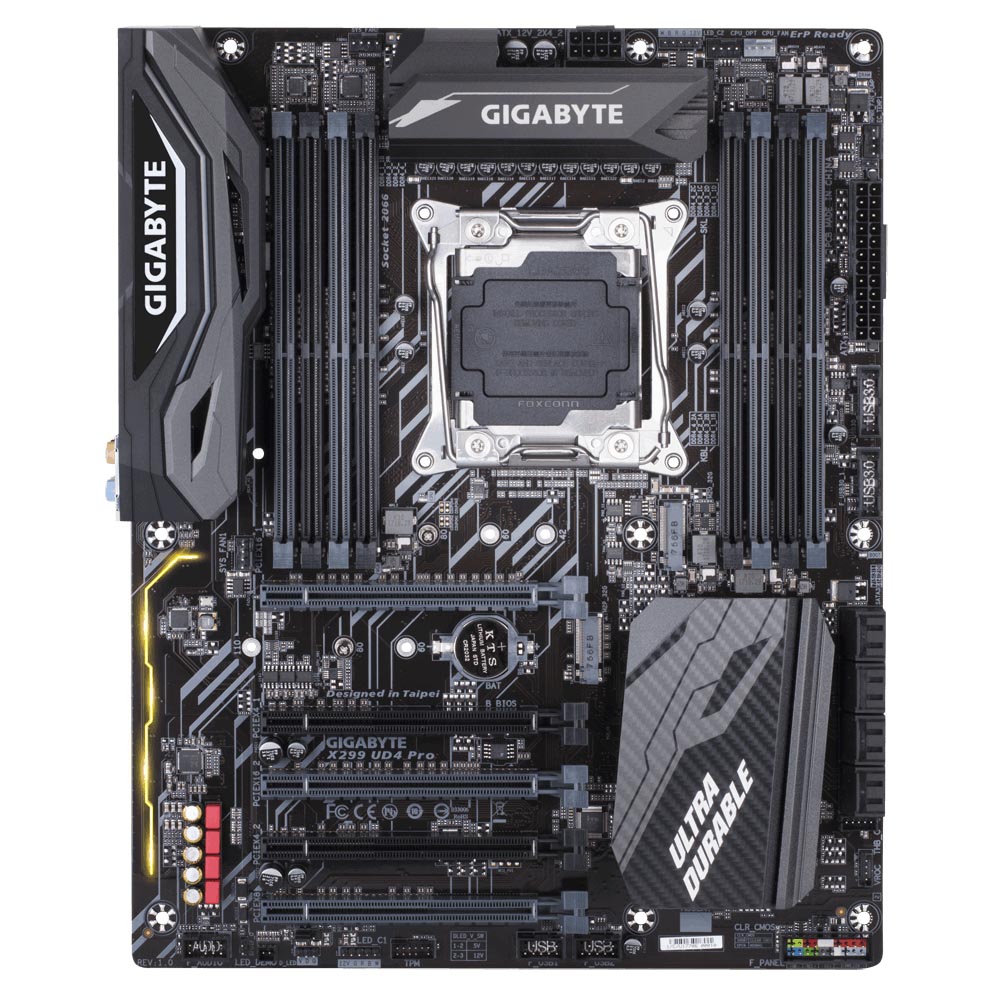

GIGABYTE X299 UD4 Pro |
| Chipset / Socket |
Intel® X299 Express Chipset / Intel Socket 2066 |
| CPU hỗ trợ |
Intel® Core™ X series processors in the LGA2066 package |
| Bộ nhớ (RAM) |
• 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory.
* Support for up to 512 GB of system memory when using Registered DIMMs.
* Supported when using a 44-lane or 28-lane CPU (6-core or above).
• 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory.
* Supported when using a 16-lane CPU (4-core).
• 4 channel memory architecture.
* Supported when using a 44-lane or 28-lane CPU (6-core or above).
Dual channel memory architecture.
Supported when using a 16-lane CPU (4-core).
• Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules
Support for non-ECC Un-buffered DIMM memory modules
Support for Registered DIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode)
Support for Extreme Memory Profile (XMP) memory modules |
| Khe cắm mở rộng |
• 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
• 1 x PCI Express x16 slot, running at x8 (PCIEX8)
• 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
* Refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration," for the installation notices for the PCI Express x16 slots.
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)
• 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G)
• 8 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
• Intel® Optane™ Memory Ready
• Intel® VROC Ready |
| Âm thanh |
• Realtek® ALC1220 codec
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out
|
| LAN / Wireless |
• Intel® GbE LAN chip (10/100/1000 Mbit) |
| Cổng kết nối |
• 1 x PS/2 keyboard/mouse port
• 2 x USB 3.1 Gen 2 Type-A ports (red)
• 6 x USB 3.1 Gen 1 ports
• 1 x RJ-45 port
• 6 x audio jacks
|
| Chuẩn kích cỡ |
• 12.0 in. x 8.9 in. (30.5 cm x 24.4 cm)
• ATX Form Factor |
| Đa GPU |
• Supports 2-Way AMD® CrossFire™ Technology* |
