Mainboard Gigabyte MW51-HP0

Mainboard Gigabyte MW51-HP0

Mã SP: SP002908           rate                  Lượt xem: 36 lượt
Mô tả sản phẩm:
Intel® Xeon® W-series Processor Family
Intel® C422 Express Chipset
Quad Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
Intel® VROC ready
ASMedia 2142 USB 3.1 Gen 3 controller
Realtek ALC1150 HD audio codec
2 x GbE LAN ports (Intel® I210)
8 x SATA III 6Gb/s ports from C422, supports SATA DOM
2 x SATA III 6Gb/s ports from Marvell® 88SE9172 controller
Ultra-Fast M.2 and U.2 with PCIe Gen3 x4 interface
4 x Full speed PCIe Gen3 x16 slots; total 7 x expansion PCIe slots

Xem thêm

Bảo hành: 36 Tháng
Kho hàng: Liên hệ
15.330.000

[Giá đã bao gồm VAT]

Đặc điểm nổi bật

Thông số kỹ thuật

  • Form Factor
    CEB
    304.8W x 266.7D (mm)
  • CPU
    Intel® Xeon® W-series Processor Family
    Processor TDP up to 140W
  • Socket
    1 x LGA 2066
    Socket R4
    Mounting pitch: square ILM (80x80mm)
  • Chipset
    Intel® C422 Express Chipset
  • Memory
    8 x DIMM slots
    DDR4 memory module supported only
    Quad channel memory architecture
    RDIMM modules up to 64GB supported
    LRDIMM modules up to 128GB supported
    1.2V modules: 2666/2400 MHz

    NOTE: When installing memory modules, make sure to begin with the first socket of each channel, such as DIMM_P0_A0, DIMM_P0_B0, DIMM_P0_C0, DIMM_P0_D0
  • LAN
    2 x GbE LAN ports (Intel® I210)
  • Video
    -
  • Audio
    Realtek® ALC1150 HD audio codec
    Supports 7.1 channel configurations
  • SAS
    -
  • SATA
    8 x SATA III 6Gb/s ports with 2 x SATA DOM supported
    2 x SATA III 6Gb/s ports (Marvell 88SE9172® controller)
  • RAID
    Intel® SATA RAID 0/1/10/5
  • Expansion Slots
    Slot_7: 1 x PCIe x16 (Gen3 x16 bus) slot from CPU0
    Slot_6: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot
    Slot_5: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with slot_6
    Slot_4: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot
    Slot_3: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with slot_4
    Slot_2: 1 x PCIe x16 (Gen3 x0 or x8 bus) slot
    Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with slot_2

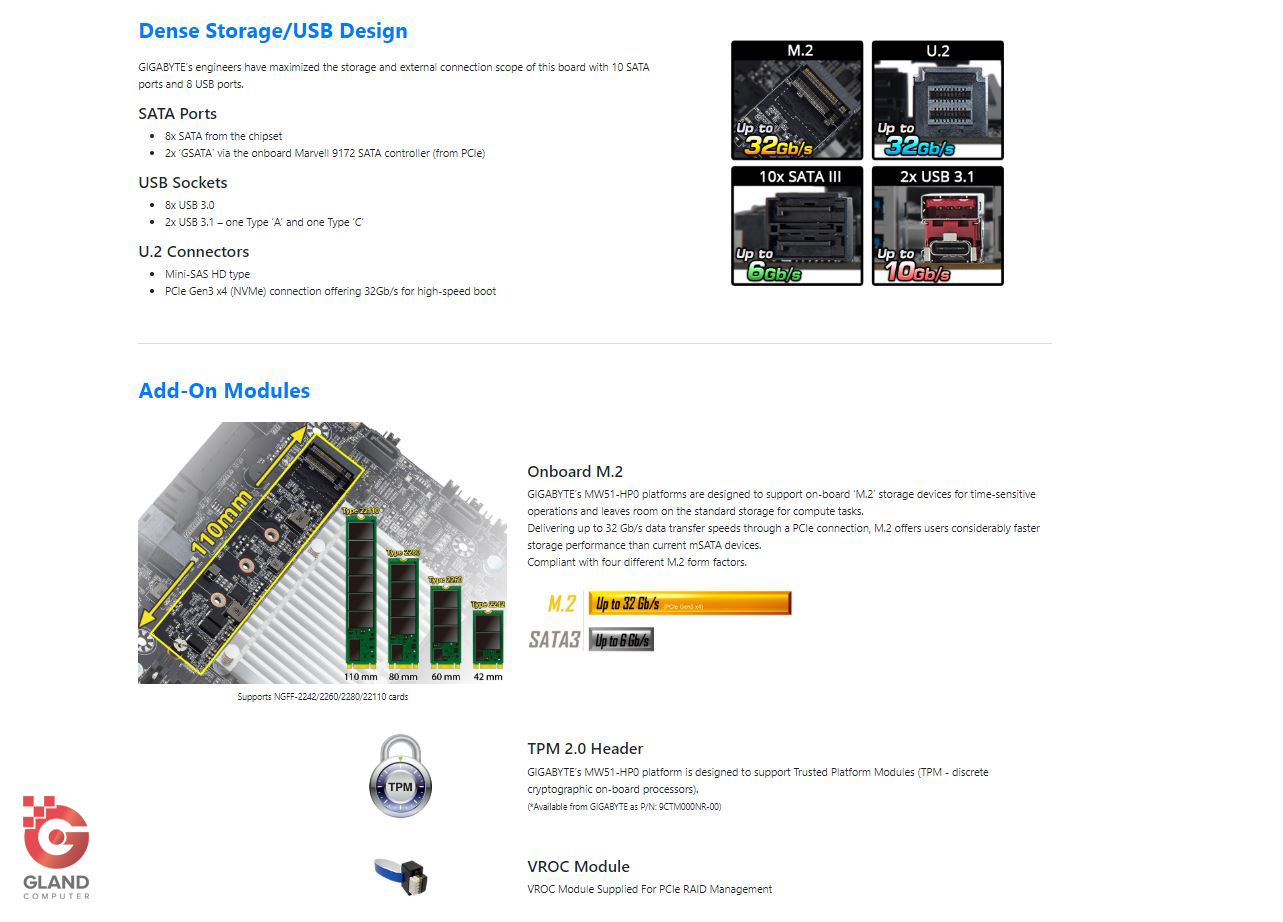

    1 x M.2 slot:
    - M-key
    - PCIe Gen3 x4
    - Supports NGFF-2242/2260/2280/22110 cards

    1 x U.2 connector:
    -Mini-SAS HD type
    - PCIe Gen3 x4

    Support NVIDIA® SLI™ and AMD® CrossFireX™ technologies
    NOTE: Graphic card requests UEFI-ready
  • Internal I/O
    1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connector for CPU and DDR 12V input
    1 x 6-pin power connector for PCIe slots 12V input
    1 x CPU fan header
    5 x System fan headers
    2 x USB 3.0 headers for 4 ports
    1 x USB 2.0 headers for 2 ports
    1 x Front audio header
    1 x PMBus connector
    1 x Clear CMOS jumper
    10 x SATA III 6Gb/s ports
    2 x SATA DOM jumpers
    2 x SATA DOM SGPIO connectors
    1 x ME update jumper
    1 x M.2 slot
    1 x U.2 connector
    1 x Front panel header
    1 x Back plane board header
    2 x COM headers
    1 x TPM header
    1 x VROC connector
    1 x BIOS recovery jumper
    1 x Buzzer

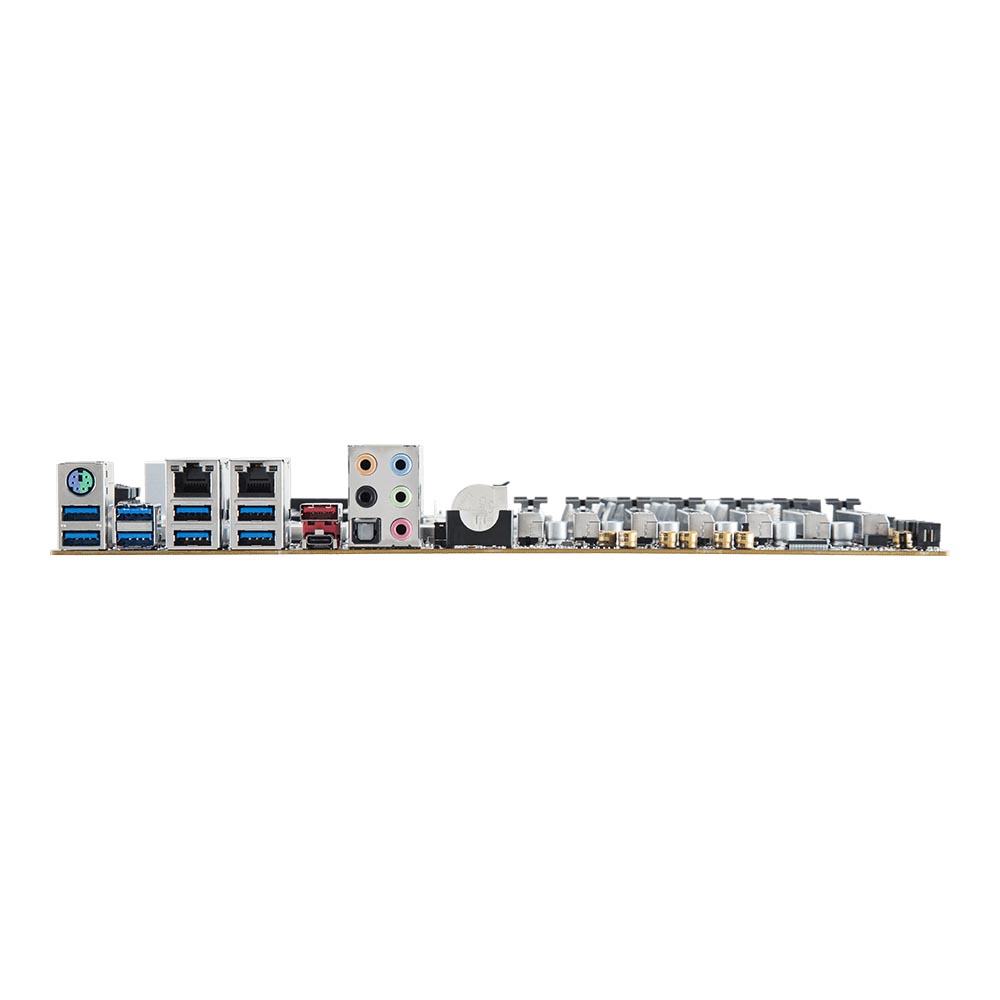

  • Rear I/O
    1 x PS/2
    8 x USB 3.0
    2 x USB 3.1 in Type-A(red) and Type-C(red) (5V/3A)
    2 x RJ45
    5 x Audio jacks
    1 x Optical S/PDIF-Out
  • TPM
    1 x TPM header with LPC interface
    Optional TPM2.0 kit: CTM000
  • OS Supported
    Windows 10 (x64)

    Based on Microsoft support policy, GIGABYTE recommends users to upgrade Skylake-based systems to Windows 10 before July 17th, 2018 to continue receiving support

    Red Hat Enterprise Linux 6.8 (x64)
    Red Hat Enterprise Linux 7.3 (x64)

    SUSE Linux Enterprise Server 11.4 (x64)
    SUSE Linux Enterprise Server 12.2 (x64)

    Ubuntu 16.04 LTS (x64)
    Ubuntu 16.10 LTS (x64)
  • Board Management
    -
  • PSU Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
  • Operating Properties
    Operating temperature: 10°C to 40°C
    Operating humidity: 8-80% (non-condensing)
    Non-operating temperature: -40°C to 60°C
    Non-operating humidity: 20%-95% (non-condensing)
  • Retail Packaging Content
    1 x MW51-HP0
    1 x Driver CD
    1 x I/O shield
    1 x Quick start guide
    8 x SATA III 6Gb/s cables (500mm)
    1 x External thermistor cable (2P/900mm)

    Single Box dimensions: 360 x 330 x 80 mm
    Carton dimension: 674 x 424 x 385 mm
    Quantity: 10 x single box with one carton
  • Bulk Packaging Content
    10 x MW51-HP0
    10 x I/O shields

    Carton dimensions: 600 x 473 x 495 mm
  • Reference Numbers
    Retail: 9MW51HP0MR-00
    Bulk: 9MW51HP0NR-00
    I/O shield: 12AIO-MW51H0-00R
    Fan-sink: 25ST0-7C9220-T1R ( in option)
Kích thước Mainboard
  • E-ATX
Số khe cắm RAM
  • 8 khe
Chipset
  • Intel C422
Socket
  • R4

Hình ảnh

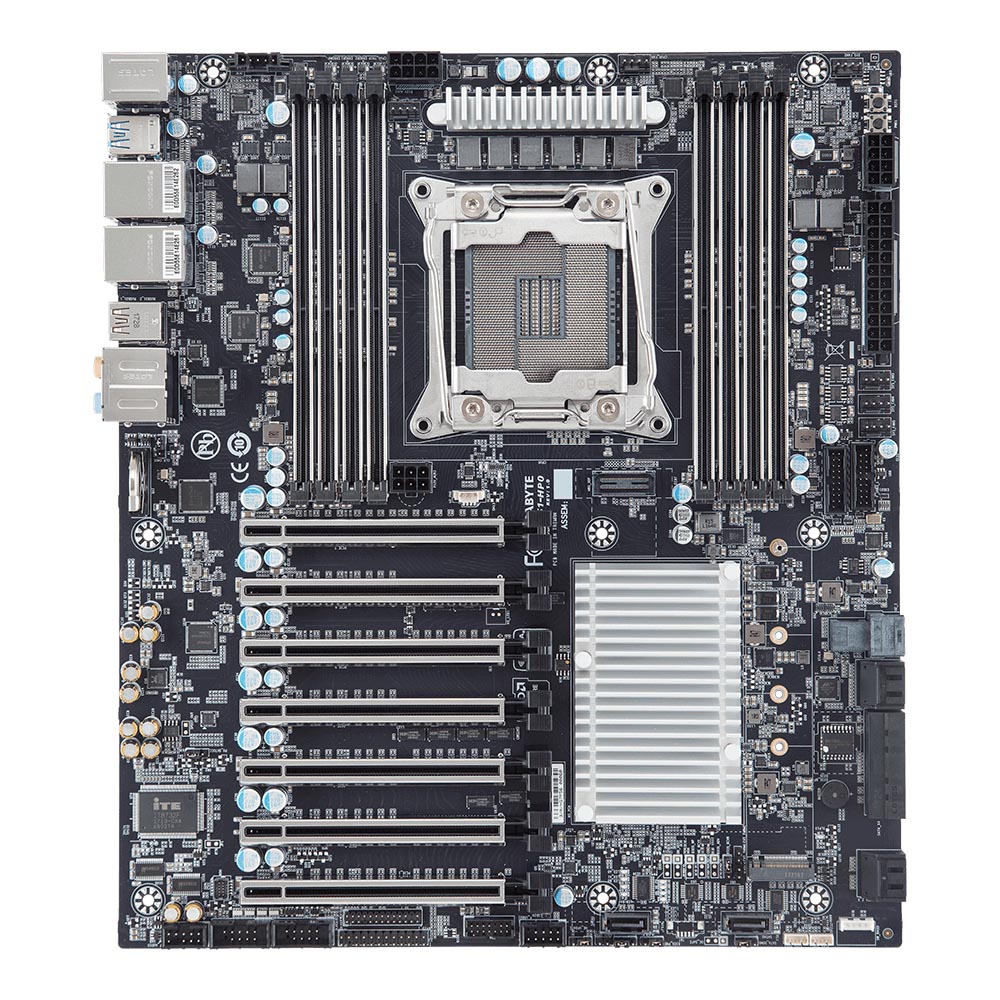

Mainboard Gigabyte MW51-HP0
Mainboard Gigabyte MW51-HP0
Mainboard Gigabyte MW51-HP0
Mainboard Gigabyte MW51-HP0
