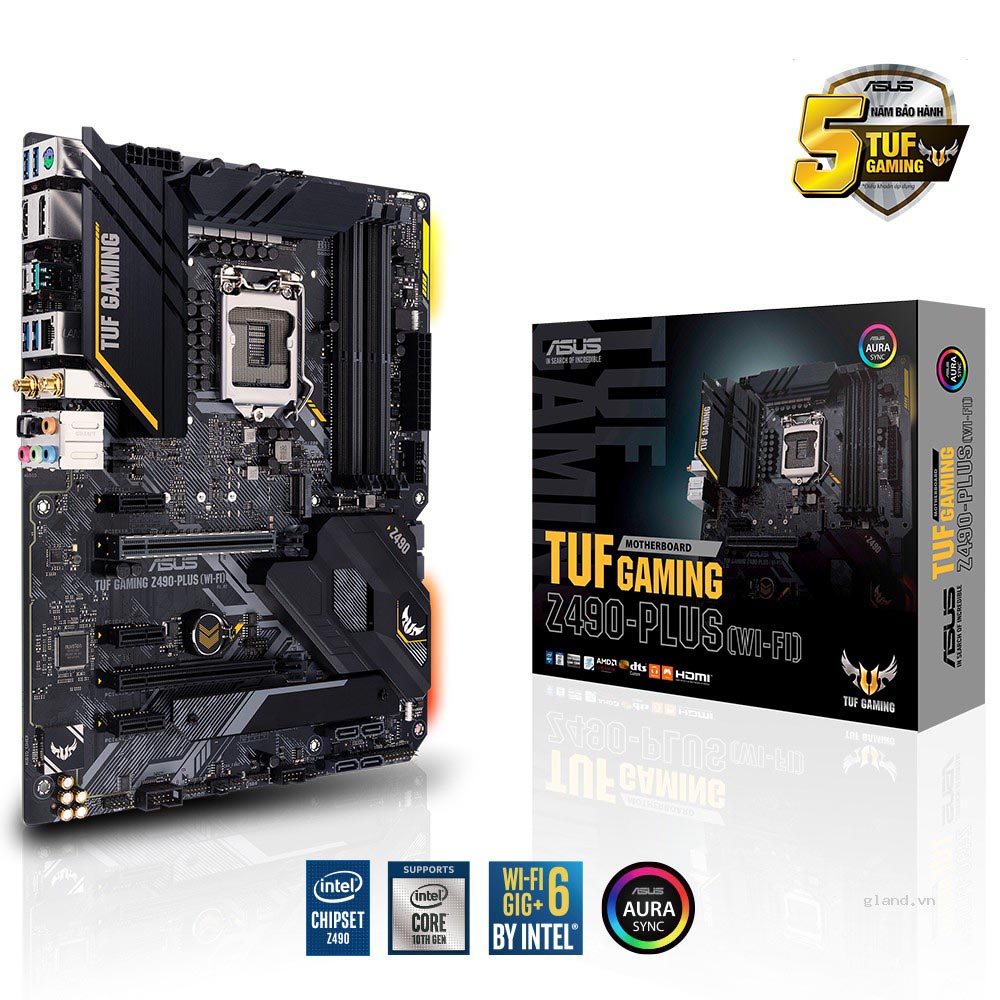

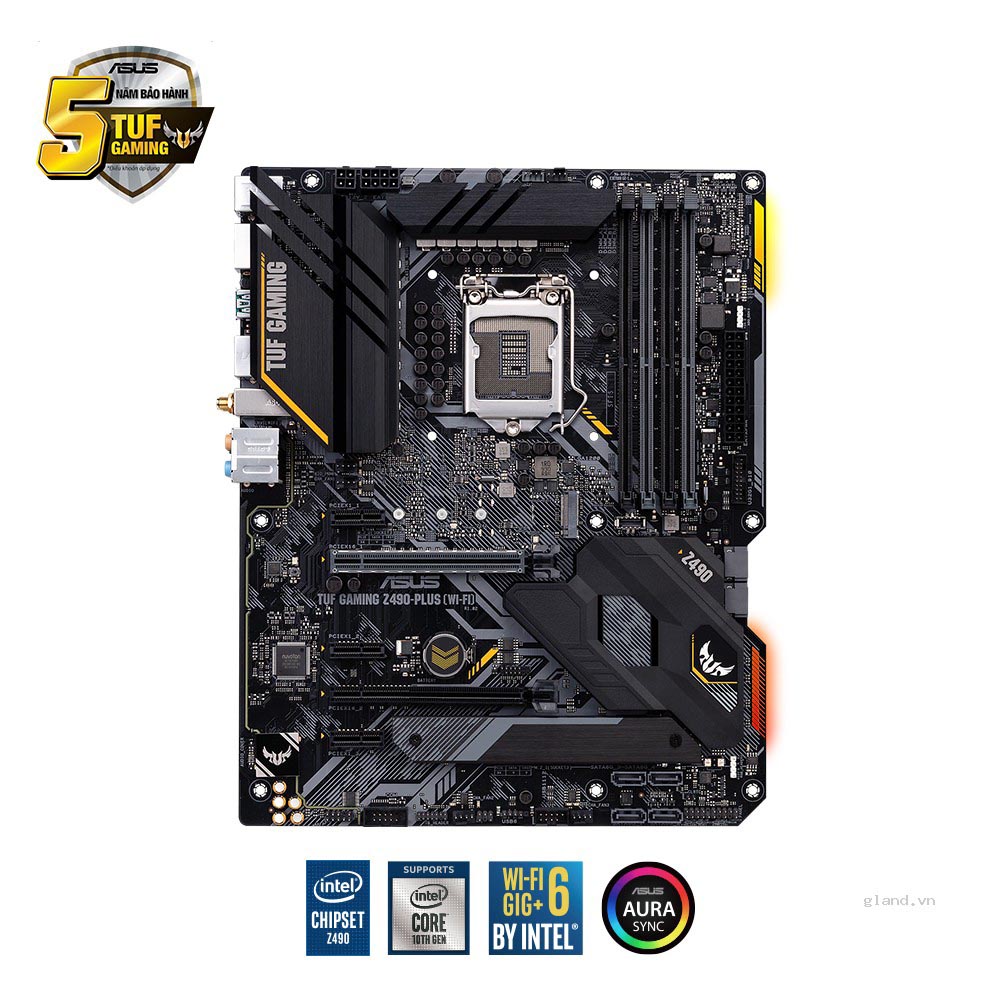

Mainboard Asus TUF Gaming Z490-Plus (Wi-fi)

(0 lượt đánh giá)     Mã hàng: SP003732      Lượt xem: 84      Tình trạng hàng: Còn hàng tại 38 Thái Hà

Gland Computer cam kết:
Hàng chính hãng
Thanh toán linh hoạt
Bảo hành tại nơi sử dụng
Giao hàng toàn quốc
Điện thoại tư vấn - đặt hàng
Mr Dũng: 0922.19.2919
Mr Sơn: 090.618.0120
Mr Tùng: 0389470449
Đặc điểm nổi bật:
Intel® Z490 (LGA 1200) ATX gaming motherboard with M.2, 14 DrMOS power stages, Intel® WiFi 6, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 ports, Thunderbolt™ 3 support, and Aura Sync RGB lighting Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors Enhanced power solution: 12+2 DrMOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability Comprehensive cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility Next-gen connectivity: Front header for USB 3.2 Gen 2 Type-C and Thunderbolt 3™ support Made for online gaming: Intel® WiFi 6, Intel® Ethernet Connection I219-V, TUF LANGuard and TurboLAN technology Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in Aura Sync RGB: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips

Bảo hành: 36 Tháng
Giá thị trường : 6.080.000đ
Giá khuyến mãi: 5.249.000 đ   (Tiết kiệm: 831.000 đ) [Giá đã có VAT]


Đánh giá & Nhận xét về Mainboard Asus TUF Gaming Z490-Plus (Wi-fi)

0/5

đánh giá & nhận xét
  • 5 sao
  • 4 sao
  • 3 sao
  • 2 sao
  • 1 sao

Bạn đã dùng sản phẩm này?

Gửi đánh giá của bạn

Gửi nhận xét của bạn

Gửi đánh giá Hủy

Hỏi và đáp (0 bình luận)

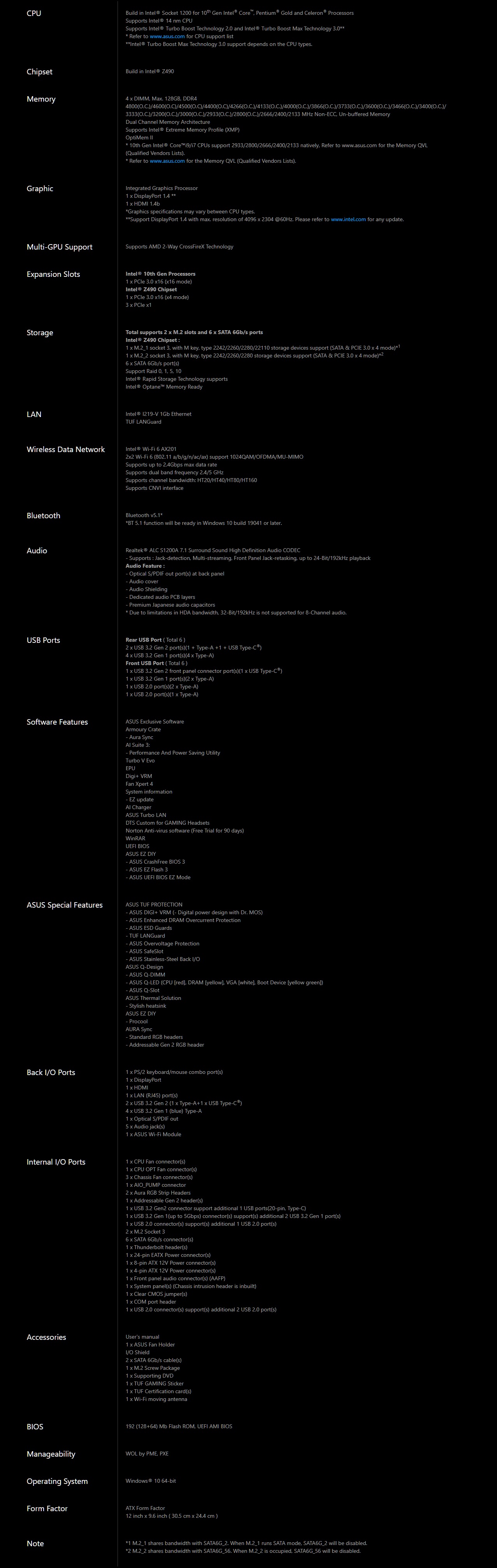

Thông số kỹ thuật
  • CPU
    Build in Intel® Socket 1200 for 10th Gen Intel® Core, Pentium® Gold and Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list
    **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset
    Build in Intel® Z490
  • Memory
    4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    * 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor
    1 x DisplayPort 1.4 **
    1 x HDMI 1.4b
    *Graphics specifications may vary between CPU types.
    **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
  • Multi-GPU Support
    Supports AMD 2-Way CrossFireX Technology
  • Expansion Slots
    Intel® 10th Gen Processors
    1 x PCIe 3.0 x16 (x16 mode)
    Intel® Z490 Chipset
    1 x PCIe 3.0 x16 (x4 mode)
    3 x PCIe x1
  • Storage
    Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
    Intel® Z490 Chipset :
    1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel® Rapid Storage Technology supports
    Intel® Optane™ Memory Ready
  • LAN
    Intel® I219-V 1Gb Ethernet
    TUF LANGuard
  • Wireless Data Network
    Intel® Wi-Fi 6 AX201
    2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
    Supports up to 2.4Gbps max data rate
    Supports dual band frequency 2.4/5 GHz
    Supports channel bandwidth: HT20/HT40/HT80/HT160
    Supports CNVI interface
  • Bluetooth
    Bluetooth v5.1*
    *BT 5.1 function will be ready in Windows 10 build 19041 or later.
  • Audio
    Realtek® ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Audio Feature :
    - Optical S/PDIF out port(s) at back panel
    - Audio cover
    - Audio Shielding
    - Dedicated audio PCB layers
    - Premium Japanese audio capacitors
    * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
  • USB Ports
    Rear USB Port ( Total 6 )
    2 x USB 3.2 Gen 2 port(s)(1 + Type-A +1 + USB Type-C®)
    4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
    Front USB Port ( Total 6 )
    1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®)
    1 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    1 x USB 2.0 port(s)(2 x Type-A)
    1 x USB 2.0 port(s)(1 x Type-A)
  • Software Features
    ASUS Exclusive Software
    Armoury Crate
    - Aura Sync
    AI Suite 3:
    - Performance And Power Saving Utility
    Turbo V Evo
    EPU
    Digi+ VRM
    Fan Xpert 4
    System information
    - EZ update
    AI Charger
    ASUS Turbo LAN
    DTS Custom for GAMING Headsets
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
  • ASUS Special Features
    ASUS TUF PROTECTION
    - ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
    - ASUS Enhanced DRAM Overcurrent Protection
    - ASUS ESD Guards
    - TUF LANGuard
    - ASUS Overvoltage Protection
    - ASUS SafeSlot
    - ASUS Stainless-Steel Back I/O
    ASUS Q-Design
    - ASUS Q-DIMM
    - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    - ASUS Q-Slot
    ASUS Thermal Solution
    - Stylish heatsink
    ASUS EZ DIY
    - Procool
    AURA Sync
    - Standard RGB headers
    - Addressable Gen 2 RGB header
  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
    4 x USB 3.2 Gen 1 (blue) Type-A
    1 x Optical S/PDIF out
    5 x Audio jack(s)
    1 x ASUS Wi-Fi Module
  • Internal I/O Ports
    1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    3 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    2 x Aura RGB Strip Headers
    1 x Addressable Gen 2 header(s)
    1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s)
    2 x M.2 Socket 3
    6 x SATA 6Gb/s connector(s)
    1 x Thunderbolt header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s) (Chassis intrusion header is inbuilt)
    1 x Clear CMOS jumper(s)
    1 x COM port header
    1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  • Accessories
    User's manual
    1 x ASUS Fan Holder
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x Supporting DVD
    1 x TUF GAMING Sticker
    1 x TUF Certification card(s)
    1 x Wi-Fi moving antenna
  • BIOS
    192 (128+64) Mb Flash ROM, UEFI AMI BIOS
  • Manageability
    WOL by PME, PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
