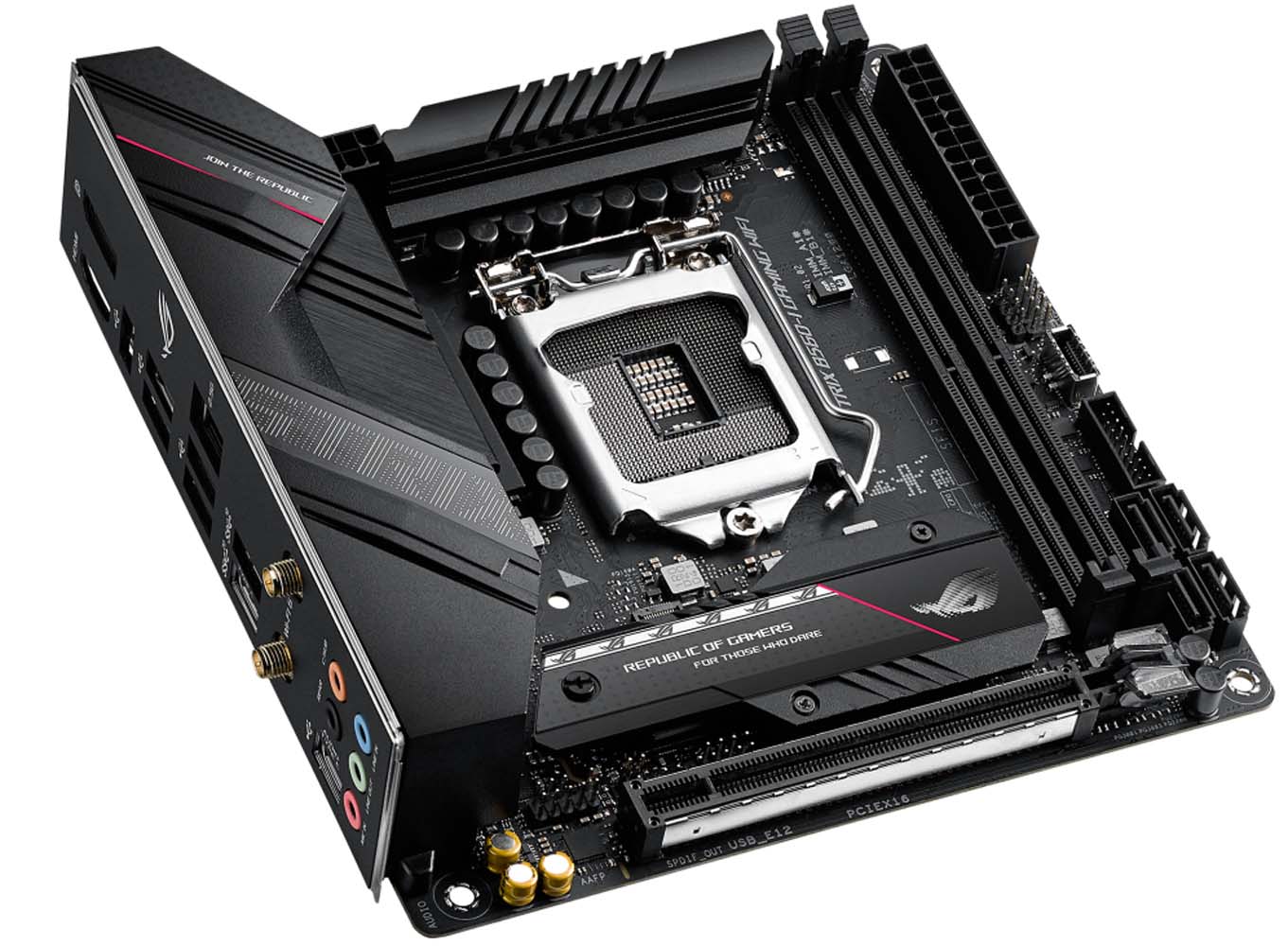

Mainboard Asus ROG STRIX B560-I GAMING WIFI

(0 lượt đánh giá)     Mã hàng: SP004558      Lượt xem: 249      Tình trạng hàng: Còn hàng tại 38 Thái Hà

Gland Computer cam kết:
Hàng chính hãng
Thanh toán linh hoạt
Bảo hành tại nơi sử dụng
Giao hàng toàn quốc
Tư vấn - đặt hàng
Mr Kiệt: 079.752.2228
Mr ...: 090.xxx.xxx
Mr Dũng: 092.219.2919
Đặc điểm nổi bật:
Intel® B560 LGA 1200 Mini-ITX motherboard with PCIe 4.0, 8 teamed power stages, WiFi 6 (802.11ax), Realtek 2.5 Gb Ethernet, Two M.2 slots with one slot having a heatsink and M.2 backplate, Two-Way AI Noise Cancelation, USB 3.2 Gen 2x2 USB Type-C®, SATA and Aura Sync RGB lighting Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™, 10th Gen Intel Core, Pentium® Gold and Celeron® processors Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors Smooth Networking: On-board Intel® WiFi 6 AX201 (802.11ax) and Realtek 2.5 Gb Ethernet with ASUS LANGuard Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort1.4 output, two M.2 slots, and USB 3.2 Gen 2x2 USB Type-C® DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield and Q-LED Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB header and Gen 2 addressable header Industry-Leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS® Sound Unbound and Sonic Studio III Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard

Bảo hành: 36 Tháng
Giá thị trường : 4.780.000đ
Giá khuyến mãi: 4.199.000 đ   (Tiết kiệm: 581.000 đ) [Giá đã có VAT]


Đánh giá & Nhận xét về Mainboard Asus ROG STRIX B560-I GAMING WIFI

0/5

đánh giá & nhận xét
  • 5 sao
  • 4 sao
  • 3 sao
  • 2 sao
  • 1 sao

Bạn đã dùng sản phẩm này?

Gửi đánh giá của bạn

Gửi nhận xét của bạn

Gửi đánh giá Hủy

Hỏi và đáp (0 bình luận)

Thông số kỹ thuật

CPU

Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

B560

Memory

Memory Channels:2DDR4 (Dual Channel)
Max Memory Size:64GB

5333(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* 10th Gen Intel® i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics

1 x DisplayPort 1.4**
1 x HDMI™ 2.0**

** Only Intel® 11th processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates

*** Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.

Expansion Slots

Intel® 11th &10th Gen Processors*

1 x PCIe 4.0/3.0 x16 slot(s)**

- Intel® 11th processors support PCIe 4.0 x16

- Intel®10th processors support PCIe 3.0 x16

Storage

Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel®11th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel® B560 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.

Ethernet

1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

Intel® Wi-Fi 6

USB

Rear USB:Total 8 ports

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port(s) (1 x Type-A)

6 x USB 2.0 port(s) (5 x Type-A, 1 x audio USB Type-C®)

Front USB:Total 5 ports

1 x USB 3.2 Gen 2 connector(s) (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports

Audio

ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

"ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A*

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*"

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Rear audio USB Type-C® port

- Premium Japanese audio capacitors

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port(s) (1 x Type-A)

6 x USB 2.0 port(s) (5 x Type-A, 1 x Audio USB Type-C®)

1 x DisplayPort

1 x HDMI™ port

1 x ASUS Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

Intrernal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin AIO Pump header(s)

1 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports

Miscellaneous

1 x AURA Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x 10-1 pin System Panel header

Special Features

Extreme Engine Digi+

- 5K Black Metallic Capacitors

ASUS Q-Design

- M.2 Q-Latch

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-DIMM

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

ASUS EZ DIY

- ProCool

- Pre-mounted I/O shield

- SafeSlot

AURA Sync

- AURA RGB header(s)

- Addressable Gen 2 RGB header(s)

Software Features

ROG Exclusive Software

- RAMCache III

- ROG CPU-Z

- GameFirst VI

- Sonic Studio III + Sonic Studio Virtual Mixer

- Sonic Radar III

- DTS® Sound Unbound

- Overwolf

- Anti-virus software

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (60 days free trial)

- AURA Creator

- AURA Sync

- Two-Way AI Noise Cancelation

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 4

- EZ update

DAEMON Tools

MyAsus

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode




BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

1 x ROG audio USB Type-C® cable

2 x SATA 6Gb/s cables

1 x ROG USB2.0 splitter cable

1 x Panel cable

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties pack

2 x M.2 SSD screw package(s)

1 x M.2 Bracket

1 x ROG key chain

1 x ROG Strix stickers

1 x ROG Strix thank you card

Installation Media

1 x Support DVD

Documentation

1 x User manual

Operating System

Windows 10 64bit

Form Factor

Mini ITX
17cm x 17cm
