Mainboard Asus ROG Dominus Extreme Integrated Wi-Fi, USB 3.1, Dual U.2 and AURA sync

Mainboard Asus ROG Dominus Extreme Integrated Wi-Fi, USB 3.1, Dual U.2 and AURA sync

Mã SP:           rate                  Lượt xem: 16 lượt
Bảo hành: 36 Tháng
Kho hàng: Liên hệ
Giá: Liên hệ
[Giá đã bao gồm VAT]

Đặc điểm nổi bật

Thông số kỹ thuật

  • CPU
    Intel® Socket 3647 for Xeon® W-3175X Processors
    Supports Intel® Virtual RAID on CPU (VROC)
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® C621
  • Memory
    Intel® Xeon® W-3175X Processor
    12 x DIMM, Max. 192GB, DDR4 4200(O.C.)/4000(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
    Six Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  • Multi-GPU Support
    Supports NVIDIA® 4-Way SLI™ Technology
    Supports NVIDIA® 3-Way SLI™ Technology
    Supports NVIDIA® 2-Way SLI™ Technology
    Supports AMD 4-Way CrossFireX Technology
    Supports AMD 3-Way CrossFireX™ Technology
    Supports AMD 2-Way CrossFireX Technology
  • Expansion Slots
    48-Lane CPU-
    Intel® Xeon® W-3175X Processor
    4 x PCIe 3.0 x16 (x16/x16/x16, x16/x8/x16/x8) *1
  • Storage
    Intel® Xeon® W-3175X Processor :
    2 x ROG DIMM.2 Module support(CPU_DIMM.2), with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*1
    2 x U.2 connector*1
    Intel® C621 Chipset :
    6 x SATA 6Gb/s port(s),
    ASMedia® SATA 6Gb/s controller :
    2 x SATA 6Gb/s port(s),
    Intel® Optane™ Memory Ready
    Intel® Virtual RAID (VROC) support for CPU RAID
  • LAN
    Aquantia AQC-107 10G
    Intel® I219-LM
    Anti-surge LANGuard
    ROG GameFirst Technology
  • Wireless Data Network
    Intel® Wireless-AC 9260
    Wi-Fi 802.11 a/b/g/n/ac
    Supports dual band frequency 2.4/5 GHz
    Supports MU-MIMO
    Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
  • Bluetooth
    Bluetooth® 5.0
  • Audio
    ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - SupremeFX Shielding Technology
    - ESS®SABRE9018Q2C DAC/AMP
    - Supports up to 32-Bit/192kHz playback *2
    Audio Feature :
    - Optical S/PDIF out port(s) at back panel
    - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
    - Sonic Radar III
    - Sonic Studio III + Sonic Studio Link
  • USB Ports
    Intel® C621 Chipset :
    8 x USB 3.1 Gen 1 port(s) (8 at back panel, +blue)
    Intel® C621 Chipset :
    4 x USB 2.0 port(s) (4 at mid-board)
    ASMedia® USB 3.1 Gen 2 controller :
    1 x USB 3.1 Gen 2 front panel connector port(s)
    ASMedia® USB 3.1 Gen 2 controller :
    4 x USB 3.1 Gen 2 port(s) (4 at back panel, +black+red, 2 x Type-A+2 x Type-C)
    ASMedia® USB 3.1 Gen 1 controller :
    4 x USB 3.1 Gen 1 port(s) (4 at mid-board)
  • ROG Exclusive Features
    Clear CMOS button
    Extreme Engine Digi+ :
    - MicroFine Alloy Chokes
    - 10K Black Metallic Capacitors
    ROG Extreme OC kit :
    - ReTry button
    - Safe Boot button
    - Start button
    - Reset button
    - Slow Mode
    - LN2 Mode
    - PCIe x16 Lane Switch
    ProbeIt
    USB BIOS Flashback®
    ROG Patented Pre-mounted I/O Shield
    ROG Exclusive Software
    - RAMCache III
    - RAMDisk
    - CPU-Z
    - GameFirst V
    - Sonic Studio III + Sonic Studio Link
    - Sonic Radar III
    - Overwolf
    ROG DIMM.2 module with heatsink
    ROG Aluminum heatsink cover
  • Special Features
    Fan Xpert4
    - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
    LiveDash OLED 1.77 ”
    AURA :
    - Aura Lighting Control
    - Aura RGB Strip Headers
    - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
    - Aura Addressable Strip Header(s)
    ASUS Exclusive Features :
    - USB BIOS Flashback®
    - AI Suite 3
    - ASUS CrashFree BIOS 3
    - ASUS NODE: hardware control interface
    - ASUS EZ Flash 3
    - ASUS C.P.R.(CPU Parameter Recall)
    - BUPDATER
    - BIOS Flashback® Button
    - Clear CMOS Button
    ASUS Q-Design :
    - ASUS Q-Code
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector

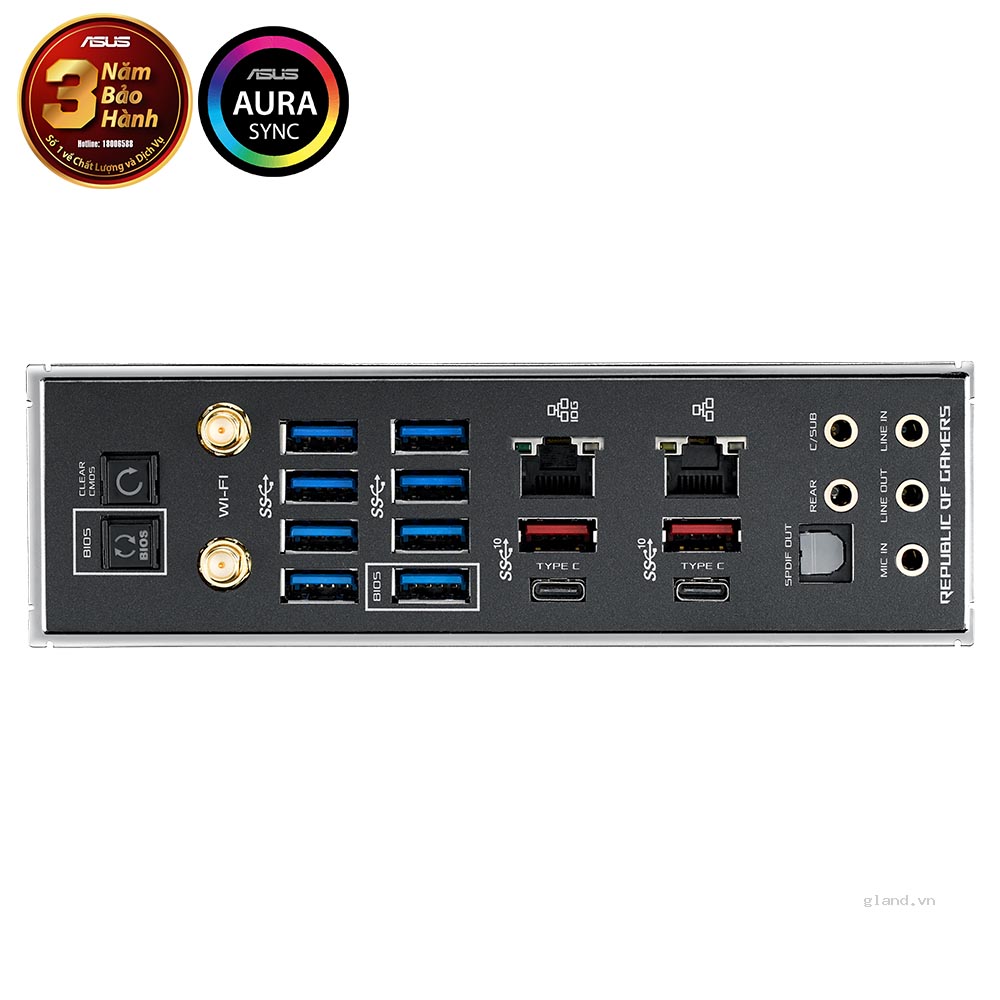

  • Back I/O Ports
    2 x USB 3.1 Gen 2 (black)Type-C,
    2 x USB 3.1 Gen 2 (red)Type-A
    8 x USB 3.1 Gen 1 (blue)
    1 x Optical S/PDIF out
    1 x Clear CMOS button(s)
    1 x USB BIOS Flashback® Button(s)
    1 x ASUS Wi-Fi Module
    5 x LED-illuminated audio jacks
    1 x Aquantia AQC-107 10G LAN port
    Anti-surge LAN (RJ45) port
  • Internal I/O Ports
    2 x Aura Addressable Strip Header(s)
    2 x Aura RGB Strip Headers
    2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    8 x SATA 6Gb/s connector(s)
    1 x VROC_HW_Key
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x CPU OPT Fan connector(s) (1 x 4 -pin)
    2 x LED connectors (Back I/O cover, PCH, OLED)
    2 x Chassis Fan connector(s) (2 x 4 -pin)
    1 x PCH_FAN (1 x 3 -pin)
    2 x HS_FAN (2 x 4 -pin)
    2 x W_PUMP+ connector (2 x 4 -pin)
    1 x WB_SENSOR (1 x 9 -pin)
    1 x Thunderbolt header(s)
    2 x 6-pin EATX 12 V Power connector
    2 x 24-pin EATX Power connector(s)
    4 x 8-pin EATX 12V Power connectors
    1 x 6-pin EZ_PLUG Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Slow Mode switch(es)
    13 x ProbeIt Measurement Points
    1 x BIOS Switch button(s)
    1 x Node Connector(s)
    1 x LN2 Mode jumper(s)
    1 x Safe Boot button
    1 x ReTry button
    1 x 14-1 pin TPM connector
    2 x U.2 connector
    1 x System panel connector
    1 x PCIe x16 lane switch
    2 x T_Sensor Connector
    1 x W_IN header
    1 x W_OUT header
    1 x W_FLOW header
    1 x USB 3.1 Gen 2 front panel connector
    1 x Speaker connector
    2 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
    1 x PAUSE Switch
    2 x RSVD Switch
    8 x Radiator Fan Headers
    1 x Start button
    1 x Reset button
    1 x Q-Code
  • Accessories
    User's manual
    1 x ROG logo plate sticker
    4 x M.2 Screw Package
    1 x CPU installation tool
    1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
    1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header)
    1 x Fan Extension Card II power cable
    1 x Fan Extension Card II NODE connector cable
    1 x Fan Extension Card II screw package
    1 x SLI HB BRIDGE(2-WAY-L)
    1 x Q-Connector
    1 x ROG Logo Sticker(s)
    1 x Extension Cable for RGB strips (80 cm)
    1 x Extension cable for Addressable LED
    3 x Thermistor cable(s)
    1 x USB drive with utilities and drivers
    1 x ROG coaster(s)
    8 x ROG weave SATA 6G cable
    2 x ROG DIMM.2 with heatsink
    2 x M.2 Pad for ROG DIMM.2
  • BIOS
    2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, Secure Erase, User Profile, F11 EZ RAID Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, , F4 AURA ON/OFF and F9 Search
  • Manageability
    WOL, WOR, PXE
  • Support Disc
    Drivers
    EZ Update
    Anti-virus software (OEM version)
    ASUS Utilities
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    EEB Form Factor
    14 inch x 14 inch ( 35.5 cm x 35.5 cm )
Socket
  • 3647
Số khe cắm RAM
  • 12 khe
Kích thước Mainboard
  • EEB
Chipset
  • Intel C621
