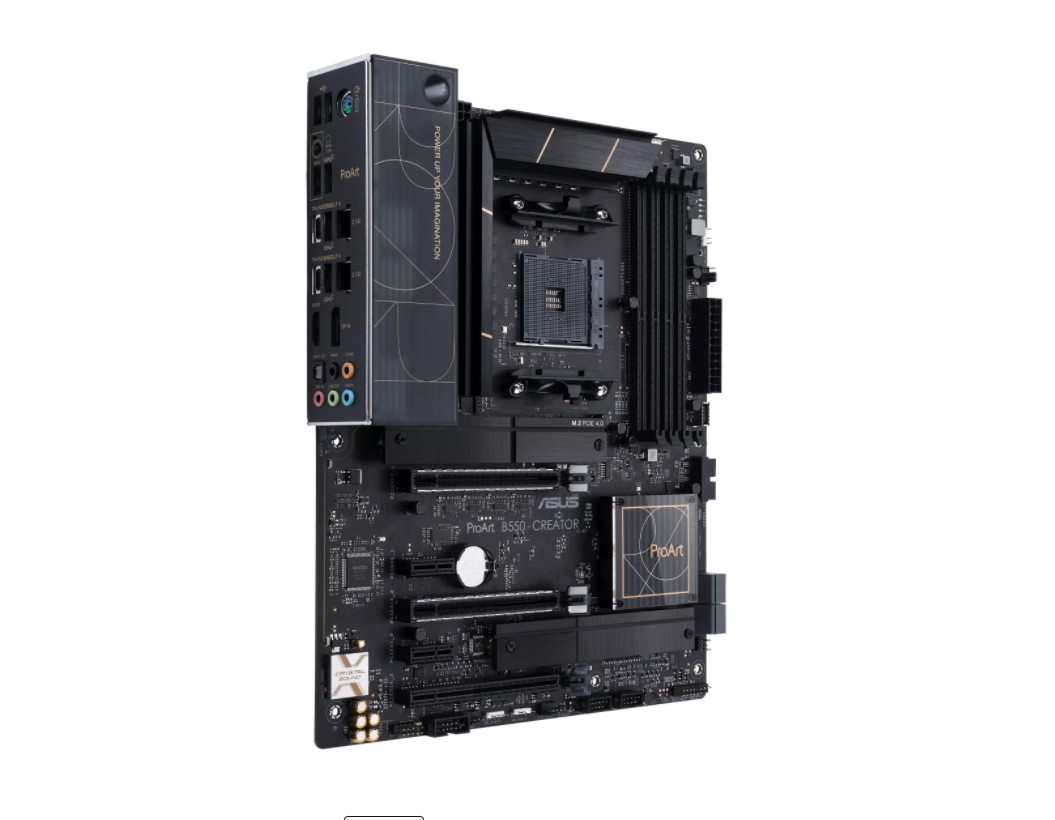

Mainboard ASUS ProArt B550-CREATOR

(0 lượt đánh giá)     Mã hàng: SP005342      Lượt xem: 130      Tình trạng hàng: Còn hàng tại 38 Thái Hà

Gland Computer cam kết:
Hàng chính hãng
Thanh toán linh hoạt
Bảo hành tại nơi sử dụng
Giao hàng toàn quốc
Tư vấn - đặt hàng
Mrs Trang: 098.499.1534
Mr Kiệt: 079.752.2228
Mr Dũng: 092.219.2919
Đặc điểm nổi bật:
AMD B550 Ryzen AM4 ATX motherboard for content creators features PCIe® 4.0, dual Thunderbolt™ 4 Type-C ports, dual Intel® 2.5Gb Ethernet, dual M.2 with heatsinks, USB 3.2 Gen 2 and advanced security management AM4 socket: Ready for AMD Ryzen™ 5000 Series / 4000 G-Series / 3000 Series desktop processors Powerful I/O: Dual Thunderbolt 4 Type-C ports, dual 2.5G onboard Ethernet, USB 3.2 Gen 2 plus HDMI™ 2.1 and DisplayPort™ 1.2 output Unthrottled Performance: PCI 4.0-ready, 12+2 power stages with high-quality alloy chokes and durable capacitors Advanced Security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express ProArt Gives You More: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control Trusted Stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot for enhanced durability

Bảo hành: 36 Tháng
Giá thị trường : 6.389.000đ
Giá khuyến mãi: 5.999.000 đ   (Tiết kiệm: 390.000 đ) [Giá đã có VAT]


Đánh giá & Nhận xét về Mainboard ASUS ProArt B550-CREATOR

0/5

đánh giá & nhận xét
  • 5 sao
  • 4 sao
  • 3 sao
  • 2 sao
  • 1 sao

Bạn đã dùng sản phẩm này?

Gửi đánh giá của bạn

Gửi nhận xét của bạn

Gửi đánh giá Hủy

Hỏi và đáp (0 bình luận)

Thông số kỹ thuật

CPU

AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

* Refer to www.asus.com for CPU support list.

Chipset

AMD B550 Chipset

Memory

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

DDR4

4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *"

AMD RyzenTM 4000 G-Series Processors

DDR4

5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory"

OptiMem II

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics

1 x HDMI™ 2.1(4K@60HZ)



2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.2/1.4 and Thunderbolt™ video outputs *

* Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. Graphics specifications may vary between CPU types.

** VGA resolution support depends on processors' or graphic cards' resolution. For more details about the video input and output settings please refer to the user manual.

Expansion Slots

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

2 x PCIe 4.0 x16 (x16 or dual x8)*

AMD RyzenTM 4000 G-Series Processor

2 x PCIe 3.0 x16 (x16 or dual x8)*

AMD B550 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)**

2 x PCIe 3.0 x1 slots***

* Support PCIe bandwidth bifurcation for RAID on CPU function.

** PCIe 3.0 x4 will be switched from Thunderbolt™ 4 to PCIEX16_3 if the slot is populated; by then Thunderbolt™ 4 will have no output

*** These PCIe x1 slots share bandwidth with M.2_2, which runs at PCIe 3.0 x4 by default. You may go to BIOS setting to set M.2_2 to PCIe 3.0 x4 or x2 at will

Storage

Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

AMD RyzenTM 4000 G-Series Processor :

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

AMD B550 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Supports RAID 0, 1, 10

Ethernet

2 x Intel® I225-V 2.5Gb Ethernet

ASUS LANGuard

USB

Rear USB:Total 8 ports

2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support

4 x USB 3.2 Gen 2 port(s) (4 x Type-A)

2 x USB 2.0 port(s) (2 x Type-A)
Front USB:Total 7 ports

1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports



Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*"

Audio Features

- Power pre-regulator reduces power input noise to ensure consistent performance

- Rear optical S/PDIF out port

- Premium Japanese audio capacitors

- Dedicated audio PCB layers

- Audio cover

- Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.



Back Panel I/O Ports

2 x Thunderbolt™ 4 USB Type-C® port(s)

4 x USB 3.2 Gen 2 port(s) (4 x Type-A)

2 x USB 2.0 port(s) (2 x Type-A)

1 x DisplayPort (Input only)

1 x HDMI™ port

2 x Intel® I225-V 2.5Gb Ethernet ports

5 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

4 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 header(s)

2 x AURA RGB header(s)

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 20-5 pin System Panel header

1 x Thermal Sensor header

Special Features

Extreme Engine Digi+

- 5K Black Metallic Capacitors

ASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design with Dr. MOS)

- Enhanced DRAM Overcurrent Protection

- ESD Guards

- LANGuard

- Overvoltage Protection

- SafeSlot Core

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Latch

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Box Headers

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

AURA Sync

- AURA RGB header(s)

- Addressable Gen 2 RGB header(s)

Bespoke Motherboard Design & Business Focused Features

- 24/7 Reliability

- Overcurrent Protection

Software Features

ASUS Exclusive Software

Armoury Crate

- AURA Creator

- AURA Sync

- Two-Way AI Noise Cancelation

AI Suite 3

- 5-Way Optimization by Dual Intelligent Processors 5

TPU

EPU

Digi+ VRM

Fan Xpert 4

Turbo app

- EZ update

ASUS CPU-Z

IT Management software supported

- ASUS Control Center Express(ACCE)

ProArt Creator Hub

AI Charger

DAEMON Tools

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

FlexKey

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Accessories

Cables

2 x SATA 6Gb/s cables

1 x DP to DP cable for Thunderbolt™ 4

Miscellaneous

1 x M.2 Rubber Package(s)

Installation Media

1 x Support DVD

Documentation

1 x ACC Express Activation Key Card

1 x User manual

Operating System

Windows 10 64bit

Form Factor

ATX
30.5cm x 24.4cm
