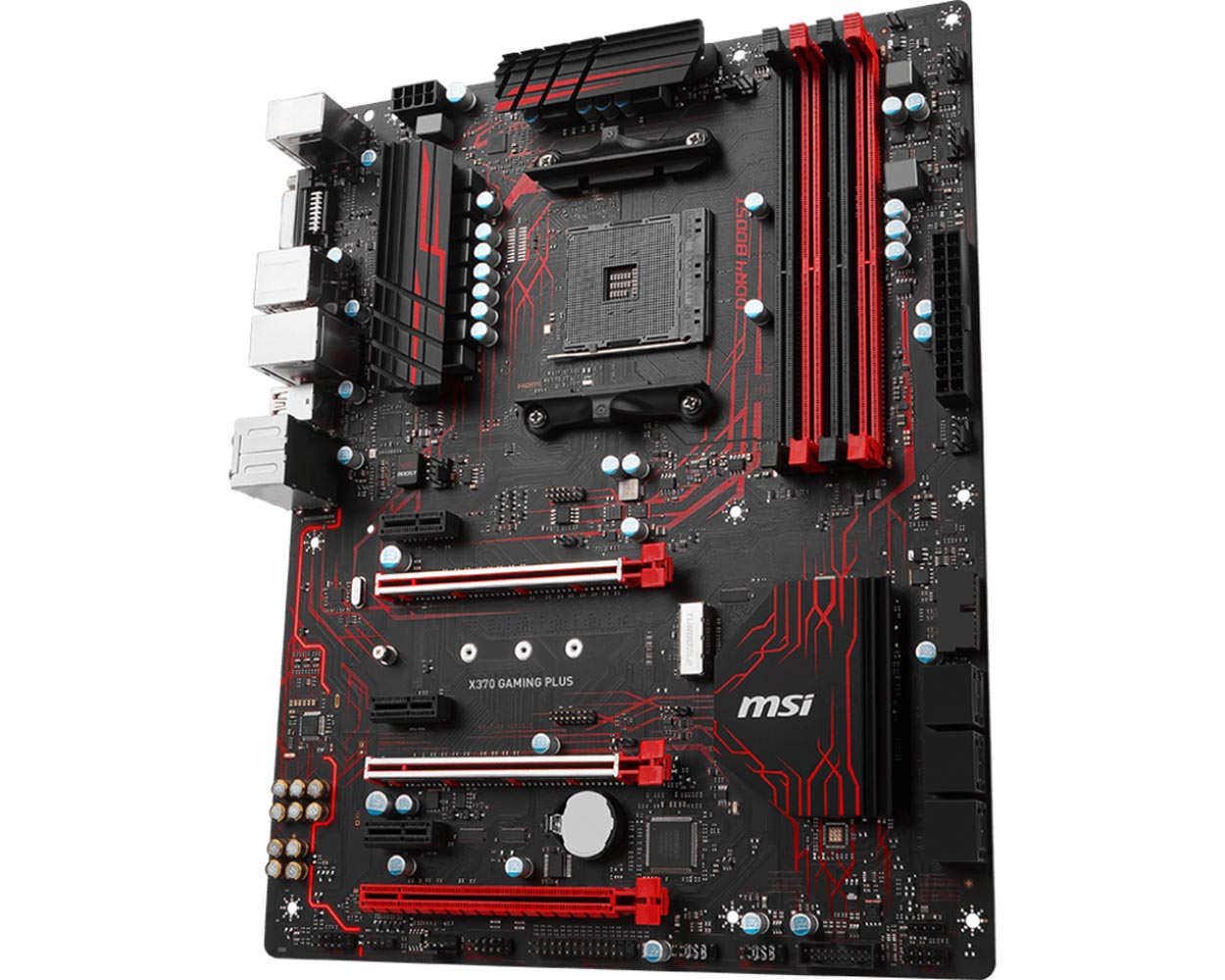

Bo Mạch Chủ MSI X370 GAMING PLUS

Thông tin sản phẩm

Mã hàng: X370 GAMING PLUS
Bảo hành: 36
Hãng sản xuất: MSI

Mô tả sản phẩm

Supports AMD® RYZEN Series processors and 7th Gen A-series / AthlonTM Processors for socket AM4
Supports DDR4-3200+(OC) Memory
DDR4 Boost: Give your DDR4 memory a performance boost
VR Ready and VR Boost: Best virtual reality game experience without latency, reduces motion sickness
Lightning Fast Game experience: Turbo M.2, Lightning USB 3.1 Gen2
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
GAMING LAN with LAN Protect: The best online gaming experience with lowest latency and bandwidth management
Military Class 4, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
MULTI-GPU: With Steel Armor PCI-E slots. Supports NVIDIA SLI™ & AMD Crossfire™
Mystic Light Sync: Synchronize other RGB solutions with your gaming rig and control all LEDs in one click
In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
EZ Debug LED: Easiest way to troubleshoot

Giá bán:4.268.000VNĐ

Chi tiết sản phẩm

CPU

• Supports AMD® RYZEN series processors and 7th Gen A-series/ Athlon™ processors for Socket AM4
* This function will be supported depend on the CPU.

Chipset

• AMD®X370 Chipset

Main Memory

• 4 x DDR4 memory slots, support up to 64GB
– Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz*
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
* 7th Gen A-series/ Athlon ™ processors support up to DDR 2400 MHz only. Please refer www.msi.com for more information on compatible memory.

Slots

• 2 x PCIe 3.0 x16 slots (PCIE_2, PCIE_4)
– RYZEN series processors support x16/x0, x8/x8 mode
– 7th Gen A-series/ Athlon™ processors support x8/x0 mode
• 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)*
• 3 x PCIe 2.0 x1 slots
* PCI_E6 slot will be PCIe 2.0 x1 when installing device in any PCIe x1 slot.


Onboard Graphics

• 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz*
• 1 x HDMI™ port, supports a maximum resolution of 2560×1600@60Hz**
* Only support when using a 7th Gen A-series/ Athlon™ processor.
* Maximum shared memory of 2048 MB


Multi-GPU

• RYZEN series processor
– Supports 2-Way NVIDIA® SLI™ Technology
– Supports 3-Way AMD® CrossFire™ Technology
• 7th Gen A-series/ Athlon™ processor
– Supports 2-Way AMD® CrossFire™ Technology

Storage

AMD®X370 Chipset
• 6 x SATA 6Gb/s ports
• 1 x M.2 slots (Key M)
– Supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
• Supports RAID 0, RAID 1 and RAID 10

USB

ASMedia® ASM2142 Chipset
– 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
– 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel

AMD® X370 Chipset
– 4 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
– 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

AMD® CPU
– 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel

Audio

• Realtek® ALC892 Codec
– 7.1-Channel High Definition Audio

LAN

• 1 x Realtek® 8111H Gigabit LAN controller

Internal I/O Connectors

– 1 x 24-pin ATX 12V power connector
– 1 x 8-pin ATX 12V power connector
– 6 x SATA 6Gb/s connectors
– 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
– 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
– 1 x 4-pin CPU fan connector
– 1 x 4-pin PUMP fan connector (supports up to 2A)
– 4 x 4-pin system fan connectors
– 1 x RGB LED connector
– 1 x TPM module connector
– 1 x Serial port connector
– 1 x Parallel port connector
– 1 x Front panel audio connector
– 2 x System panel connectors
– 1 x Chassis Intrusion connector
– 1 x Clear CMOS jumper

Back Panel I/O Ports

– 1 x PS/2 keyboard/ mouse combo port
– 2 x USB 2.0 Type-A ports
– 1 x DVI-D port
– 1 x HDMI™ 1.4 port
– 1 x LAN (RJ45) port
– 4 x USB 3.1 Gen1 Type-A ports
– 1 x USB 3.1 Gen2 Type-A port
– 1 x USB 3.1 Gen2 Type-C port
– 6 x audio jacks

Dimension

• 12 in. x 9.6 in. (30.4 cm x 24.3 cm)
• ATX Form Factor

Mounting

• 9 mounting holes
